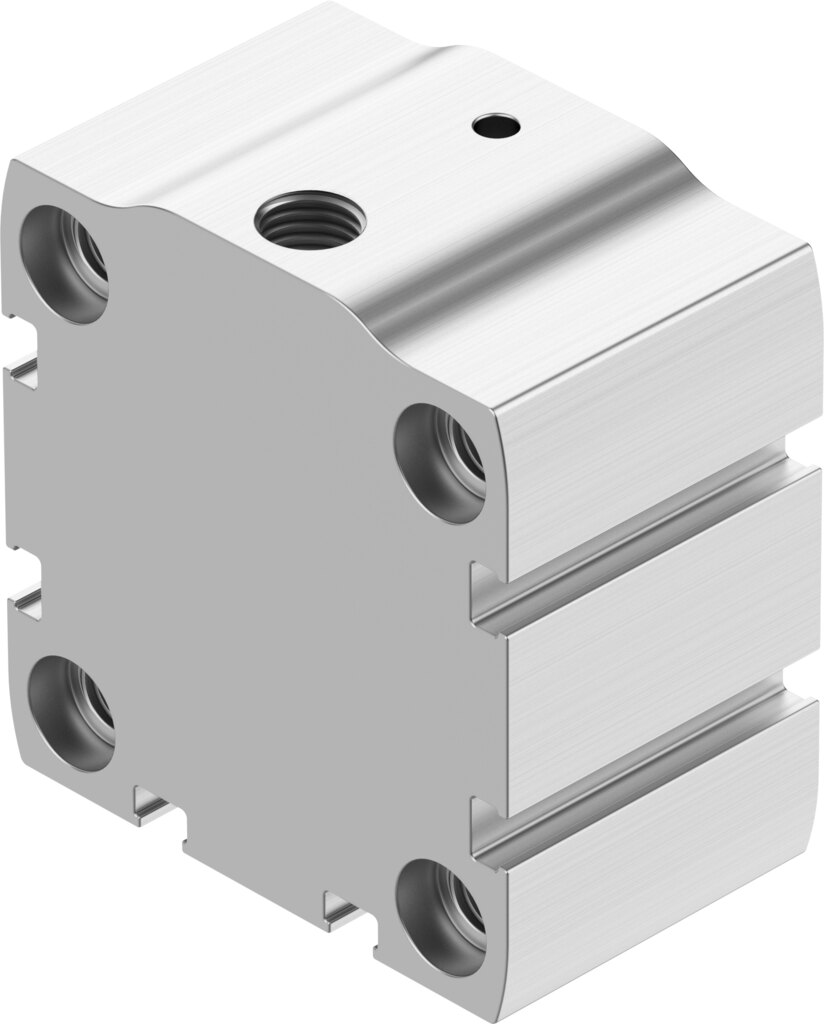

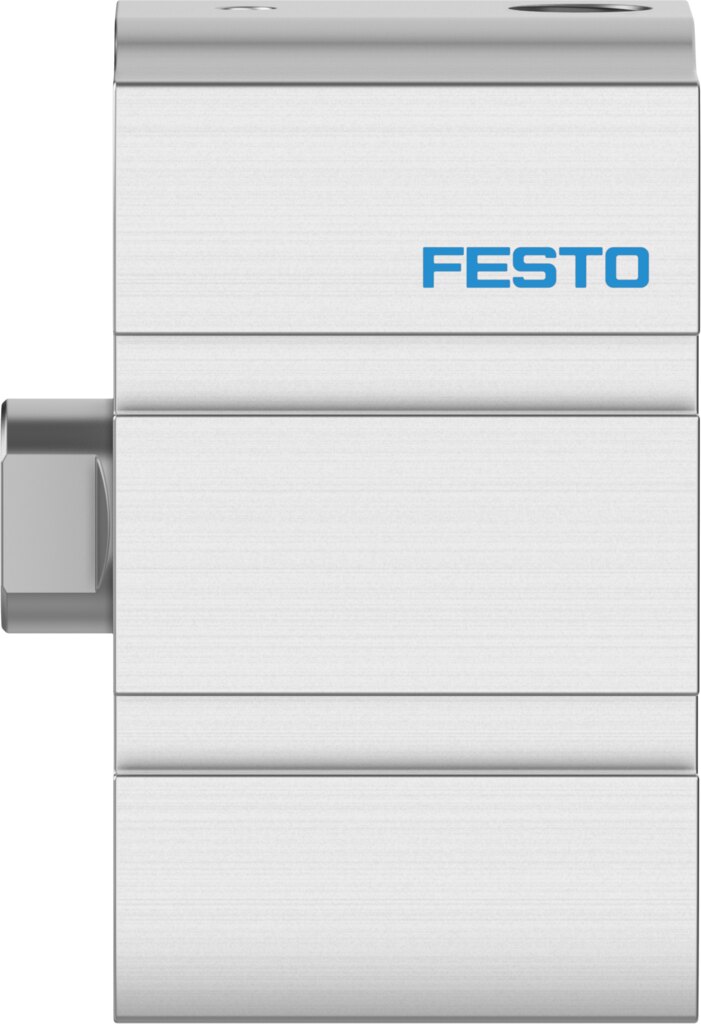

Compact cylinder single-acting pushing Ø 50 mm stroke 10 mm AEN-S-50-10-I-P - Festo 5137801

50 mm piston, 10 mm stroke, 1,178 N advance force at 6 bar: the single-acting pushing compact cylinder AEN-S-50-10-I-P fits fixtures where a standard cylinder is too long.

Benefits at a glance

• Single-acting: one air line is enough for 1,178 N theoretical force at 6 bar
• Quiet stop: elastic cushioning at both ends absorbs 0.6 J in the end positions
• Flexible use: operating pressure 1 to 10 bar, any mounting position
• Cleanroom-ready: class 5 according to ISO 14644-1, measured to ISO 14644-14
• Additional PTFE piston guide: for even running of the piston
• Corrosion resistance class CRC 1: ambient temperature 0 to 80 °C, stainless piston rod

Applications

The 50 mm cylinder is used as a plunger, ejector or clamping element in assembly and packaging. Since only one direction uses compressed air, the AEN-S-50-10-I-P needs one valve port less. Mount the AEN-S-50-10-I-P via through-holes or the female threads in the housing. For mass calculations Festo states 310 g basic weight at 0 mm stroke plus 63 g per 10 mm stroke.
