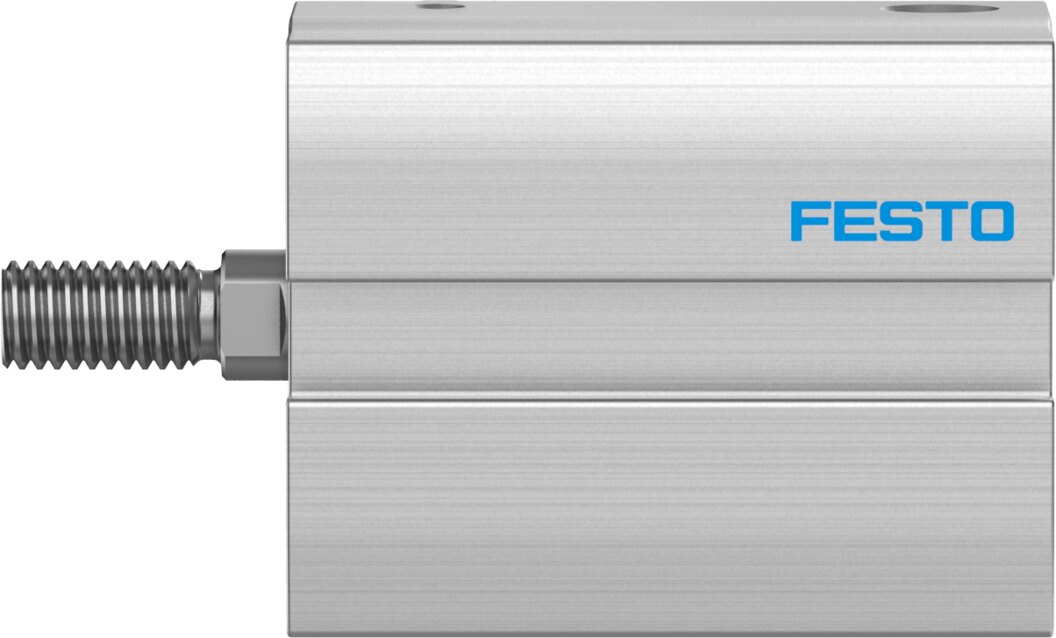

Compact cylinder single-acting pushing Ø 12 mm stroke 10 mm AEN-S-12-10-A-P - Festo 8092149

12 mm piston, 10 mm stroke, 60 N advance force at 6 bar: the single-acting pushing compact cylinder AEN-S-12-10-A-P fits fixtures where a standard cylinder is too long.

Benefits at a glance

• Air only for the working stroke: theoretical 60 N advance force at 6 bar
• Quiet stop: elastic cushioning at both ends absorbs 0.022 J in the end positions
• Pressure range: 1 to 10 bar operating pressure, any mounting position
• Corrosion resistance class CRC 1: ambient temperature 0 to 80 °C, stainless piston rod
• LABS (PWIS) conformity: VDMA24364-B2-L

Applications

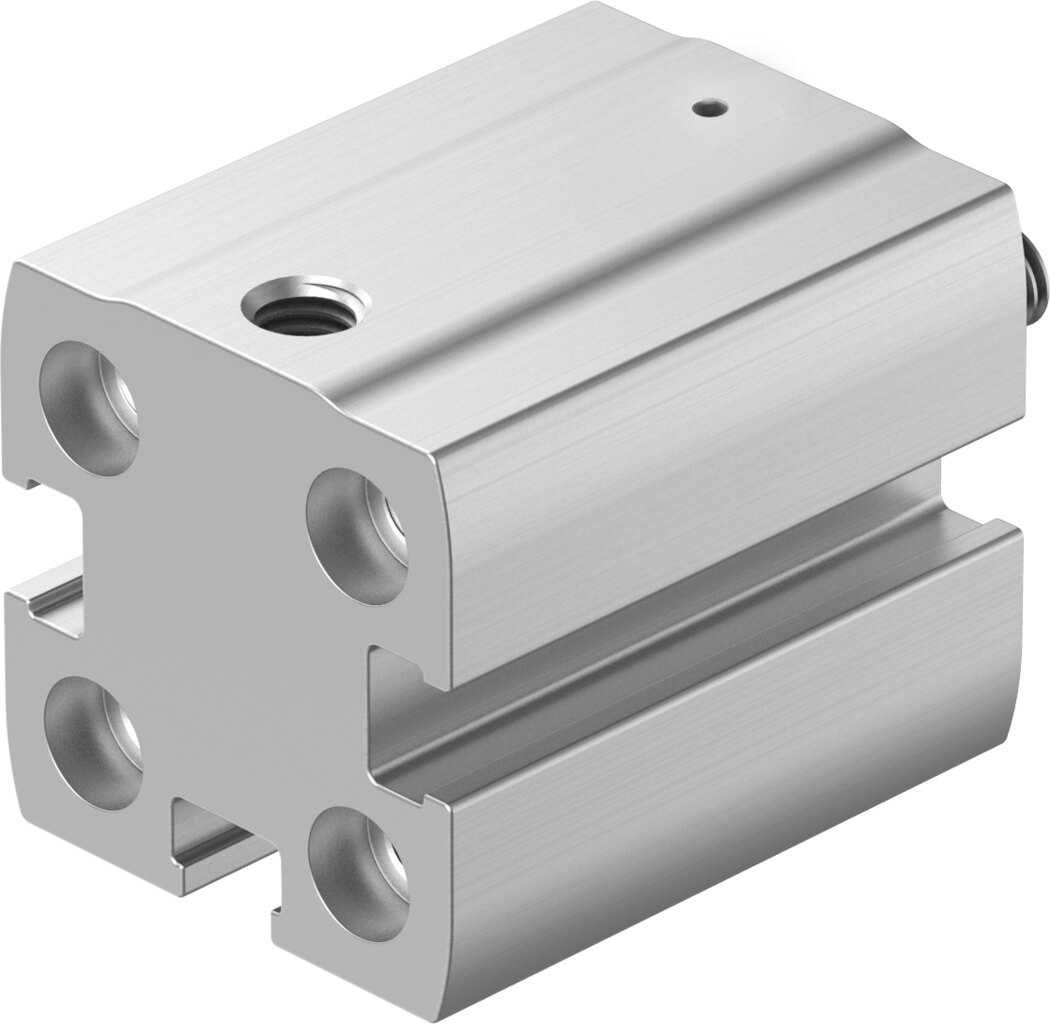

The pushing AEN-S-12-10-A-P suits ejecting, stopping, marking and clamping where force is needed in one direction only. With only one air line, tubing and valve technology on the AEN-S-12-10-A-P stay lean. Through-holes and female threads are available for mounting the 12 mm cylinder. For mass calculations Festo states 26 g basic weight at 0 mm stroke plus 15 g per 10 mm stroke.
