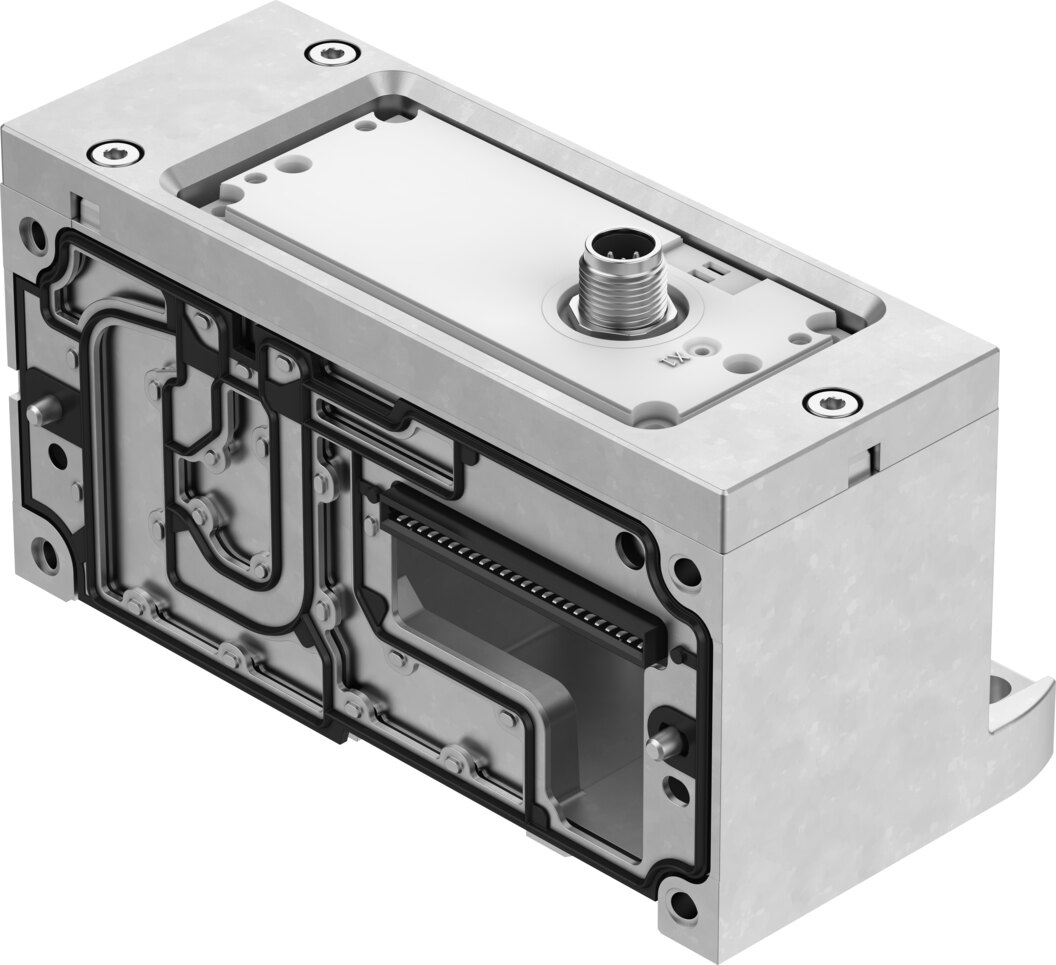

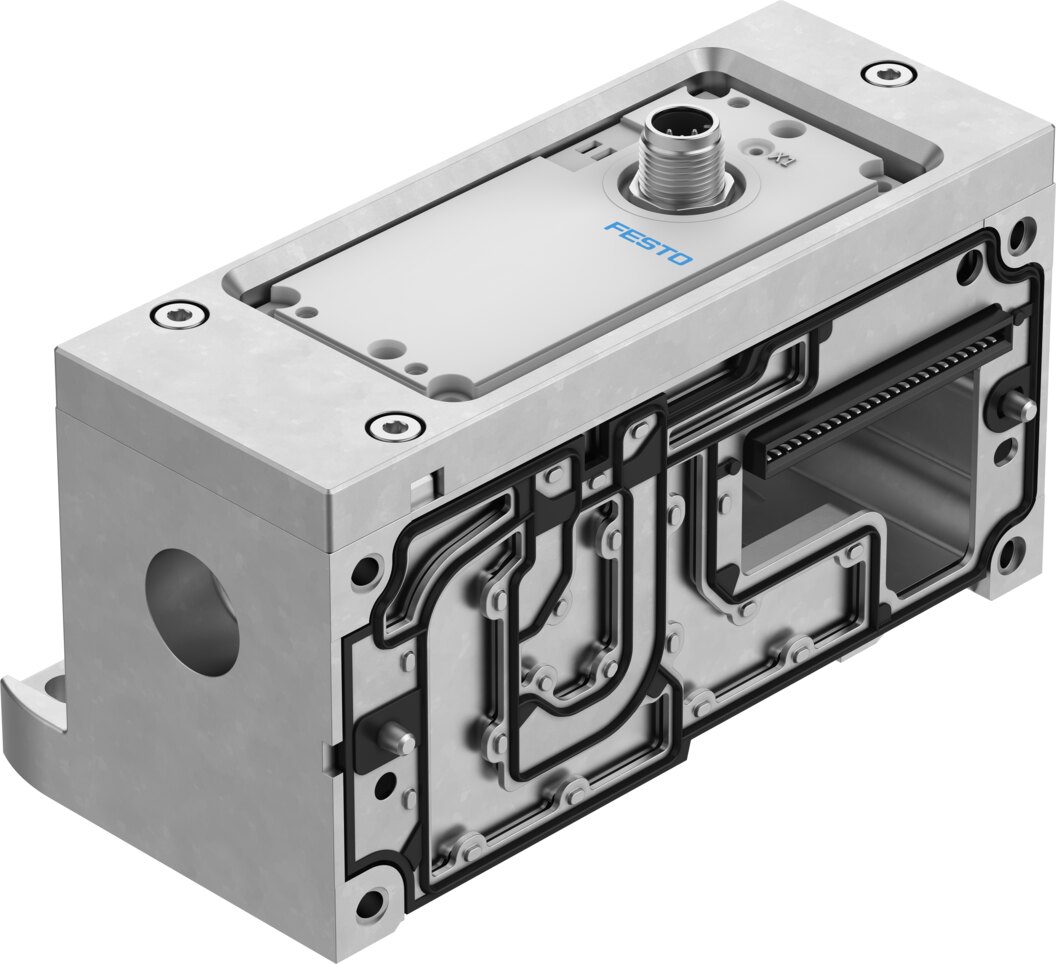

Electrical interface IO-Link, up to 16 valve positions, 24 V DC VABA-S6-1-PT - Festo 8152353
The electrical interface VABA-S6-1-PT controls the valves of the valve terminal electrically and communicates via IO-Link. Up to 16 valve positions, 32 valve coils, nominal voltage 24 V DC.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Festo electrical interface VABA-S6-1-PT (16 valve positions), part number 8152353.
Benefits
- Corrosion resistance class CRC 2: the VABA-S6-1-PT is made of die-cast aluminium.
- Electrics: 24 V DC.
Application
The VABA-S6-1-PT is used on Festo valve terminals with electrical control, for example in assembly and packaging systems. LABS (PWIS) conformity to VDMA24364-B2-L.
Technical data
| Type | VABA-S6-1-PT |
|---|---|
| Festo part number | 8152353 |
| Reverse polarity protection | Separate for power system (PS) and power load (PL) |
| Number of valve positions (max.) | 16 |
| Number of valve coils (max.) | 32 |
| Baud rate | 38.4 kbps |
| Intrinsic current consumption at nominal operating voltage for electronics/sensors | Typically 30 mA |
| Intrinsic current consumption at nominal operating voltage load | Typically 30 mA |
| Nominal operating voltage DC | 24 V |
| Residual ripple | 4 Vss |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Product weight | 690 g |
| IO-Link, connection technology | Device, 5-pin |
| IO-Link, Protocol version | Device V 1.1 |
| IO-Link, communication mode | COM2 (38.4 kBaud) |
| IO-Link, Port class | Device B |
| IO-Link, Number of ports | Device 1 |
| IO-Link, Process data length OUT | Device 1-4 byte |
| IO-Link, Min. cycle time | Device 3.2 ms |
| Cable length (max.) | 20 M |
| Types of communication | IO-Link® |
| Nominal cross section conductor | 1 mm² |
| Note on materials | RoHS compliant |
| Cover material | Die-cast aluminium |
| Manufacturer | Festo |
| Hersteller-Nr | VABA-S6-1-PT |
| EAN | 4052568597450 |
| Zolltarifnummer | 85389099 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | Die-cast aluminium |
| Operating voltage | 24 V DC |
| Series | VABA |
