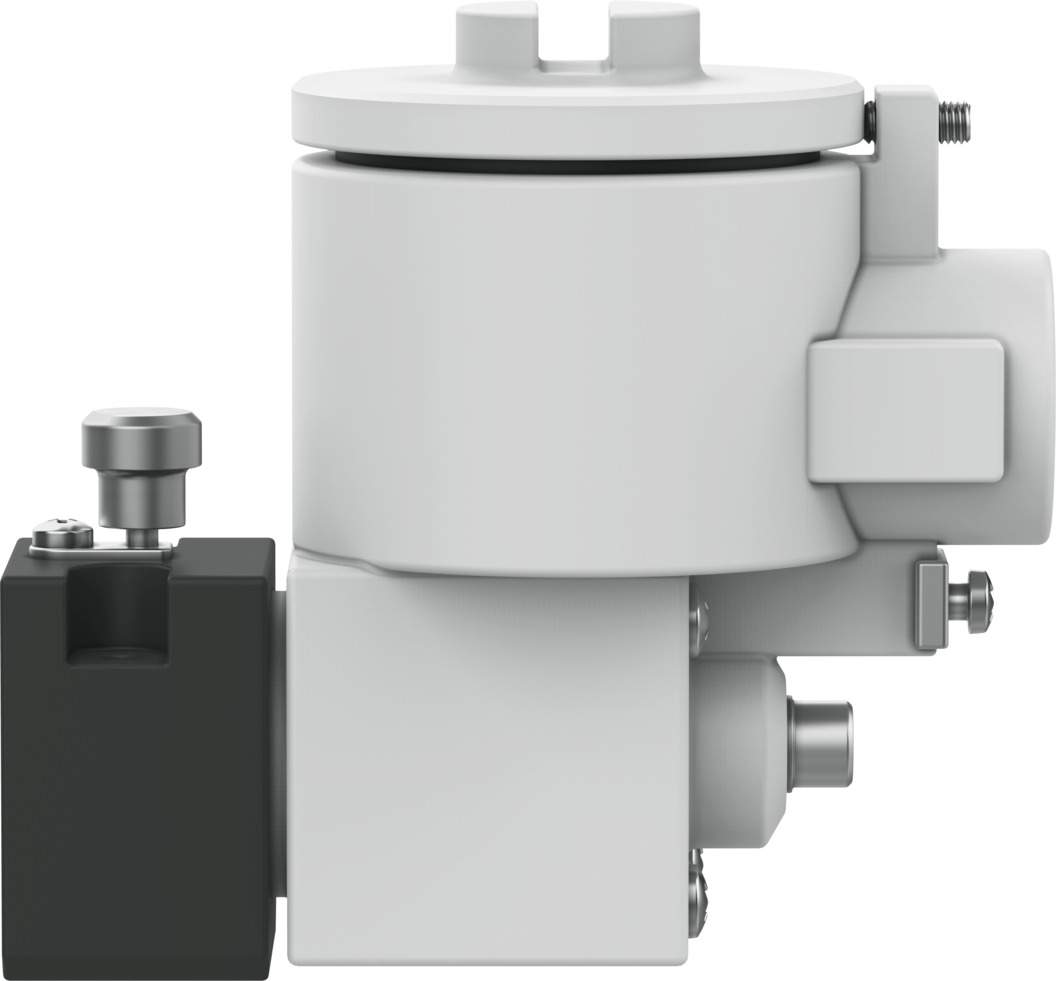

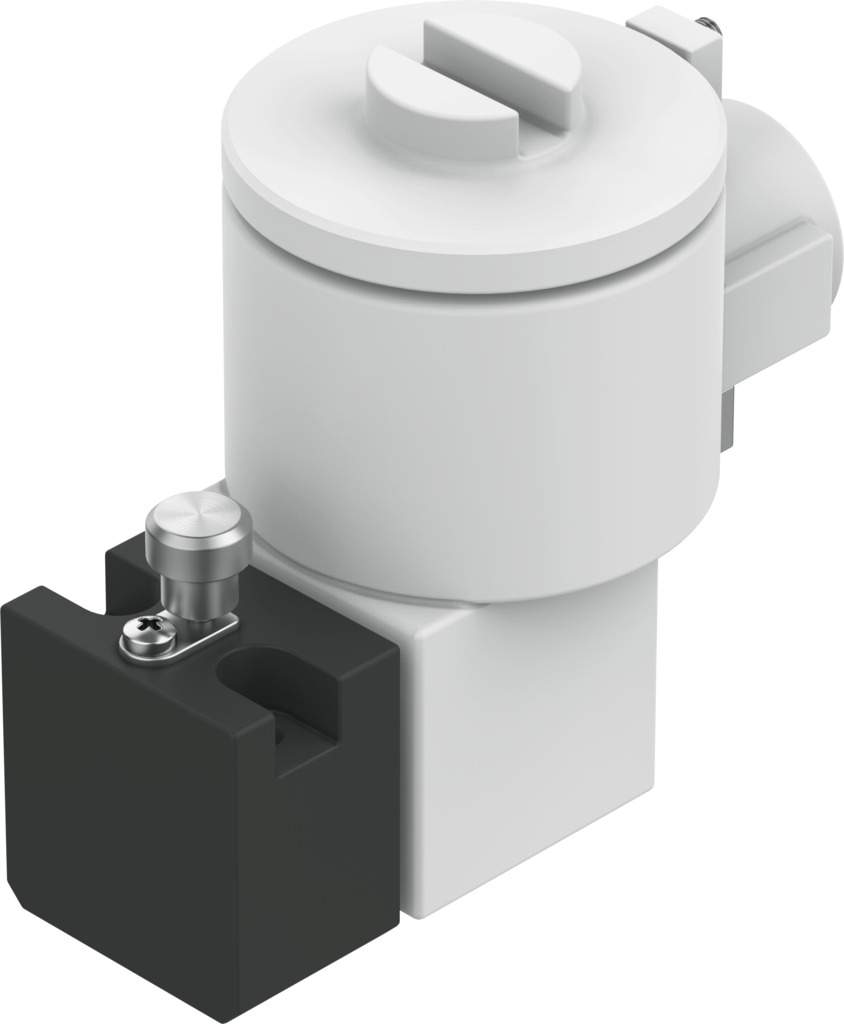

Pilot valve 3/2-way single solenoid, closed ATEX MGXDH-3/2-H-T-1.2-230AC-EX - Festo 8157305
Festo pilot valve MGXDH-3/2-H-T-1.2-230AC-EX as a 3/2-way valve (single solenoid, closed) for electrical actuation. Also -0.9 to 8 bar operating pressure and IP66 protection. Approved for hazardous areas to ATEX II 2G, II 2D.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The pilot valve MGXDH-3/2-H-T-1.2-230AC-EX works as a 3/2-way valve (single solenoid, closed) at -0.9 to 8 bar operating pressure. Further ratings: IP66 protection.
Key benefits
- Pressure range: -0.9 to 8 bar, vacuum included
- Explosion protection: ATEX category II 2G, II 2D
- Rugged: IP66 protection, corrosion resistance class 2
- Temperature: -65 to 80 °C ambient
- Continuous duty: 100 % duty cycle
Applications
For hazardous areas it is rated ATEX II 2G, II 2D. Mounting: CNOMO. The MGXDH-3/2-H-T-1.2-230AC-EX operates on compressed air to ISO 8573-1:2010 [7:4:4], lubricated operation possible (in which case lubricated operation will always be required).
Technical data
| Type | MGXDH-3/2-H-T-1.2-230AC-EX |
|---|---|
| Festo part number | 8157305 |
| Valve function | 3/2-way, single solenoid, closed |
| Type of actuation | electrical |
| Operating pressure | -0.9 to 8 bar |
| Design | on/off valve |
| Reset method | mechanical spring |
| CE mark (see declaration of conformity) | to EU Explosion Protection Directive (ATEX) |
| Explosion protection certification outside the EU | EPL Gb (CN), EPL Gb (IEC-EX) |
| Certificate issuing authority | ATEX: CML 15 ATEX 1119X, IEC: IECEx CML 17.0147X |
| ATEX category gas | II 2G |
| ATEX category dust | II 2D |
| Explosion ignition protection type for gas | Ex db IIC T4 Gb |
| Explosion ignition protection type for dust | Ex tb IIIC T135°C Db |
| Explosion ambient temperature | -65°C ≤ Ta ≤ +40°C |
| Degree of protection | IP66 |
| Manual override | non-detenting |
| Flow direction | non-reversible |
| Duty cycle | 100% |
| Insulation material class | H |
| Coil characteristics | 230 V AC: 50/60 Hz, pick-up power 10.0 VA, holding power 6.0 VA |
| Permissible frequency fluctuations | ± 10 % |
| Explosion protection | Zone 1 (ATEX), Zone 1 (CN), Zone 1 (IEC-EX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 21 (CN), Zone 21 (IEC-EX), Zone 22 (ATEX) |
| Operating medium | compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-Zone III |
| Ambient temperature | -65 to 80 °C |
| Type of mounting | CNOMO |
| Note on materials | RoHS compliant |
| Weight (shipping) | 0.9 kg |
| Weight | 0.9 kg |
| Manufacturer | Festo |
| Hersteller-Nr | MGXDH-3/2-H-T-1.2-230AC-EX |
| EAN | 4052568580988 |
| Zolltarifnummer | 84812090 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Medium | Compressed air |
| Function | 3/2 closed monostable |
| Actuation type | Electrical |
| Betriebsdruck max [bar] | 8 |
| Protection rating | IP66 |
