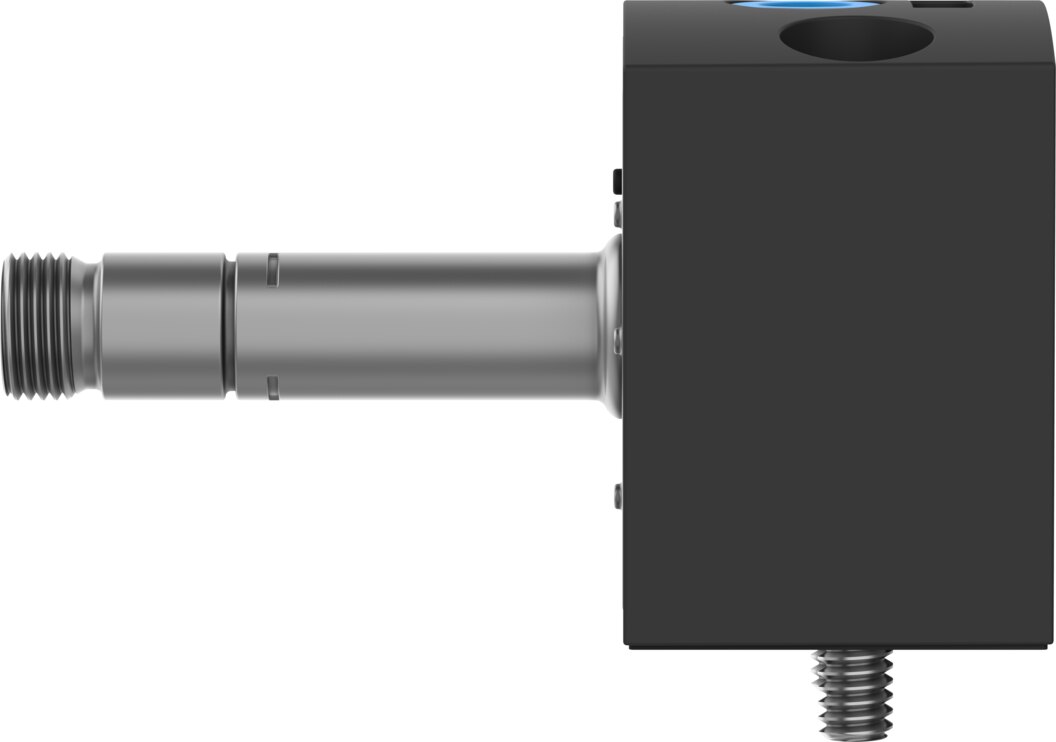

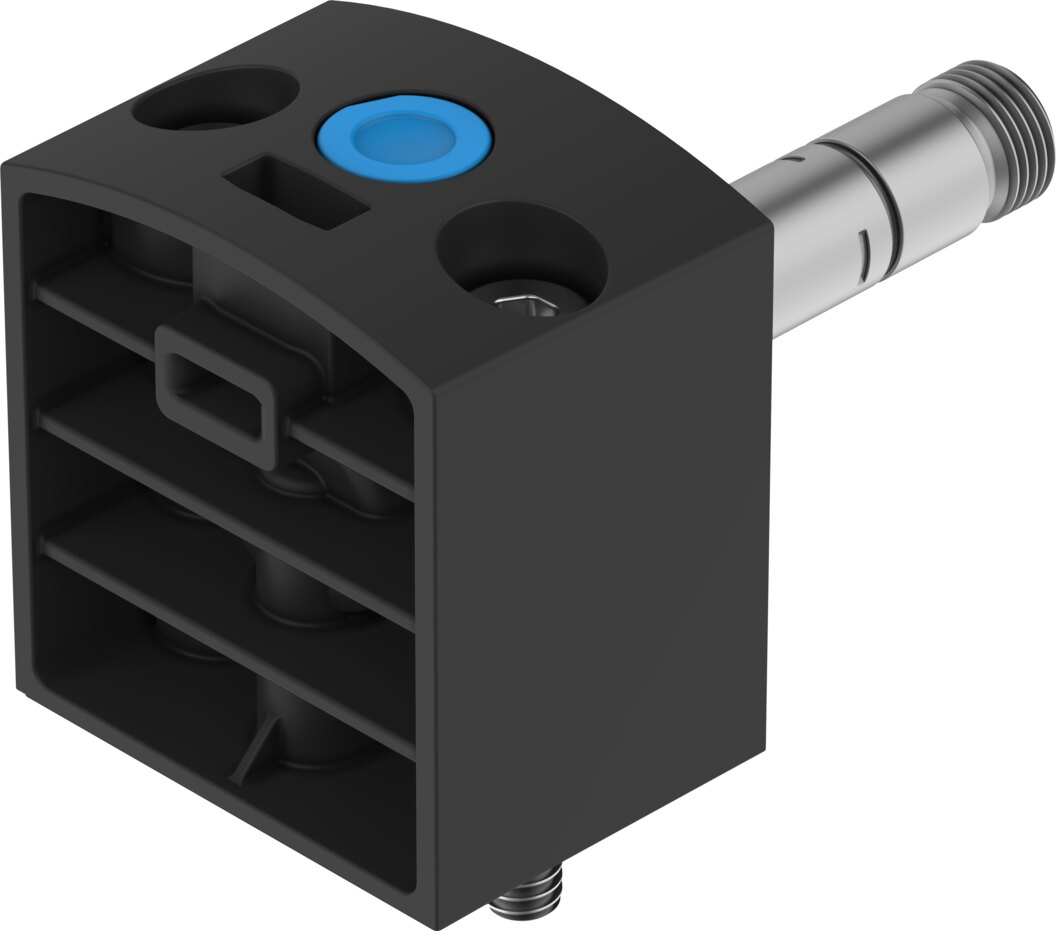

Solenoid valve 3/2-way single solenoid, closed 30 mm width VSCS-B-M32C-MH-WB-F8 - Festo 8028539

Festo ✓ Original product Brand new

The VSCS-B-M32C-MH-WB-F8 switches compressed air as a 3/2-way valve (single solenoid, closed) and reaches 34 l/min standard nominal flow rate. Designed for 2 to 10 bar operating pressure, 30 mm width and IP65 protection. Standardised ISO 15218 connection pattern for piloting valves.

Net
€16.09
excl. VAT
Item FES-8028539
Manufacturer no. VSCS-B-M32C-MH-WB-F8
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

With 34 l/min standard nominal flow rate, the solenoid valve VSCS-B-M32C-MH-WB-F8 switches as a 3/2-way valve (single solenoid, closed) at 2 to 10 bar operating pressure. In addition, the VSCS-B-M32C-MH-WB-F8 offers 30 mm width and IP65 protection.

Benefits at a glance

  • Flow: 34 l/min standard nominal flow rate at only 30 mm width
  • Pressure range: 2 to 10 bar
  • Switching times: 8 ms on, 8 ms off
  • Switching frequency: up to 5 Hz
  • Rugged: IP65 protection, corrosion resistance class 1
  • Interface: connection pattern to ISO 15218

Applications

The ISO 15218 connection pattern makes the VSCS-B-M32C-MH-WB-F8 a pilot valve for valves and actuators with a standardised pilot interface. Mounting: CNOMO. The VSCS-B-M32C-MH-WB-F8 operates on compressed air to ISO 8573-1:2010 [7:4:4], lubricated operation possible (in which case lubricated operation will always be required).

Technical data

TypeVSCS-B-M32C-MH-WB-F8
Festo part number8028539
Valve function3/2-way, single solenoid, closed
Type of actuationelectrical
Width30 mm
Standard nominal flow rate34 l/min
pneumatic working portsub-base size 30 mm to ISO 15218
Operating pressure2 to 10 bar
Designsub-base valve
Reset methodmechanical spring
Degree of protectionIP65
Sealing principlesoft
Mounting positionany
Conforms to standardISO 15218
Manual overridenon-detenting
Type of pilotingdirect
Flow directionnon-reversible
Overlapnegative overlap
Note on forced dynamizationswitching frequency min. 1/week
Max. switching frequency5 Hz
Switching time off8 ms
Switching time on8 ms
Duty cycle100%
Max. positive test pulse with 0 signal3000 µs
Max. negative test pulse with 1 signal3400 µs
Operating mediumcompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumlubricated operation possible (in which case lubricated operation will always be required)
Vibration resistancetransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Shock resistanceshock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Corrosion resistance class CRC1 - Low corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Media temperature-10 to 50 °C
Ambient temperature-10 to 50 °C
Type of mountingCNOMO
Note on materialsRoHS compliant
Material sealsNBR
Weight (shipping)0.065 kg
Weight0.065 kg
ManufacturerFesto
Hersteller-NrVSCS-B-M32C-MH-WB-F8
EAN4052568640422
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
Seal materialNBR
MediumCompressed air
Function3/2 closed monostable
Actuation typeElectrical
NormISO 15218
SeriesVSCS
Betriebsdruck max [bar]10
Protection ratingIP65
Temperaturbereich-10-50 °C
