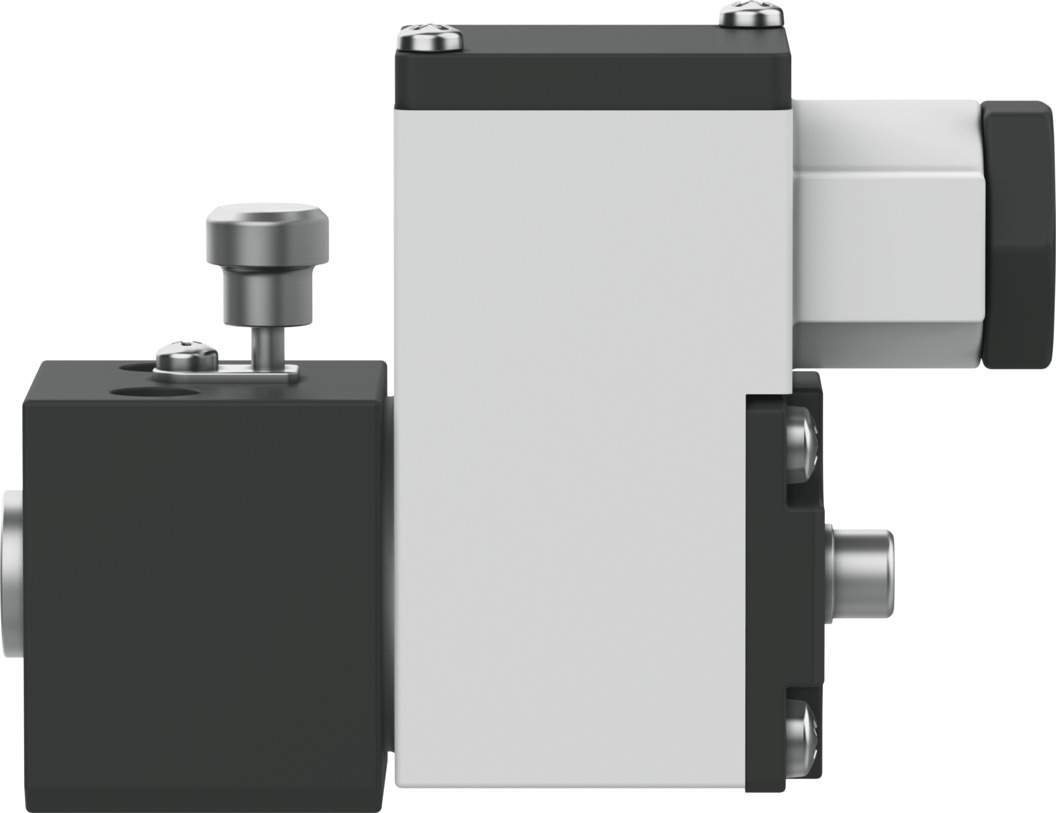

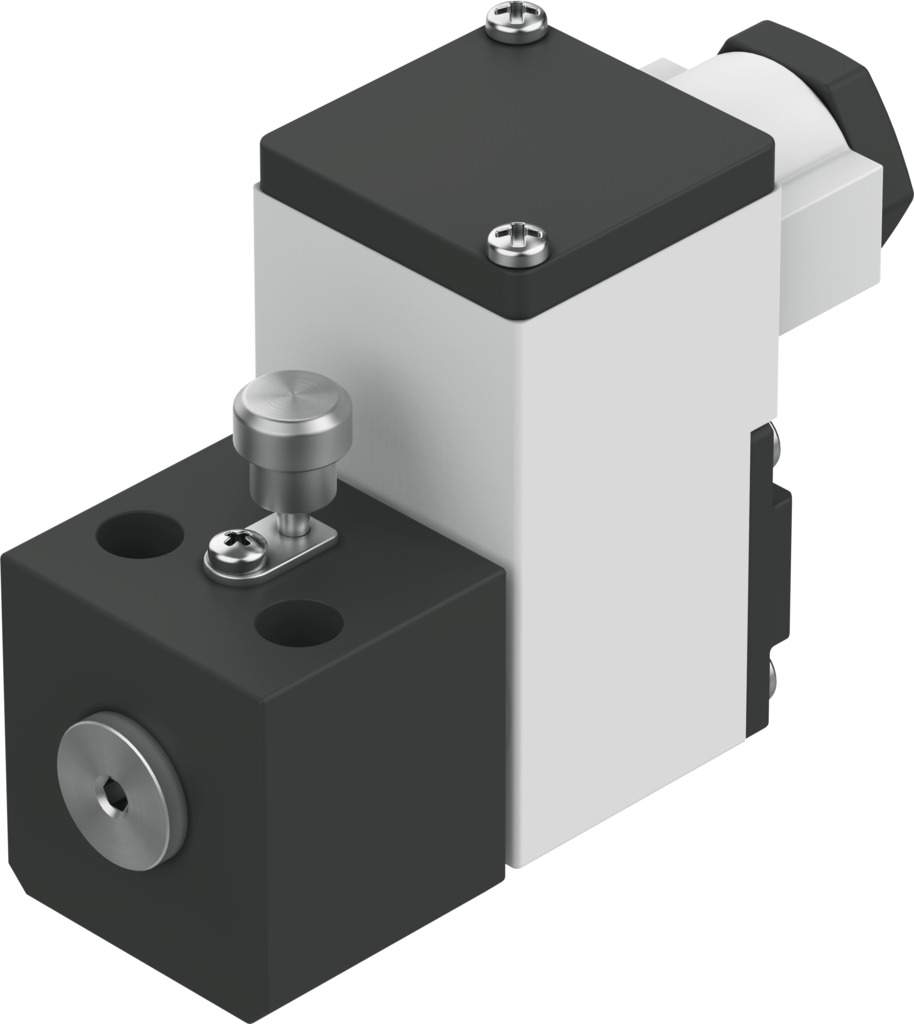

Pilot valve 3/2-way single solenoid, closed ATEX MGXIAH-3/2-H-T-0.8-24DC-EX - Festo 8118347

Festo ✓ Original product Brand new

Festo pilot valve MGXIAH-3/2-H-T-0.8-24DC-EX as a 3/2-way valve (single solenoid, closed) for electrical actuation. Designed for -0.9 to 8 bar operating pressure and IP65 protection. Approved for hazardous areas to ATEX II 1G, II 1D.

Net
€221.95
excl. VAT
Item FES-8118347
Manufacturer no. MGXIAH-3/2-H-T-0.8-24DC-EX
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

Rated for -0.9 to 8 bar operating pressure, the pilot valve MGXIAH-3/2-H-T-0.8-24DC-EX switches as a 3/2-way valve (single solenoid, closed). Designed with IP65 protection.

Benefits

  • Pressure range: -0.9 to 8 bar, vacuum included
  • Explosion protection: ATEX category II 1G, II 1D
  • Rugged: IP65 protection, corrosion resistance class 2
  • Temperature: -55 to 80 °C ambient
  • Continuous duty: 100 % duty cycle

Applications

For hazardous areas it is rated ATEX II 1G, II 1D. Mounting: CNOMO. The MGXIAH-3/2-H-T-0.8-24DC-EX operates on compressed air to ISO 8573-1:2010 [7:4:4], lubricated operation possible (in which case lubricated operation will always be required).

Technical data

TypeMGXIAH-3/2-H-T-0.8-24DC-EX
Festo part number8118347
Valve function3/2-way, single solenoid, closed
Type of actuationelectrical
Operating pressure-0.9 to 8 bar
Designon/off valve
Reset methodmechanical spring
CE mark (see declaration of conformity)to EU Explosion Protection Directive (ATEX)
Explosion protection certification outside the EUEPL Ga (CN), EPL Ga (IEC-EX)
Certificate issuing authorityATEX: CML 17 ATEX 2046X, IEC: IECEx CML 17.0030X
ATEX category gasII 1G
ATEX category dustII 1D
Explosion ignition protection type for gasEx ia IIC T6...T5 Gb
Explosion ignition protection type for dustEx ia IIIC T135°C Db
Explosion ambient temperature-40°C ≤ Ta ≤ 50°C/65°C
Degree of protectionIP65
Manual overridenon-detenting
Flow directionnon-reversible
Duty cycle100%
Insulation material classH
Max. input power Pi-55°C ~+50°C T6 = 2,98W, -55°C ~+65°C T5 = 1W, -55°C ~+65°C T5 = 2,98W, -55°C ~+65°C T6 = 1W
Max. input voltage Ui31 V
Max. input current Ii0.67 A
Coil characteristics24 V DC: 1.5 W
Effective internal inductivity Linegligibly low
Effective internal capacitance Cinegligibly low
Permissible frequency fluctuations± 10 %
Explosion protectionZone 0 (ATEX), Zone 0 (CN), Zone 0 (IEC-EX), Zone 1 (ATEX), Zone 2 (ATEX), Zone 20 (ATEX), Zone 20 (CN), Zone 20 (IEC-EX), Zone 21 (ATEX), Zone 22 (ATEX)
Operating mediumcompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumlubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-Zone III
Ambient temperature-55 to 80 °C
Type of mountingCNOMO
Note on materialsRoHS compliant
Weight (shipping)0.55 kg
Weight0.55 kg
ManufacturerFesto
Hersteller-NrMGXIAH-3/2-H-T-0.8-24DC-EX
EAN4052568580971
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MediumCompressed air
Function3/2 closed monostable
Actuation typeElectrical
Betriebsdruck max [bar]8
Protection ratingIP65
