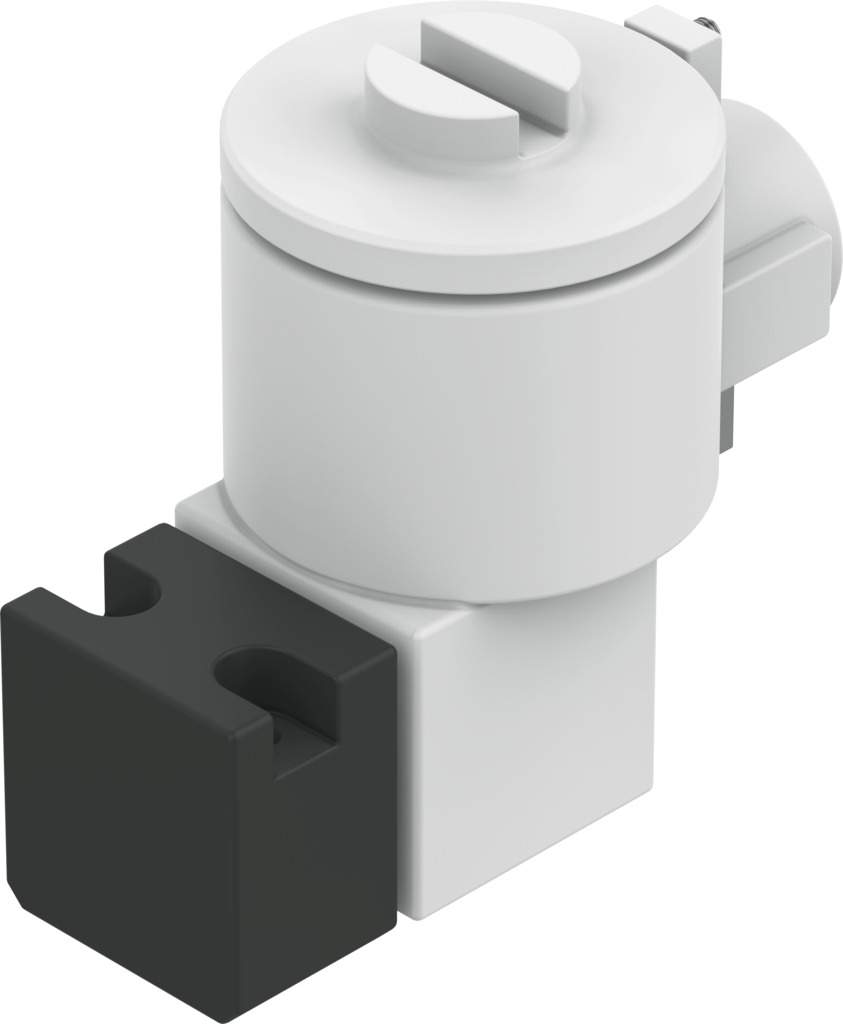

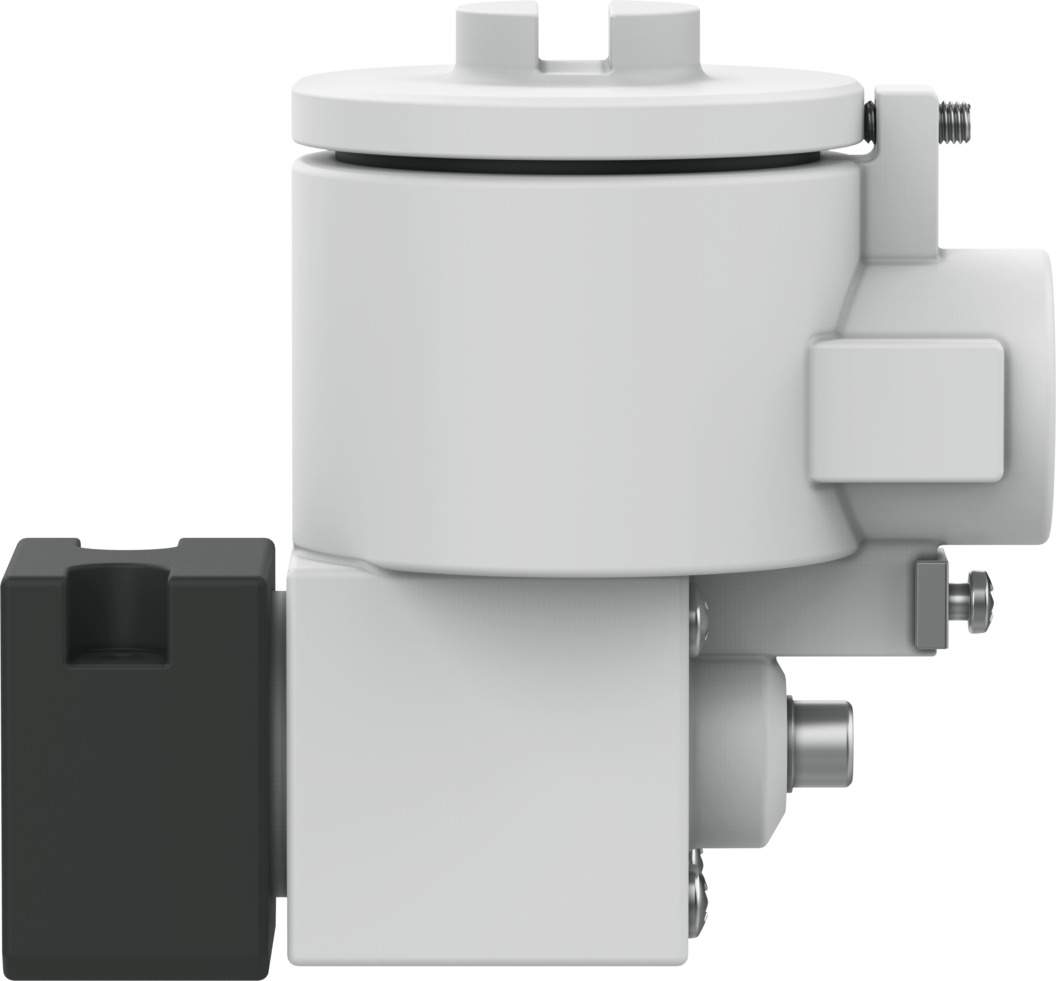

Pilot valve 3/2-way single solenoid, closed MGXDH-3/2-1.2-110AC-KS - Festo 8118343
Festo pilot valve MGXDH-3/2-1.2-110AC-KS as a 3/2-way valve (single solenoid, closed) for electrical actuation. Also -0.9 to 8 bar operating pressure and IP66 protection.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
As a 3/2-way valve (single solenoid, closed), the Festo pilot valve MGXDH-3/2-1.2-110AC-KS operates at -0.9 to 8 bar operating pressure. It also offers IP66 protection.
Benefits
- Pressure range: -0.9 to 8 bar, vacuum included
- Rugged: IP66 protection, corrosion resistance class 2
- Temperature: -20 to 80 °C ambient
- Continuous duty: 100 % duty cycle
Applications
The MGXDH-3/2-1.2-110AC-KS suits single-acting cylinders, vacuum and blow-off functions or use as a pilot valve. Mounting: CNOMO. Operating medium for the MGXDH-3/2-1.2-110AC-KS: compressed air to ISO 8573-1:2010 [7:4:4], lubricated operation possible (in which case lubricated operation will always be required).
Technical data
| Type | MGXDH-3/2-1.2-110AC-KS |
|---|---|
| Festo part number | 8118343 |
| Valve function | 3/2-way, single solenoid, closed |
| Type of actuation | electrical |
| Operating pressure | -0.9 to 8 bar |
| Design | on/off valve |
| Reset method | mechanical spring |
| Certificate issuing authority | 21-GA4BO-0068X, 21-GA4BO-0069X |
| Explosion ignition protection type for gas | Ex db IIC T6...T3 Gb |
| Explosion ignition protection type for dust | Ex tb IIIC T85°C Db |
| Explosion ambient temperature | -65°C ~+40°C T4, -65°C ~+55°C T3 |
| Degree of protection | IP66 |
| Manual override | detenting |
| Flow direction | non-reversible |
| Duty cycle | 100% |
| Insulation material class | H |
| Coil characteristics | 110 V AC: 50/60 Hz, initial power: 79.5 VA, holding power: 3.8 VA |
| Permissible frequency fluctuations | ± 10 % |
| Operating medium | compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-Zone III |
| Ambient temperature | -20 to 80 °C |
| Type of mounting | CNOMO |
| Note on materials | RoHS compliant |
| Weight (shipping) | 0.9 kg |
| Weight | 0.9 kg |
| Manufacturer | Festo |
| Hersteller-Nr | MGXDH-3/2-1.2-110AC-KS |
| EAN | 4052568580933 |
| Zolltarifnummer | 84812090 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Medium | Compressed air |
| Function | 3/2 closed monostable |
| Actuation type | Electrical |
| Betriebsdruck max [bar] | 8 |
| Protection rating | IP66 |
| Temperaturbereich | -20-80 °C |
