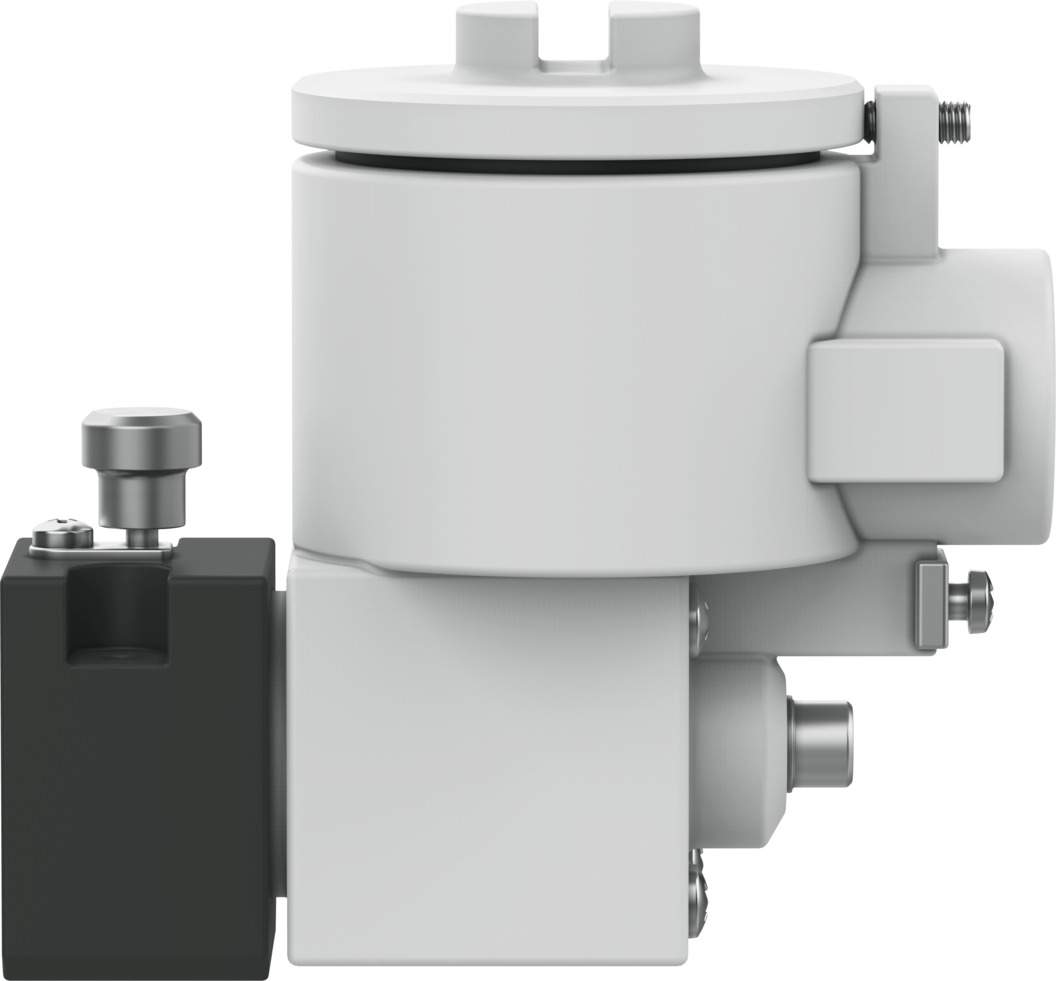

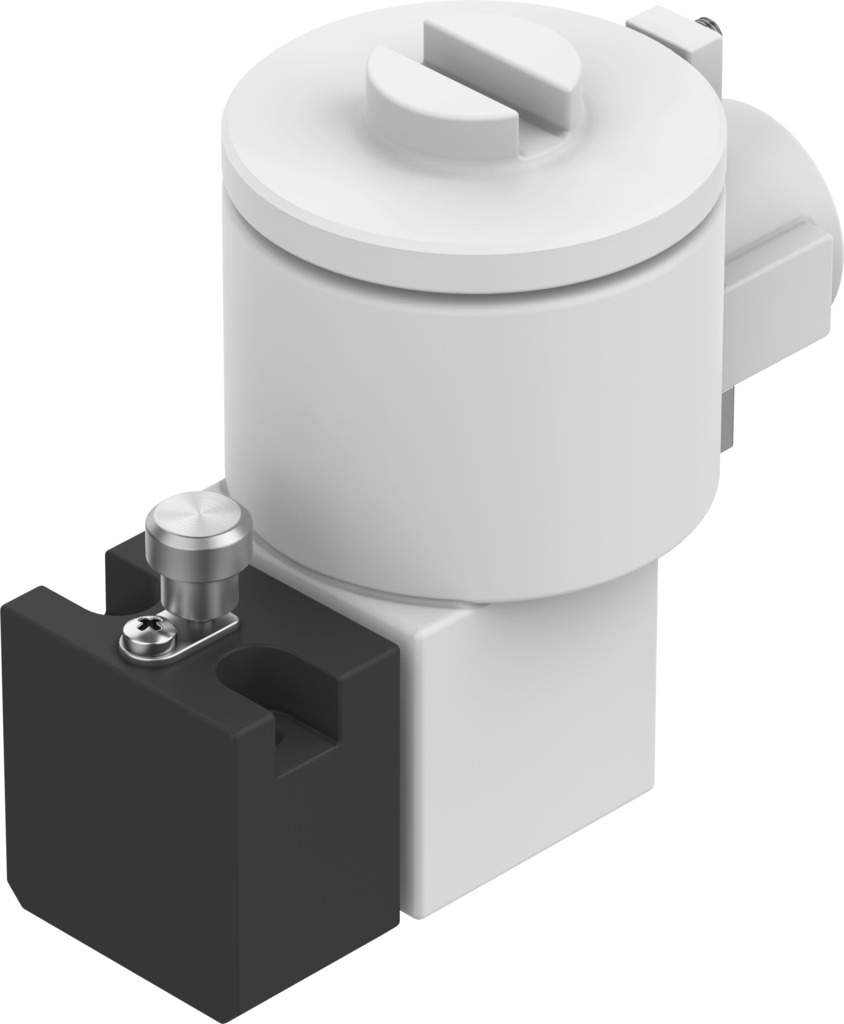

Pilot valve MGXDH-3/2-H-T-1.2-24DC-EX - Festo 8118345
Net
excl. VAT
€288.02
Item
FES-8118345
Manufacturer no.
MGXDH-3/2-H-T-1.2-24DC-EX
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Technical data
| Valve function | 3/2-way, single solenoid, closed |
|---|---|
| Type of actuation | Electrical |
| Operating pressure | -0.9 ... 8 bar |
| Design | On/off valve |
| Type of reset | Mechanical spring |
| CE mark (see declaration of conformity) | To EU Explosion Protection Directive (ATEX) |
| Explosion protection certification outside the EU | EPL Gb (CN), EPL Gb (IECEx) |
| Certificate issuing authority | ATEX: CML 15 ATEX 1119X, IEC: IECEx CML 17.0147X |
| ATEX category gas | II 2G |
| ATEX category dust | II 2D |
| Explosion ignition protection type for gas | Ex db IIC T5 Gb |
| Explosion ignition protection type for dust | Ex tb IIIC T100°C Db |
| Explosion ambient temperature | -65°C <= Ta <= +55°C |
| Degree of protection | IP66 |
| Manual override | Non-detenting |
| Flow direction | Non-reversible |
| Duty cycle | 100% |
| Insulation material class | H |
| Characteristic coil data | 24 V DC: 3.0 W |
| Permissible frequency fluctuations | +/-10% |
| Explosion protection | Zone 1 (ATEX), Zone 1 (CN), Zone 1 (IEC-EX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 21 (CN), Zone 21 (IEC-EX), Zone 22 (ATEX) |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Ambient temperature | -65 ... 80 °C |
| Type of mounting | CNOMO |
| Note on materials | RoHS compliant |
| Weight | 0.9 kg |
| Manufacturer | Festo |
| Hersteller-Nr | MGXDH-3/2-H-T-1.2-24DC-EX |
| EAN | 4052568580957 |
| Zolltarifnummer | 84812090 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
