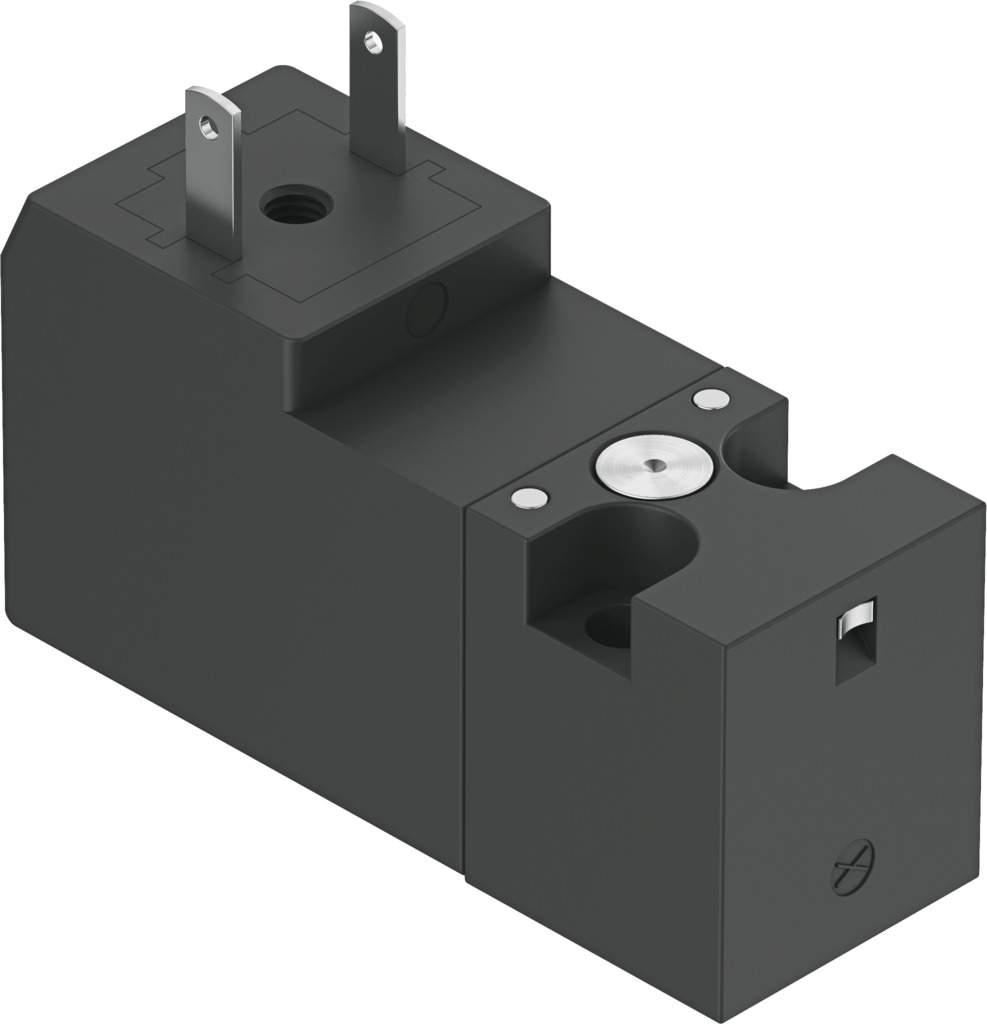

Solenoid valve 3/2-way single solenoid, closed 15 mm width VSCS-B-M32-MH-WA-1E1-8 - Festo 8137327

Festo ✓ Original product Brand new

Solenoid valve VSCS-B-M32-MH-WA-1E1-8 as a 3/2-way valve (single solenoid, closed) with 13.5 l/min standard nominal flow rate for controlling pneumatic actuators. Ratings: 1.5 to 8 bar operating pressure, sub-base mounting and 15 mm width. Connection pattern to ISO 15218 for standardised pilot interfaces.

Net
€21.21
excl. VAT
Item FES-8137327
Manufacturer no. VSCS-B-M32-MH-WA-1E1-8
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

With 13.5 l/min standard nominal flow rate, the solenoid valve VSCS-B-M32-MH-WA-1E1-8 switches as a 3/2-way valve (single solenoid, closed) at 1.5 to 8 bar operating pressure. It also offers sub-base mounting, 15 mm width and 24 V DC operating voltage.

Key benefits

  • Flow: 13.5 l/min standard nominal flow rate at only 15 mm width
  • Pressure range: 1.5 to 8 bar
  • Switching times: 8 ms on, 6 ms off
  • Rugged: IP65 protection, corrosion resistance class 2
  • Interface: connection pattern to ISO 15218
  • Temperature: -5 to 50 °C ambient

Applications

The ISO 15218 connection pattern makes the VSCS-B-M32-MH-WA-1E1-8 a pilot valve for valves and actuators with a standardised pilot interface. Operating medium for the VSCS-B-M32-MH-WA-1E1-8: compressed air to ISO 8573-1:2010 [7:4:4], lubricated operation possible (in which case lubricated operation will always be required).

Technical data

TypeVSCS-B-M32-MH-WA-1E1-8
Festo part number8137327
Valve function3/2-way, single solenoid, closed
Type of actuationelectrical
Width15 mm
Standard nominal flow rate13.5 l/min
pneumatic working portsub-base size 15 mm to ISO 15218
Operating voltage24 V DC
Operating pressure1.5 to 8 bar
Reset methodmechanical spring
Degree of protectionIP65
Sealing principlesoft
Mounting positionany
Conforms to standardISO 15218
Manual overridenon-detenting
Type of pilotingdirect
Flow directionnon-reversible
Overlapnegative overlap
Note on forced dynamizationswitching frequency min. 1/week
Switching time off6 ms
Switching time on8 ms
Duty cycle100%
Coil characteristics24 V DC: 1.3 W
Permissible voltage fluctuations± 10 %
Operating mediumcompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumlubricated operation possible (in which case lubricated operation will always be required)
Vibration resistancetransport application test with severity level 1 to FN 942017-4 and EN 60068-2-6
Shock resistanceshock test with severity level 1 to FN 942017-5 and EN 60068-2-27
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-C1-L
Media temperature-5 to 50 °C
Ambient temperature-5 to 50 °C
Electrical connectionplug pattern type C to industry standard, 9.4 mm
Pneumatic connection, port 1sub-base
Pneumatic connection, port 2sub-base
Pneumatic connection, port 3sub-base
Note on materialsRoHS compliant
Material sealsNBR
Weight (shipping)0.049 kg
Weight0.049 kg
ManufacturerFesto
Hersteller-NrVSCS-B-M32-MH-WA-1E1-8
EAN4052568595401
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
Seal materialNBR
MediumCompressed air
Function3/2 closed monostable
Actuation typeElectrical
NormISO 15218
SeriesVSCS
Betriebsdruck max [bar]8
Protection ratingIP65
