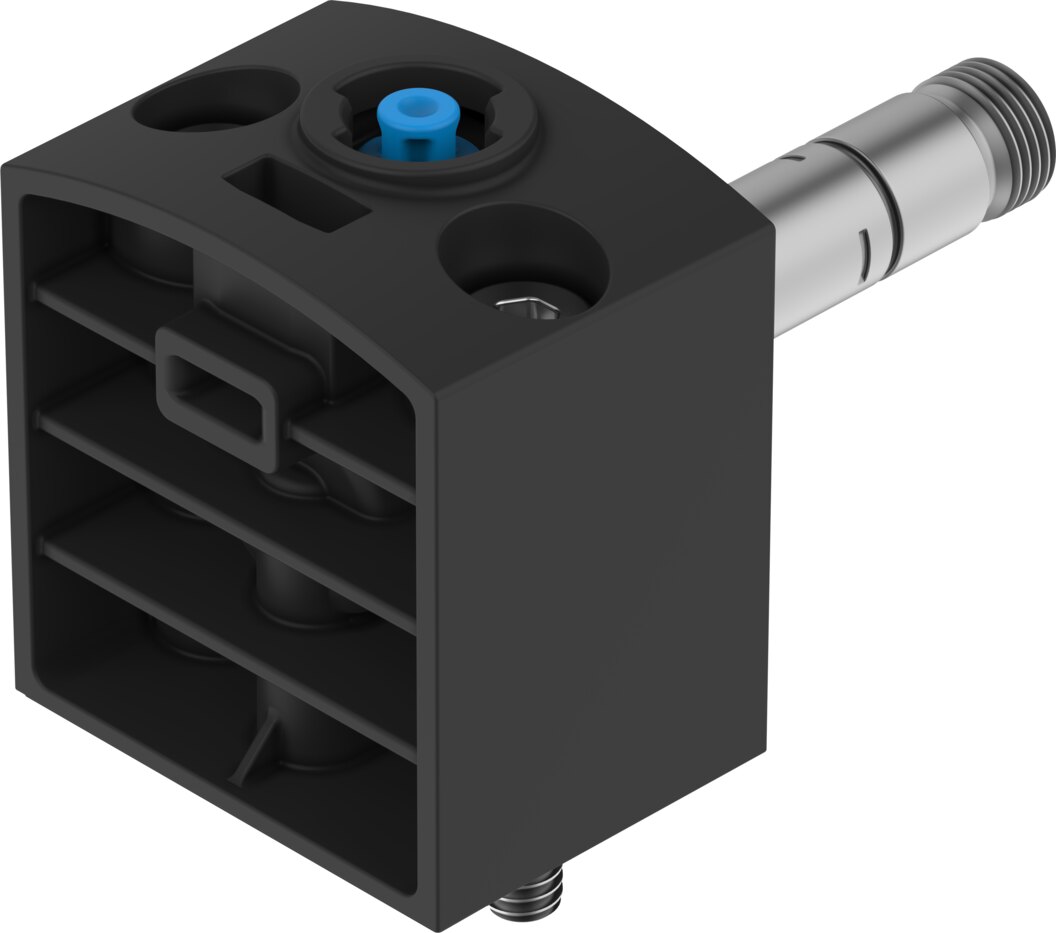

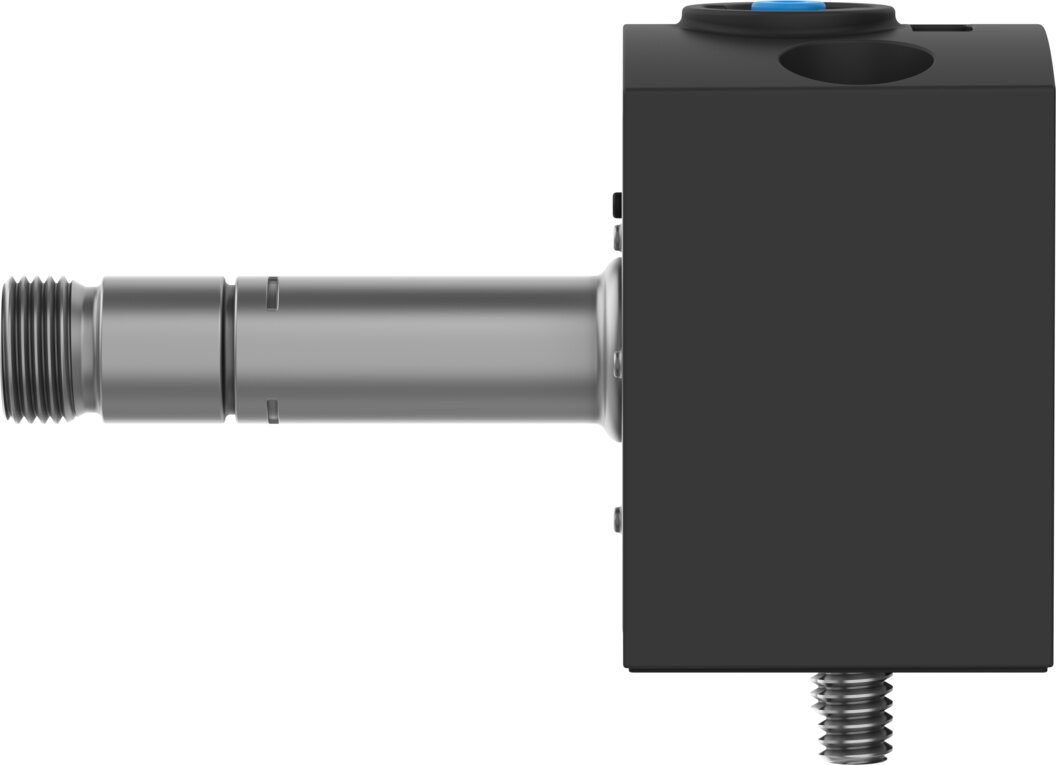

Solenoid valve 3/2-way single solenoid, closed 30 mm width VSCS-B-M32C-MT-WB-F8 - Festo 8028541
Solenoid valve VSCS-B-M32C-MT-WB-F8 as a 3/2-way valve (single solenoid, closed) with 34 l/min standard nominal flow rate for controlling pneumatic actuators. Designed for 2 to 10 bar operating pressure, 30 mm width and IP65 protection. Standardised ISO 15218 connection pattern for piloting valves.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
As a 3/2-way valve (single solenoid, closed), the Festo solenoid valve VSCS-B-M32C-MT-WB-F8 delivers 34 l/min standard nominal flow rate at 2 to 10 bar operating pressure. It also offers 30 mm width and IP65 protection.
Benefits
- Flow: 34 l/min standard nominal flow rate at only 30 mm width
- Pressure range: 2 to 10 bar
- Switching times: 8 ms on, 8 ms off
- Switching frequency: up to 5 Hz
- Rugged: IP65 protection, corrosion resistance class 1
- Interface: connection pattern to ISO 15218
Applications
The ISO 15218 connection pattern makes the VSCS-B-M32C-MT-WB-F8 a pilot valve for valves and actuators with a standardised pilot interface. Mounting: CNOMO. Operating medium for the VSCS-B-M32C-MT-WB-F8: compressed air to ISO 8573-1:2010 [7:4:4], lubricated operation possible (in which case lubricated operation will always be required).
Technical data
| Type | VSCS-B-M32C-MT-WB-F8 |
|---|---|
| Festo part number | 8028541 |
| Valve function | 3/2-way, single solenoid, closed |
| Type of actuation | electrical |
| Width | 30 mm |
| Standard nominal flow rate | 34 l/min |
| pneumatic working port | sub-base size 30 mm to ISO 15218 |
| Operating pressure | 2 to 10 bar |
| Design | sub-base valve |
| Reset method | mechanical spring |
| Degree of protection | IP65 |
| Sealing principle | soft |
| Mounting position | any |
| Conforms to standard | ISO 15218 |
| Manual override | detenting via accessory, non-detenting |
| Type of piloting | direct |
| Flow direction | non-reversible |
| Overlap | negative overlap |
| Note on forced dynamization | switching frequency min. 1/week |
| Max. switching frequency | 5 Hz |
| Switching time off | 8 ms |
| Switching time on | 8 ms |
| Duty cycle | 100% |
| Max. positive test pulse with 0 signal | 3000 µs |
| Max. negative test pulse with 1 signal | 3400 µs |
| Operating medium | compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | lubricated operation possible (in which case lubricated operation will always be required) |
| Vibration resistance | transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
| Shock resistance | shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class CRC | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Media temperature | -10 to 50 °C |
| Ambient temperature | -10 to 50 °C |
| Type of mounting | CNOMO |
| Note on materials | RoHS compliant |
| Material seals | NBR |
| Weight (shipping) | 0.065 kg |
| Weight | 0.065 kg |
| Manufacturer | Festo |
| Hersteller-Nr | VSCS-B-M32C-MT-WB-F8 |
| EAN | 4052568640446 |
| Zolltarifnummer | 84812090 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Seal material | NBR |
| Medium | Compressed air |
| Function | 3/2 closed monostable |
| Actuation type | Electrical |
| Norm | ISO 15218 |
| Series | VSCS |
| Betriebsdruck max [bar] | 10 |
| Protection rating | IP65 |
| Temperaturbereich | -10-50 °C |
