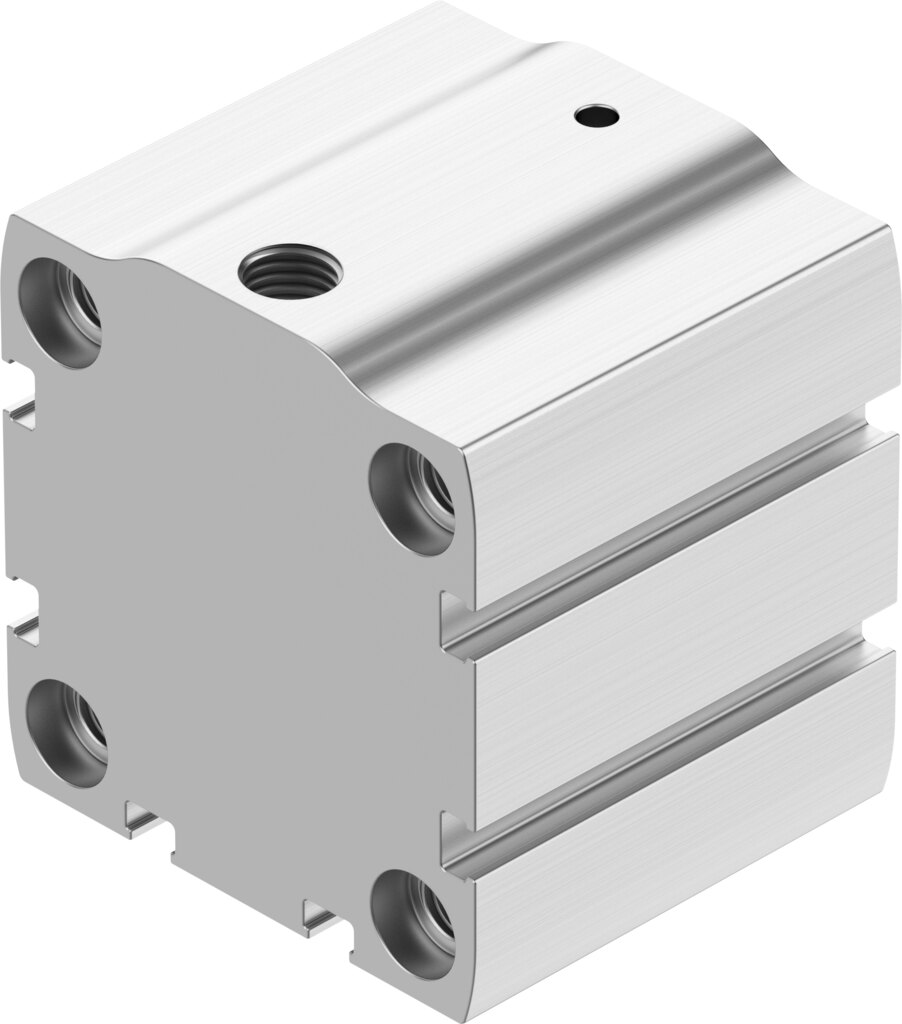

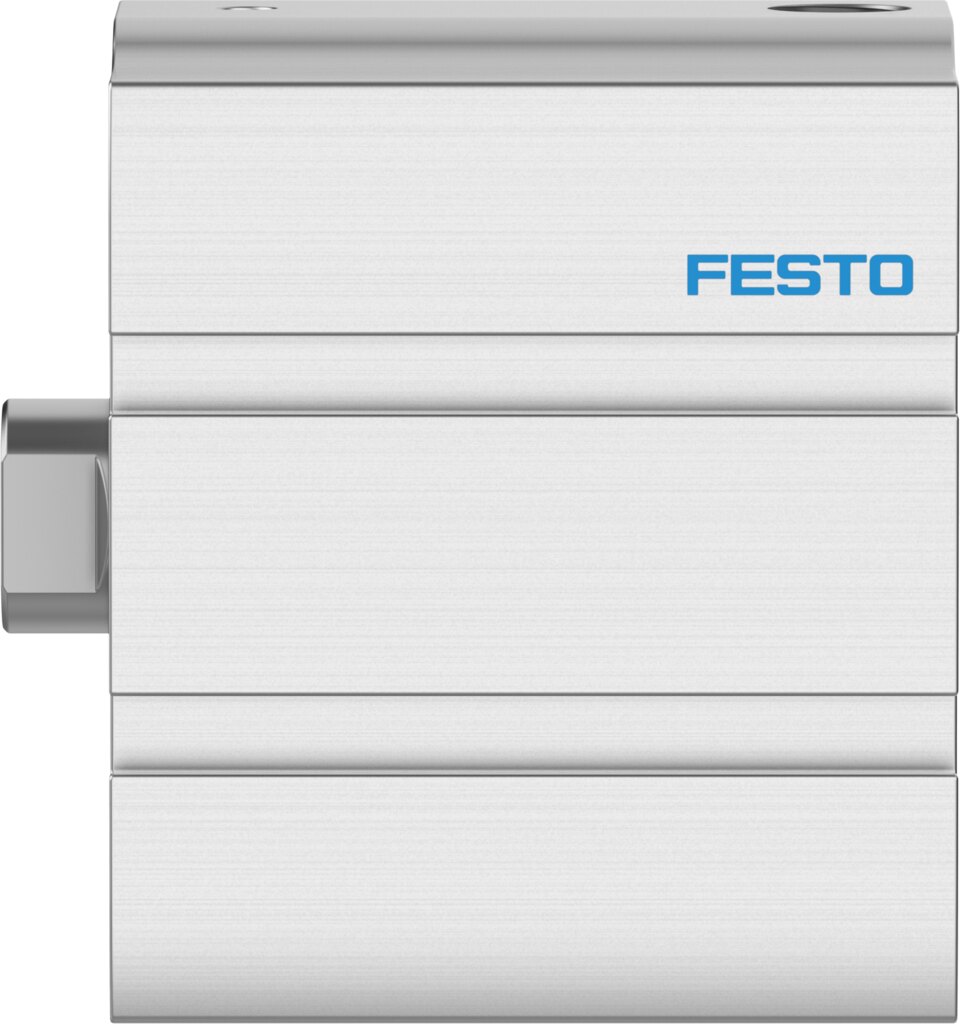

Compact cylinder single-acting pushing Ø 50 mm stroke 25 mm AEN-S-50-25-A-P - Festo 8092156

The Festo AEN-S-50-25-A-P is a single-acting pushing compact cylinder, 50 mm piston, 25 mm stroke. At 6 bar it reaches a theoretical 1,178 N advance force.

Benefits

• Single-acting: one air line is enough for 1,178 N theoretical force at 6 bar
• Gentle end positions: elastic cushioning rings at both ends, impact energy 0.6 J
• Flexible use: operating pressure 1 to 10 bar, any mounting position
• Cleanroom-ready: class 5 according to ISO 14644-1, measured to ISO 14644-14
• Additional PTFE piston guide: for even running of the piston
• Corrosion resistance class CRC 1: ambient temperature 0 to 80 °C, stainless piston rod

Applications

The 50 mm cylinder is used as a plunger, ejector or clamping element in assembly and packaging. Since only one direction uses compressed air, the AEN-S-50-25-A-P needs one valve port less. Through-holes and female threads are available for mounting the 50 mm cylinder. For mass calculations Festo states 310 g basic weight at 0 mm stroke plus 63 g per 10 mm stroke.
