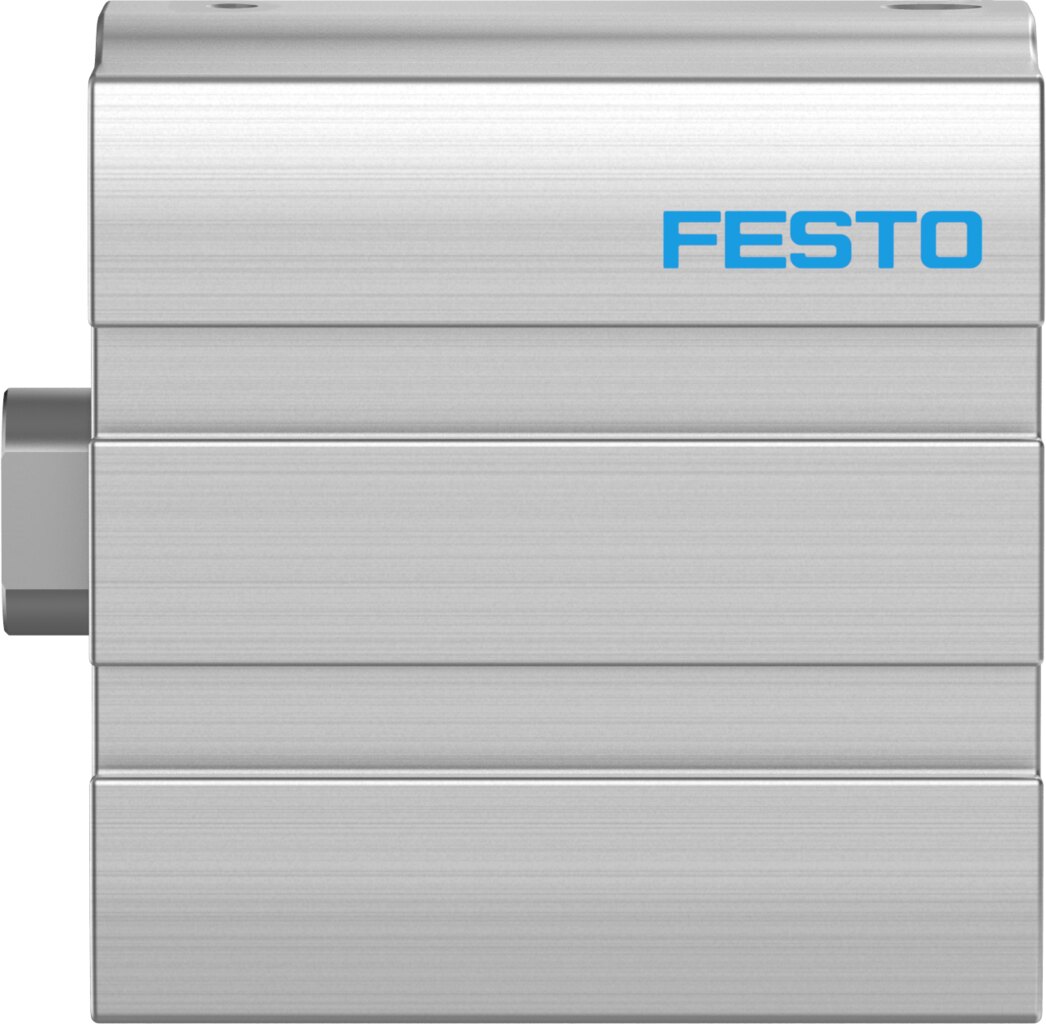

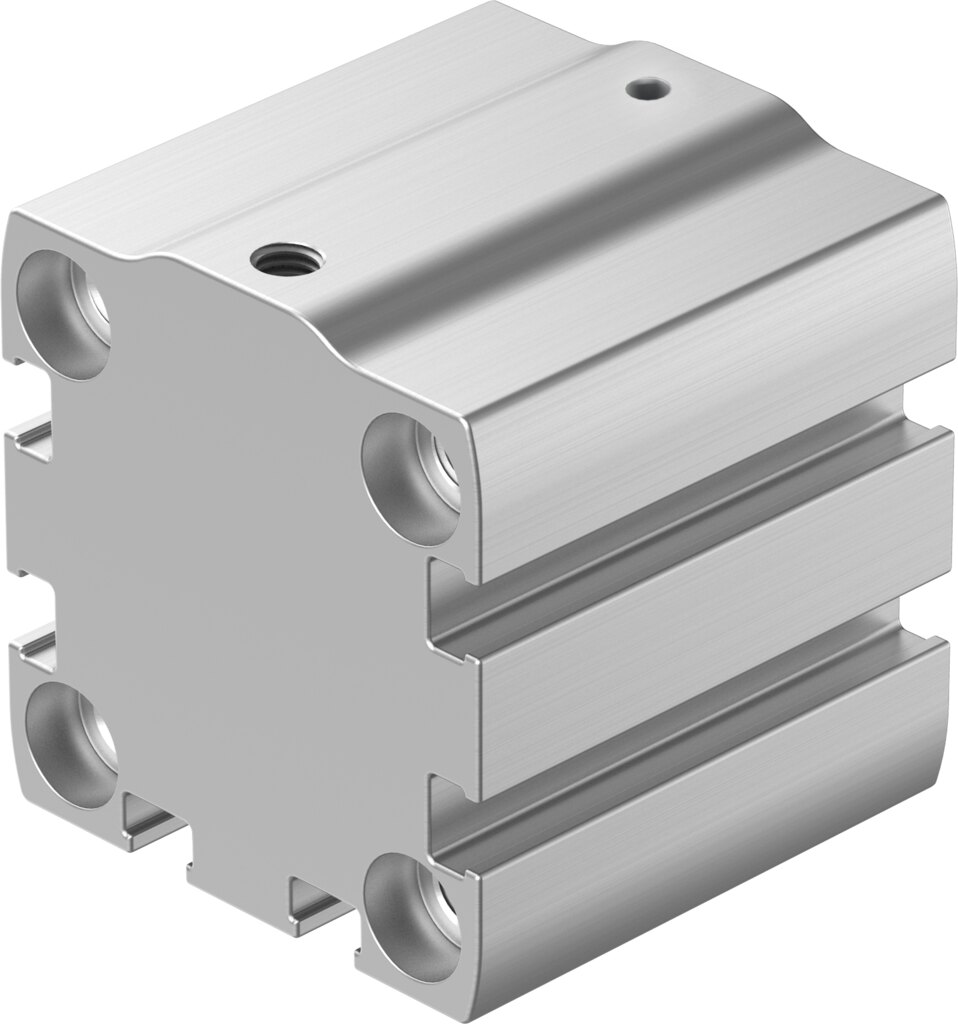

Compact cylinder single-acting pushing Ø 32 mm stroke 10 mm AEN-S-32-10-I-P - Festo 8076510

32 mm piston, 10 mm stroke, 439 N advance force at 6 bar: the single-acting pushing compact cylinder AEN-S-32-10-I-P fits fixtures where a standard cylinder is too long.

Benefits

• Single-acting: one air line is enough for 439 N theoretical force at 6 bar
• Gentle end positions: elastic cushioning rings at both ends, impact energy 0.18 J
• Pressure range: 1 to 10 bar operating pressure, any mounting position
• Corrosion resistance class CRC 1: ambient temperature 0 to 80 °C, stainless piston rod
• LABS (PWIS) conformity: VDMA24364-B2-L

Applications

The 32 mm cylinder is used as a plunger, ejector or clamping element in assembly and packaging. Since only one direction uses compressed air, the AEN-S-32-10-I-P needs one valve port less. Mount the AEN-S-32-10-I-P via through-holes or the female threads in the housing. For mass calculations Festo states 107 g basic weight at 0 mm stroke plus 36 g per 10 mm stroke.
