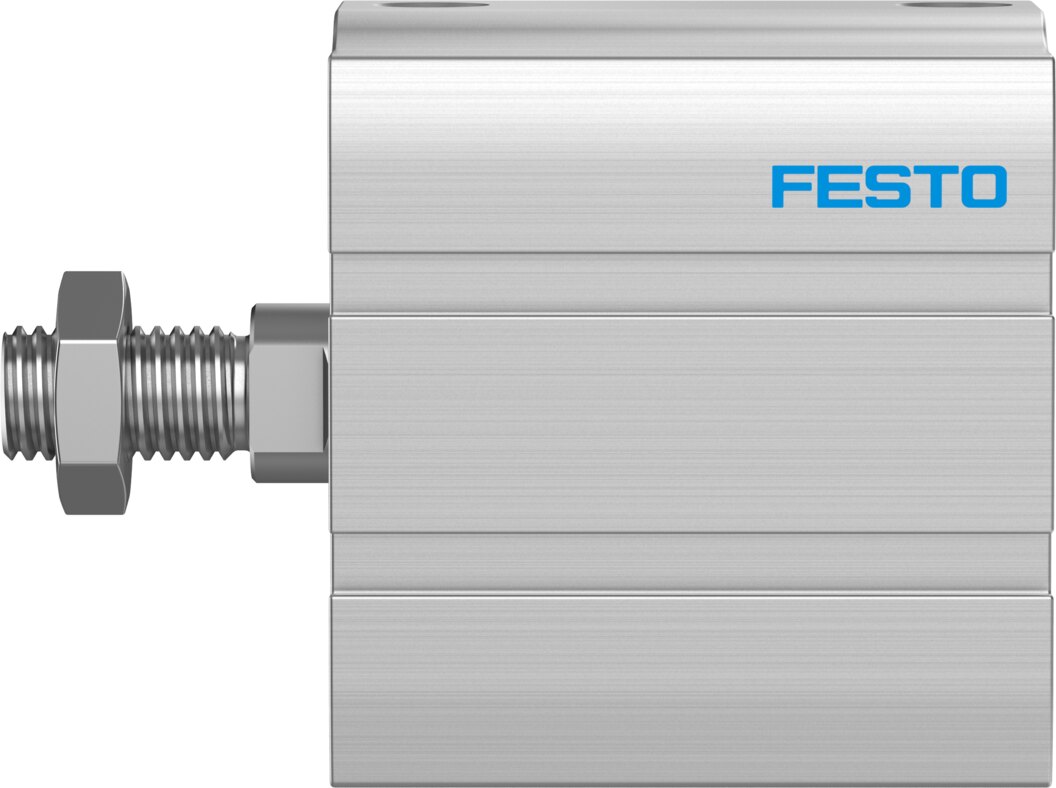

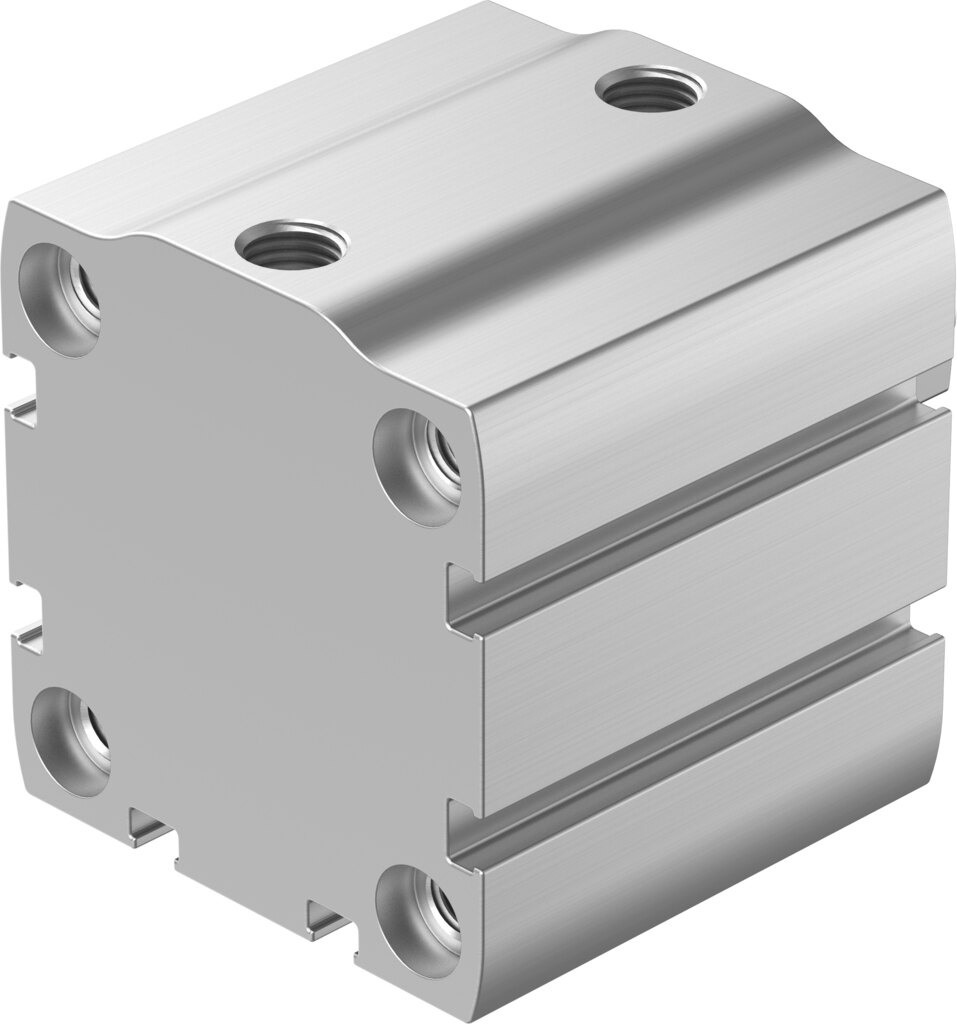

Compact cylinder double-acting Ø 50 mm stroke 40 mm ADN-S-50-40-A-P-A - Festo 8092087

Where space in the stroke direction is short, the ADN-S-50-40-A-P-A fits in: double-acting compact cylinder, 50 mm piston, 40 mm stroke, 1178 N advance and 1057 N return force at 6 bar.

Benefits at a glance

• Easy sizing: 1178 N forward and 1057 N back at 6 bar according to Festo
• Gentle end positions: elastic cushioning rings at both ends, impact energy up to 1 J
• Position sensing: prepared for proximity switches, port G1/8
• Wide pressure range: 0.4 to 10 bar operating pressure, 0 to 80 °C ambient temperature
• Corrosion resistance class CRC 1: piston rod in high-alloy stainless steel

Applications

With a 50 mm piston the ADN-S-50-40-A-P-A covers force-intensive tasks such as pressing, press-fitting and clamping heavy workpieces. The 50 mm cylinder is fastened via through-holes, female threads or Festo accessories, the piston rod has a male thread. For sizing, Festo states 324 g basic weight and 104 g moving mass at 0 mm stroke, plus 63 g and 16 g respectively per 10 mm stroke.
