Double-acting compact cylinder Ø 25 mm stroke 80 mm ADN-25-80-I-P-A - Festo 578450

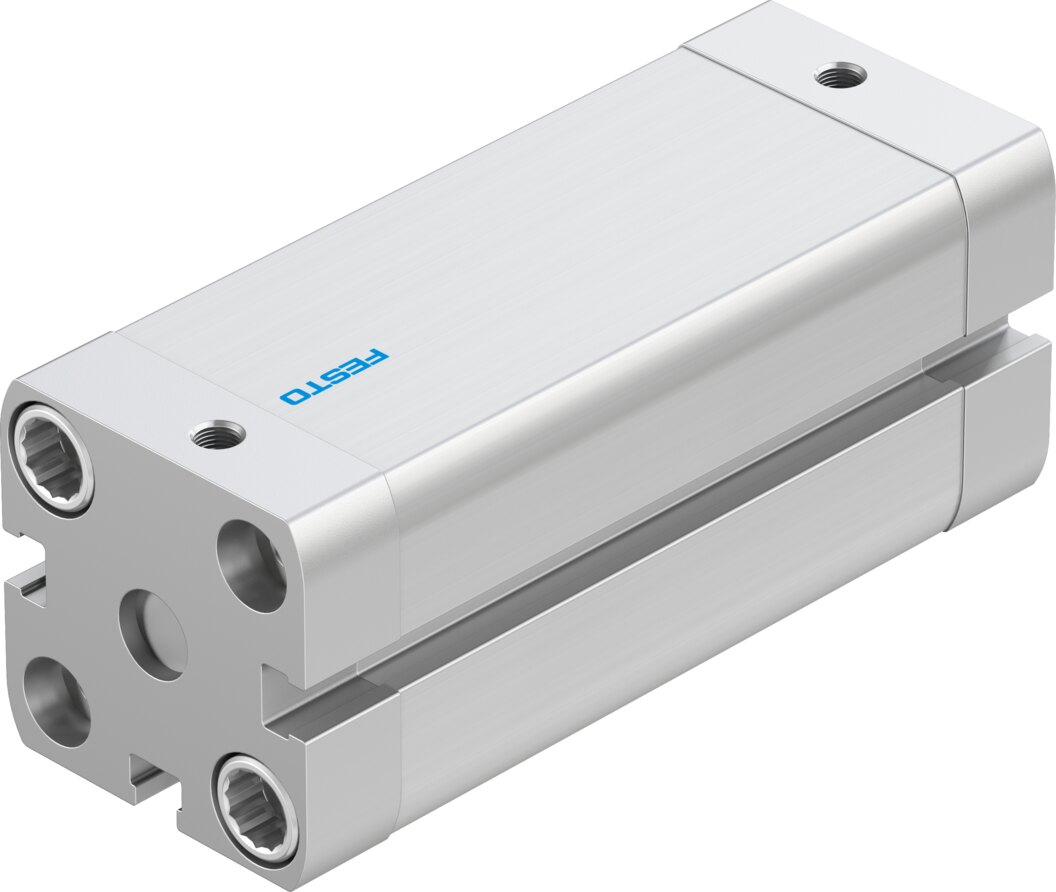

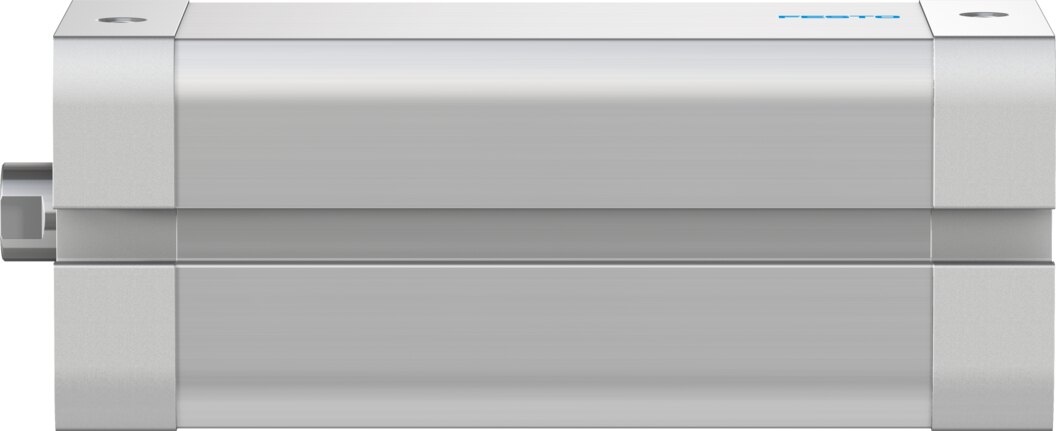

The ISO 21287 compact cylinder ADN-25-80-I-P-A provides 295 N advance and 247 N retracting force at 6 bar while its Ø 25 mm piston and 80 mm stroke take up little space. The load is coupled via the piston rod with female thread M6, compressed air is supplied via M5. For position detection the ADN-25-80-I-P-A is prepared for proximity switches.

Benefits at a glance

• Theoretical force at 6 bar: 295 N advance, 247 N return
• Elastic end-position cushioning P at both ends, up to 0.3 J impact energy
• Piston rod with female thread M6 made of high-alloy steel
• Position detection via proximity switches
• Pressure range 0.6 to 10 bar
• Mounting dimensions to ISO 21287, interchangeable with other compact cylinders to this standard

Use

The ADN-25-80-I-P-A handles pushing, lifting and ejecting movements over 80 mm in assembly systems, packaging machines and feeding equipment. The Ø 25 mm cylinder runs on compressed air to ISO 8573-1:2010 [7:4:4] and can be installed in any orientation.
