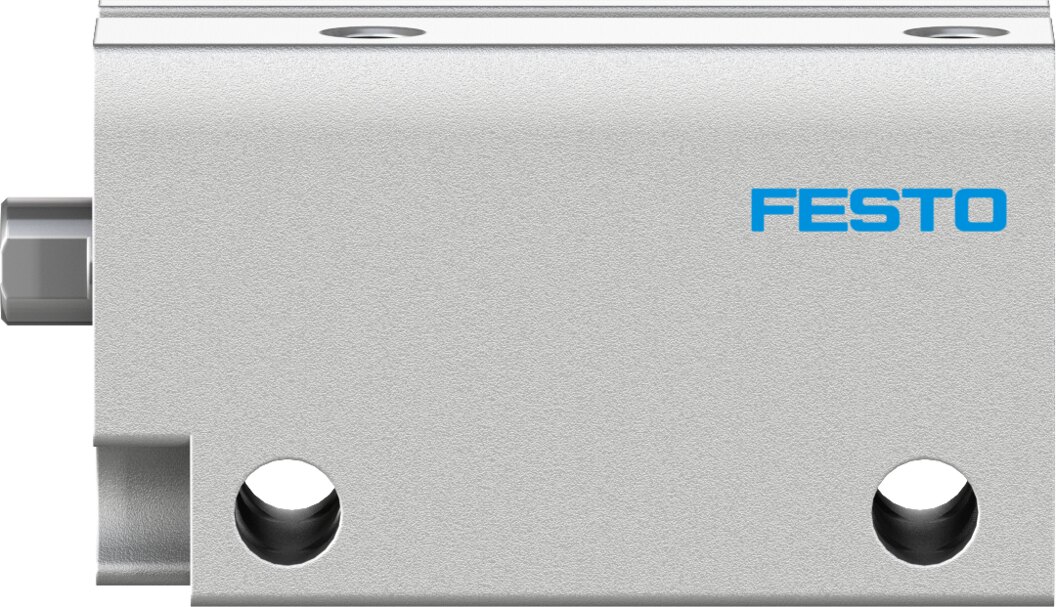

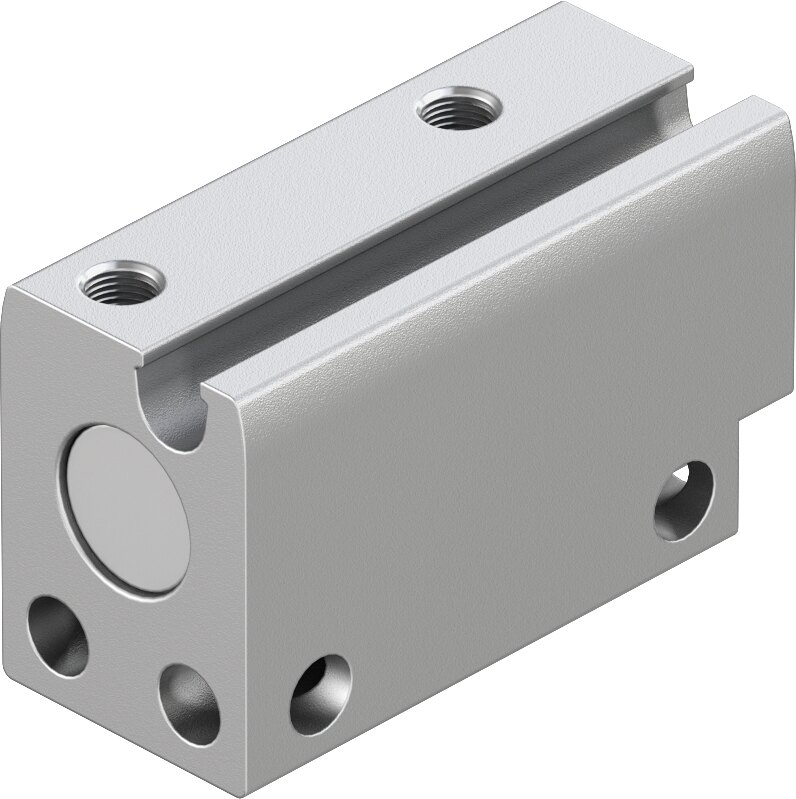

Compact cylinder double-acting Ø 6 mm stroke 10 mm ADN-S-6-10-I-A-F1A - Festo 8142512

The Festo ADN-S-6-10-I-A-F1A is a double-acting compact cylinder with a 6 mm piston and 10 mm stroke. At 6 bar it reaches 17 N advance and 9.4 N return force.

Benefits

• Double-acting: 17 N on advance, 9.4 N on return at 6 bar
• Compact and light: 6 mm piston, port M3, product weight 13.6 g
• For battery manufacturing: F1A version with reduced Cu/Zn/Ni values
• Position sensing: prepared for proximity switches, port M3
• Wide pressure range: 2 to 8 bar operating pressure, -10 to 60 °C ambient temperature
• Corrosion resistance class CRC 2: piston rod in high-alloy stainless steel

Applications

Small-parts assembly, placement and light clamping are the domain of the ADN-S-6-10-I-A-F1A with a 6 mm piston. The short 10 mm stroke keeps cycle times short and air consumption low. Mount the ADN-S-6-10-I-A-F1A via through-holes in the housing. According to Festo the product weight is 13.6 g.
