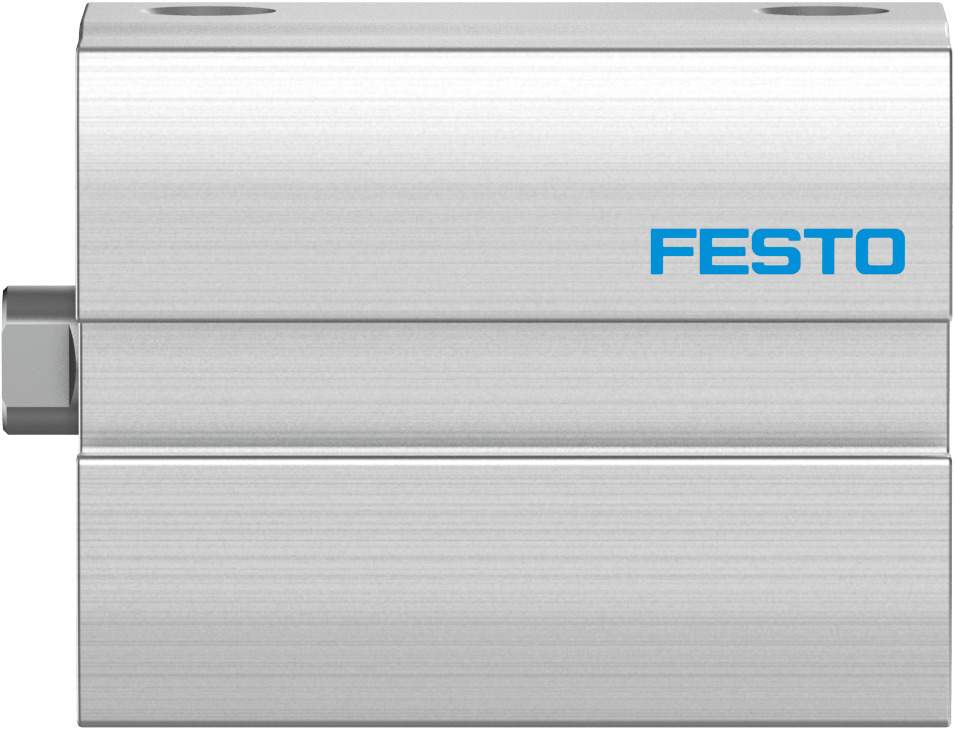

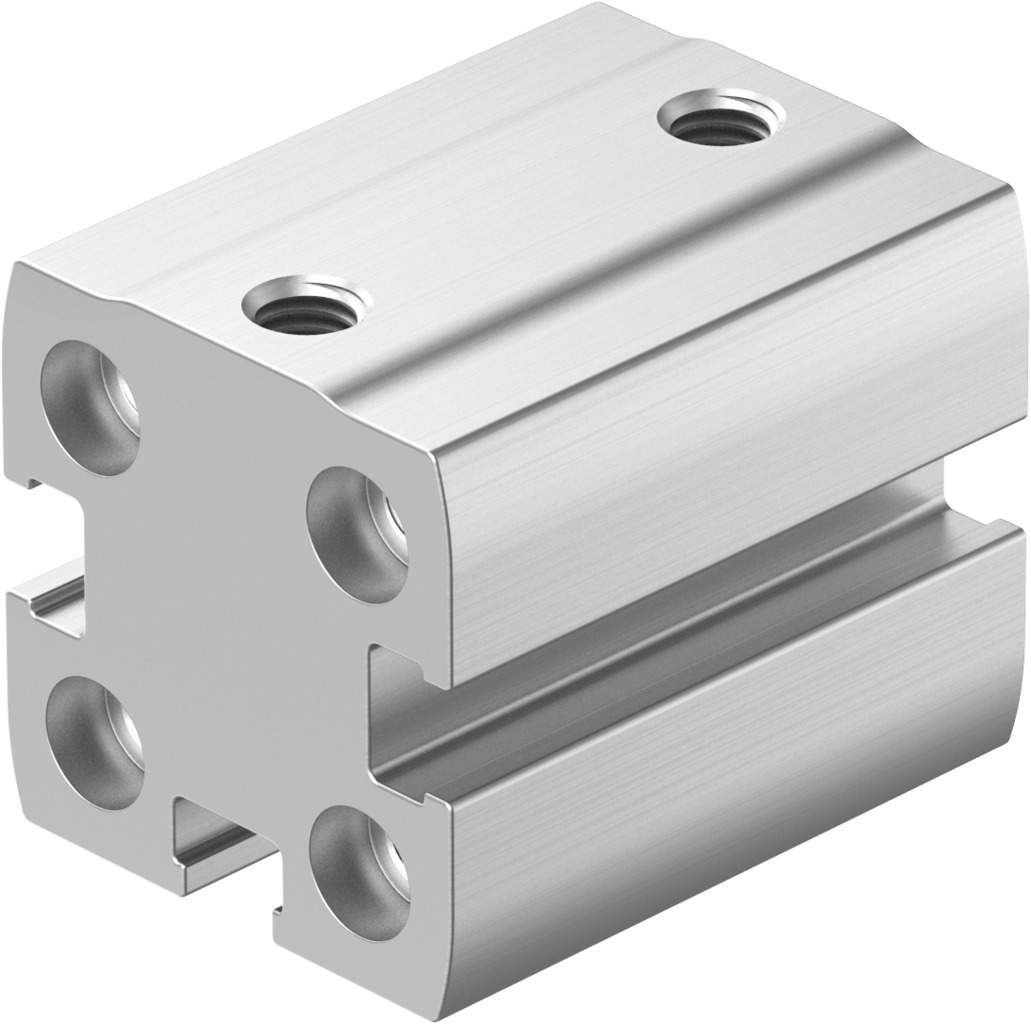

Compact cylinder double-acting Ø 12 mm stroke 20 mm ADN-S-12-20-I-P-A - Festo 8076414

Where space in the stroke direction is short, the ADN-S-12-20-I-P-A fits in: double-acting compact cylinder, 12 mm piston, 20 mm stroke, 68 N advance and 51 N return force at 6 bar.

Key benefits

• Easy sizing: 68 N forward and 51 N back at 6 bar according to Festo
• Quiet stop: elastic cushioning at both ends absorbs 0.07 J in the end positions
• Sensor-ready: end positions detectable via proximity switch, air port M5
• Wide pressure range: 1 to 10 bar operating pressure, 0 to 80 °C ambient temperature
• Corrosion resistance class CRC 1: piston rod in high-alloy stainless steel
• Cleanroom and paint shops: class 5 to ISO 14644-1, LABS (PWIS) conformity VDMA24364-B2-L

Applications

Small-parts assembly, placement and light clamping are the domain of the ADN-S-12-20-I-P-A with a 12 mm piston. For mounting, the ADN-S-12-20-I-P-A uses through-holes, female threads or Festo accessories, air port M5. For sizing, Festo states 33 g basic weight and 6 g moving mass at 0 mm stroke, plus 15 g and 2 g respectively per 10 mm stroke.
