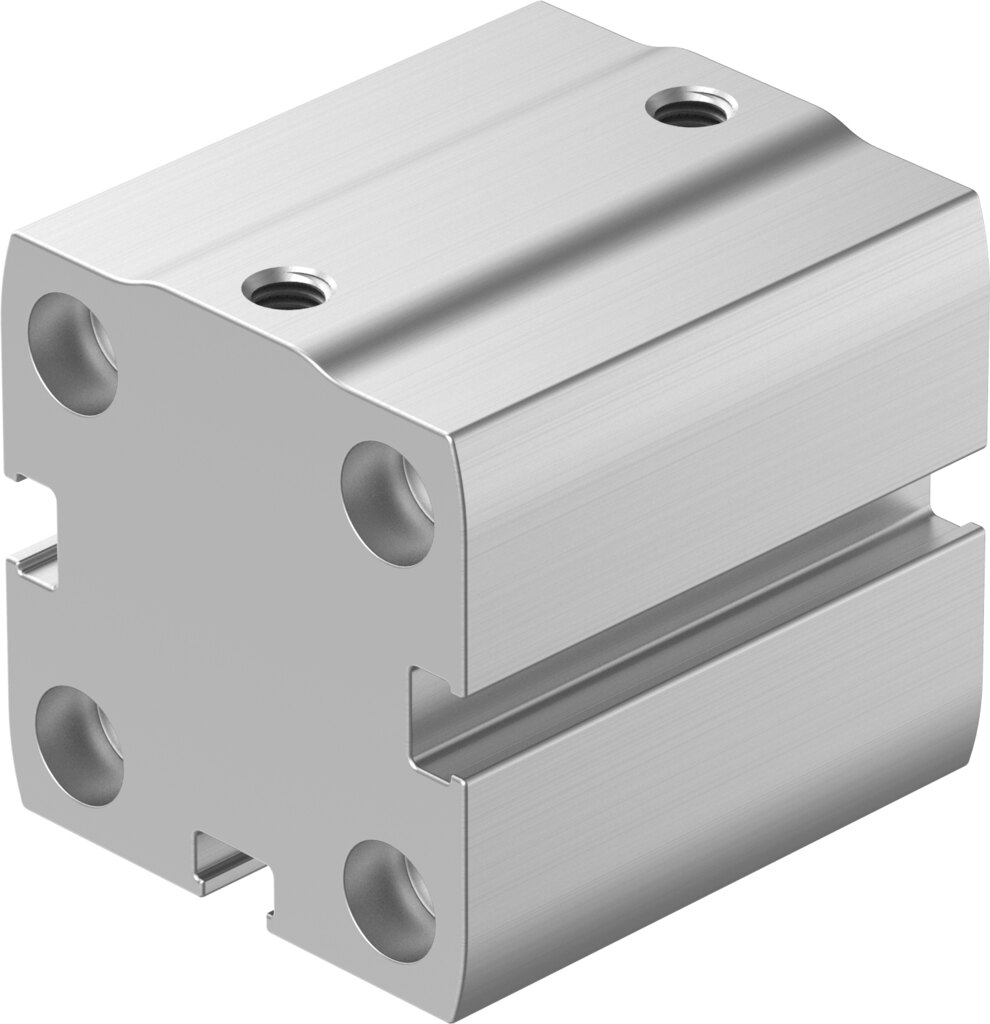

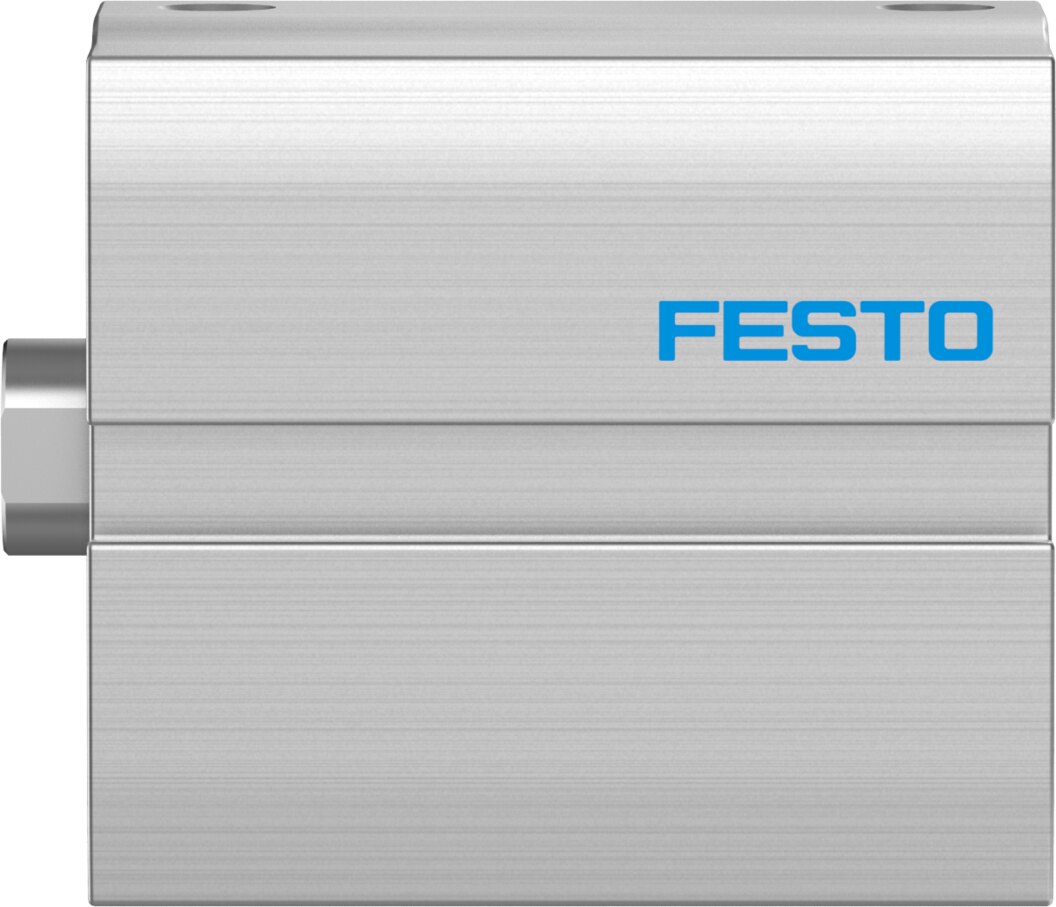

Compact cylinder double-acting Ø 25 mm stroke 15 mm ADN-S-25-15-I-P-A - Festo 8076358

Where space in the stroke direction is short, the ADN-S-25-15-I-P-A fits in: double-acting compact cylinder, 25 mm piston, 15 mm stroke, 295 N advance and 247 N return force at 6 bar.

Benefits at a glance

• Double-acting: 295 N on advance, 247 N on return at 6 bar
• Gentle end positions: elastic cushioning rings at both ends, impact energy up to 0.3 J
• Sensor-ready: end positions detectable via proximity switch, air port M5
• Flexible use: operating pressure 0.6 to 10 bar, any mounting position
• Corrosion resistance class CRC 1: piston rod in high-alloy stainless steel
• Cleanroom and paint shops: class 5 to ISO 14644-1, LABS (PWIS) conformity VDMA24364-B2-L

Applications

On assembly lines the ADN-S-25-15-I-P-A with a 25 mm diameter handles clamping, stopping and positioning tasks. For mounting, the ADN-S-25-15-I-P-A uses through-holes, female threads or Festo accessories, air port M5. For sizing, Festo states 88 g basic weight and 25 g moving mass at 0 mm stroke, plus 30 g and 6 g respectively per 10 mm stroke.
