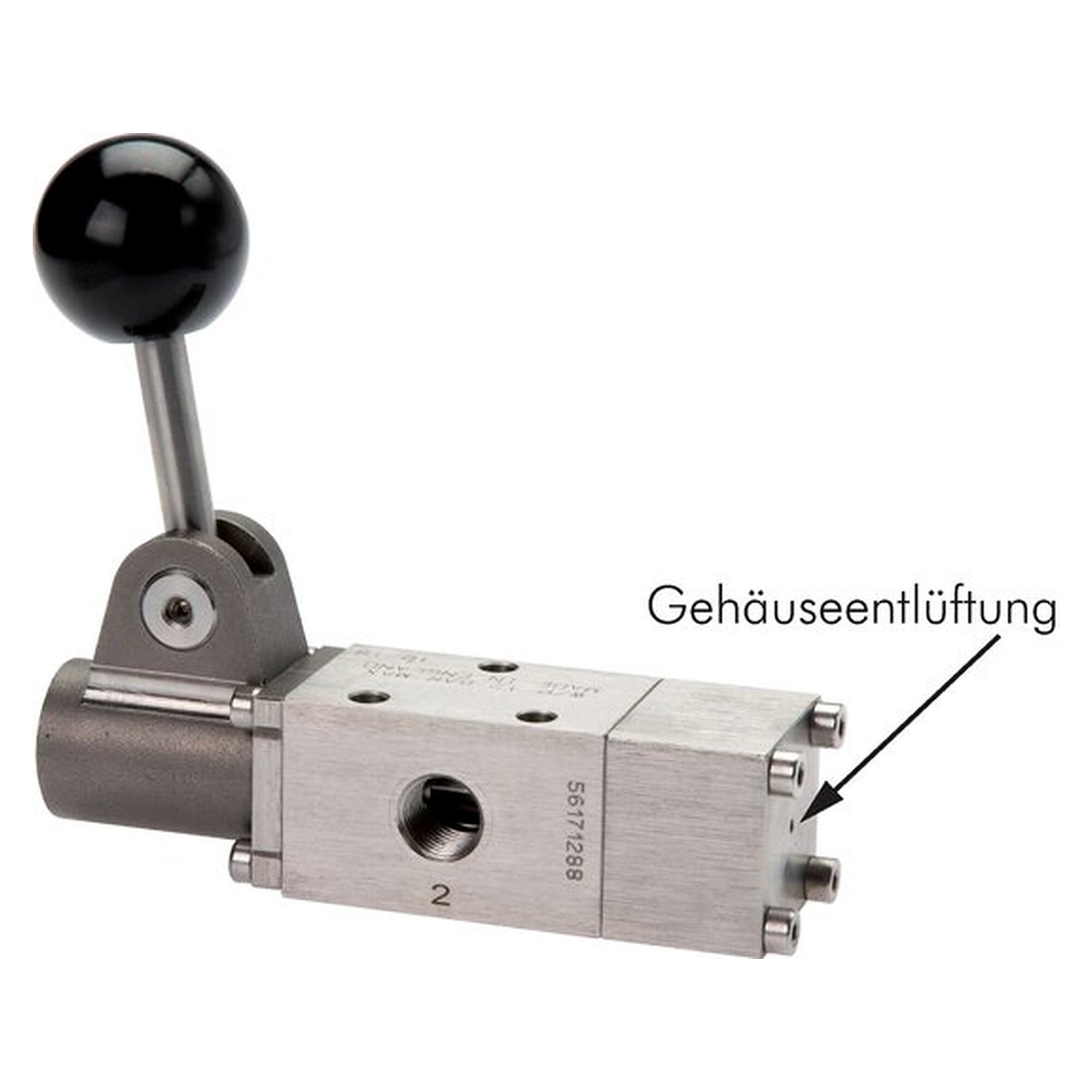

This 5/2-way hand lever valve controls the air path in a compressed air system. The switching function is Detent. The materials are body and spool 1.4436, seals FKM.
5/2-way hand lever valve, Detent, G 1/4", 700 l/min, -0.95 to 12 bar, exhaust 2x G 1/4"
FLUIDICS EQUIPMENT
Original product
Net price (excl. VAT)
€2,204.40
Item
FL-041809
Manufacturer no.
HR 05 520 ESG
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.HR 05 520 ESG
EAN4050571359577
Customs tariff number84812090
ConditionNew
Artikel
FL-041809
Frequently Bought Together
-
This Item:
€2,204.40
-
Valve terminal, 16 stations, CC-Link, outlets M 5 at valves (top), 32x M 5, 24 V DC
€1,590.21
-
2/2-way solenoid valve, de-energised closed (NC), G 1", 24 V AC, 0 to 16 bar, Kv 216 l/min, DN 27.5
€752.15
Total price
This 5/2-way hand lever valve is hand operated and switches the air path without auxiliary power. The switching function is Detent. The connection is G 1/4". The operating pressure is stated as -0.95 to 12 bar. The materials are body and spool 1.4436, seals FKM.
Advantages
- Operating pressure of -0.95 to 12 bar, which fixes the permissible working range.
- Materials body and spool 1.4436, seals FKM, matched to the intended service.
- Temperature range of -20 to +180 °C, which covers use in the machine room as well as outdoors.
- Connection G 1/4" and exhaust 2x G 1/4", so the piping follows the existing line network.
- Media oiled and non-oiled compressed air, non-toxic gases (50 µm), so no separate treatment is needed.
Technical data
| Feature | Value |
|---|---|
| Function | Detent |
| Switching function | 5/2-way |
| Thread | G 1/4" |
| Exhaust thread | 2x G 1/4" |
| Flow rate [l/min] | 700 |
| Actuating force at 10 bar [N] | 16 |
| Material body and spool | 1.4436 |
| Material seals | FKM |
| Temperature range | -20 to +180 °C |
| Operating pressure | -0.95 to 12 bar |
| Media | oiled and non-oiled compressed air, non-toxic gases (50 µm) |
| Pressure inlet | possible at any port |
Applications
- Control of double-acting cylinders with an air demand up to 700 l/min.
- Sequencing of pneumatic axes with connection G 1/4" in handling equipment.
- Control of pneumatic flaps, gates and diverters in conveying equipment.
- Cycled feeding and clamping units in fixture building.
| Weight | 1.000000 |
|---|---|
| Manufacturer | Fluidics equipment |
| Hersteller-Nr | HR 05 520 ESG |
| EAN | 4050571359577 |
| Zolltarifnummer | 84812090 |
| GPSR Herstellerdaten | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Thread | G 1/4 |
| Function | Raste |
| Flow rate [l/min] | 700 |
