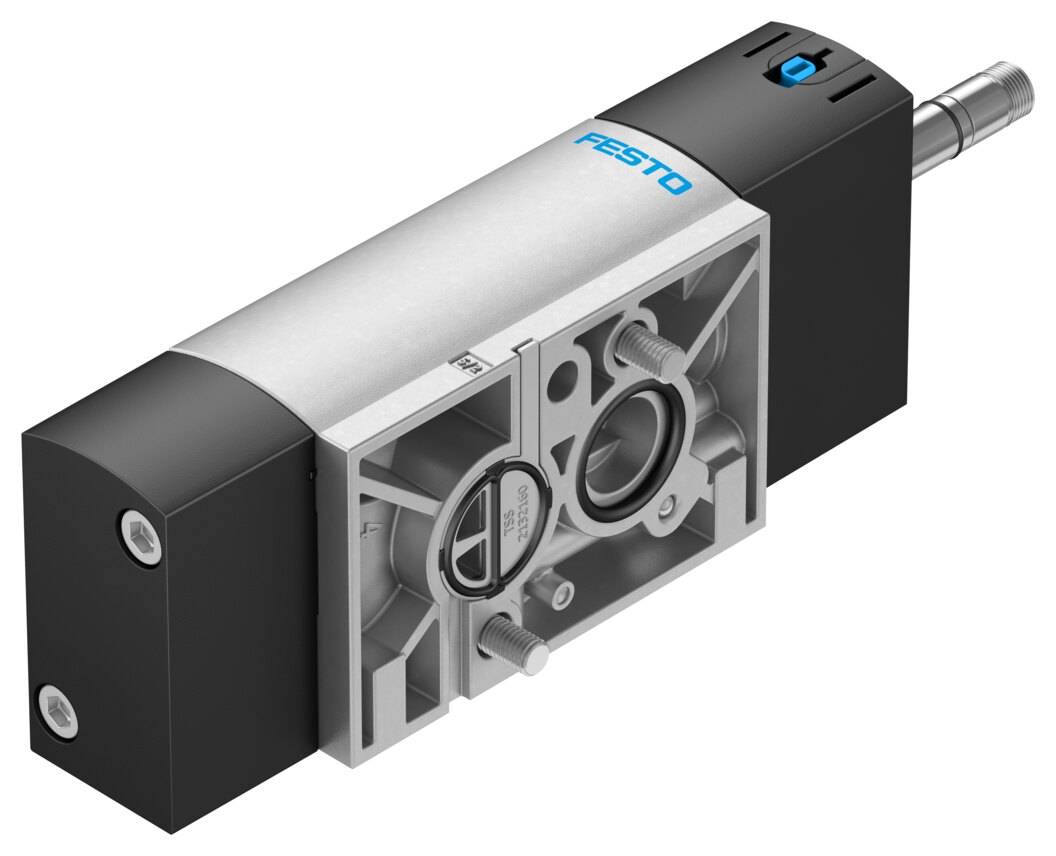

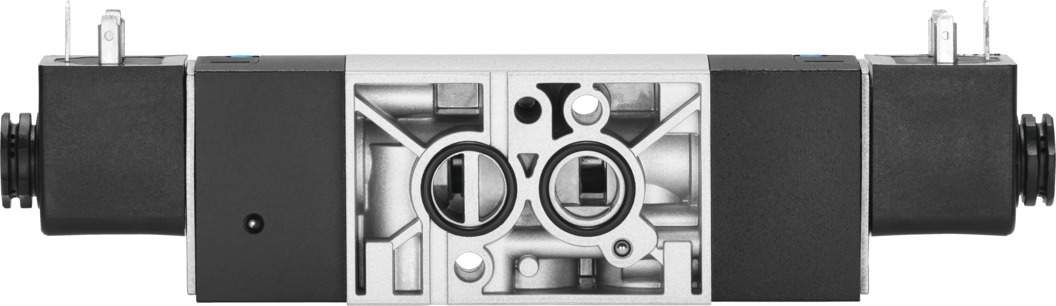

Solenoid valve 5/2-way or 3/2-way, convertible G1/4 VSNC-FTC-M52-MD-G14-FN-1A1 - Festo 577297

Festo ✓ Original product Brand new

As a 5/2-way valve convertible to 3/2-way, the Festo solenoid valve VSNC-FTC-M52-MD-G14-FN-1A1 delivers 800 l/min standard nominal flow rate. Also 2.5 to 8 bar operating pressure, G1/4 port and 32 mm width. The NAMUR connection pattern allows mounting directly on the quarter-turn actuator.

Net
€98.30
excl. VAT
Item FES-577297
Manufacturer no. VSNC-FTC-M52-MD-G14-FN-1A1
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The solenoid valve VSNC-FTC-M52-MD-G14-FN-1A1 works as a 5/2-way valve convertible to 3/2-way and reaches 800 l/min standard nominal flow rate at 2.5 to 8 bar operating pressure. It also offers G1/4 port, 32 mm width and 24 V DC operating voltage.

Benefits

  • Flow: 800 l/min standard nominal flow rate at only 32 mm width
  • Pressure range: 2.5 to 8 bar
  • Switching times: 16 ms on, 120 ms off
  • Rugged: IP65/IP67 protection, corrosion resistance class 2
  • Interface: NAMUR connection pattern to VDI/VDE 3845
  • Temperature: -20 to 60 °C ambient

Applications

The VSNC-FTC-M52-MD-G14-FN-1A1 mounts directly on quarter-turn actuators with NAMUR interface, so no tubing is needed between valve and actuator. Mounting: with through-hole. The VSNC-FTC-M52-MD-G14-FN-1A1 operates on compressed air to ISO 8573-1:2010 [7:4:4], lubricated operation possible (in which case lubricated operation will always be required).

Technical data

TypeVSNC-FTC-M52-MD-G14-FN-1A1
Festo part number577297

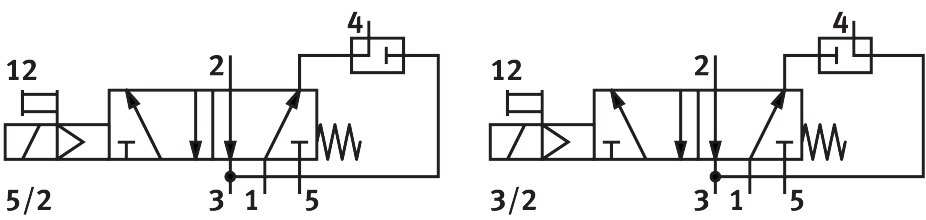

Valve function5/2-way or 3/2-way, convertible
Type of actuationelectrical
Width32 mm
Standard nominal flow rate800 l/min
pneumatic working portconnection pattern to NAMUR
Operating voltage24 V DC
Operating pressure2.5 to 8 bar
Designpoppet seat
Reset methodmechanical spring
Certificate issuing authorityDNVGL-TAA000011J
Degree of protectionIP65, IP67, with plug socket, to IEC 60529
Exhaust-air functioncan be throttled
Sealing principlesoft
Mounting positionany
Conforms to standardVDI/VDE 3845 (NAMUR)
Manual overridedetenting, non-detenting
Type of pilotingpiloted
Pilot air supplyinternal
Flow directionnon-reversible
Overlapnegative overlap
Signal status displaywith accessories
b value0.15
C value3.96 l/sbar
Standard nominal flow rate, exhaust return 4 to 3110 l/min
Switching time off120 ms
Switching time on16 ms
Duty cycle100%
Coil characteristics24 V DC: 0.7 W
Permissible voltage fluctuations± 10 %
Operating mediumcompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumlubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B2-L
Media temperature-20 to 60 °C
Ambient temperature-20 to 60 °C
Product weight495 g
Electrical connectionto EN 175301-803
Type of mountingwith through-hole
Breather connectionnot ducted
Pneumatic connection, port 1G1/4
Pneumatic connection, port 2connection pattern to NAMUR
Pneumatic connection, port 3G1/4
Pneumatic connection, port 4connection pattern to NAMUR
Pneumatic connection, port 5G1/4
Note on materialsRoHS compliant
Material sealsNBR
Material housingwrought aluminium alloy
Material screwsgalvanised steel
Weight (shipping)0.55 kg
Weight0.55 kg
ManufacturerFesto
Hersteller-NrVSNC-FTC-M52-MD-G14-FN-1A1
EAN4052568262693
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
ThreadG 1/4
Seal materialNBR
MediumCompressed air
Function5/2 or 3/2 convertible
Flow rate [l/min]800
Actuation typeElectrical
NormNAMUR, VDI/VDE 3845
SeriesVSNC
Betriebsdruck max [bar]8
Pneumatic connectionG1/4
Temperaturbereich-20-60 °C
