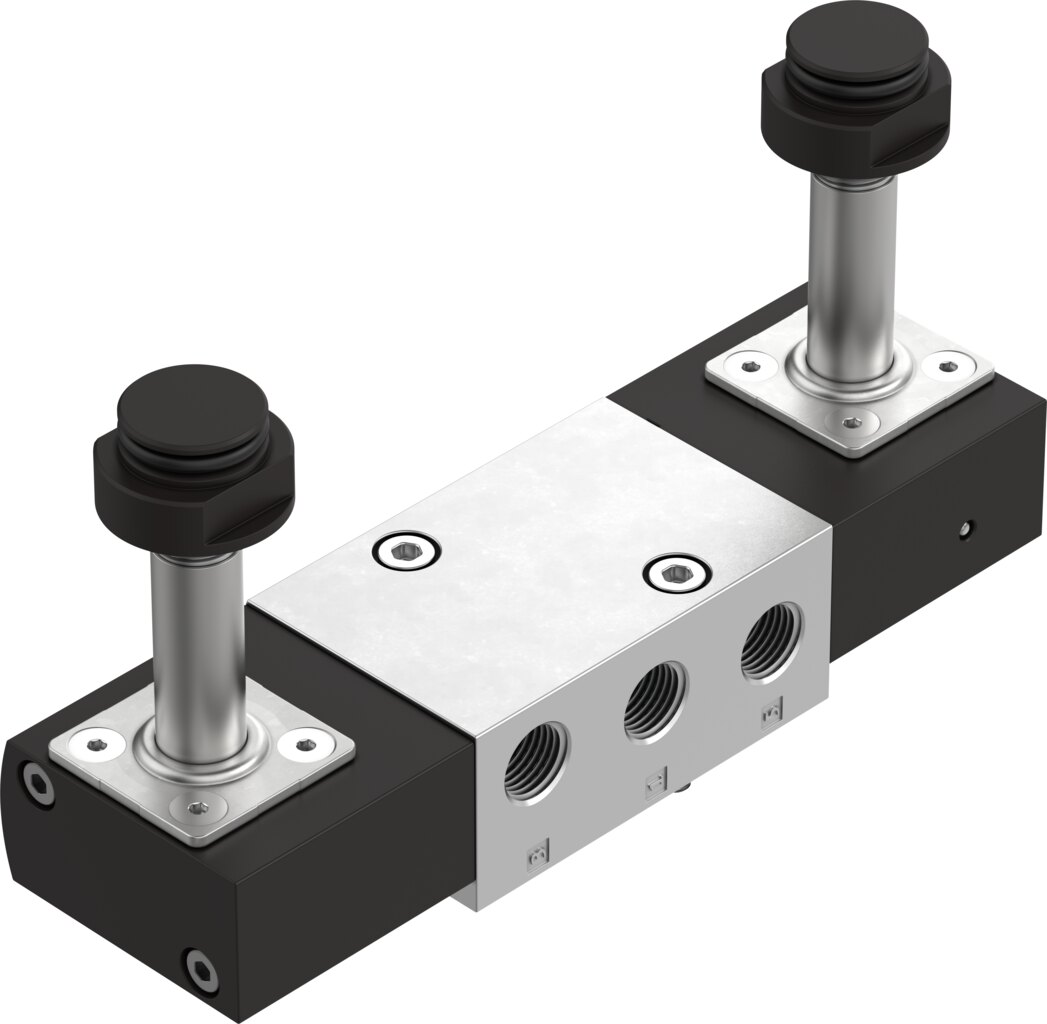

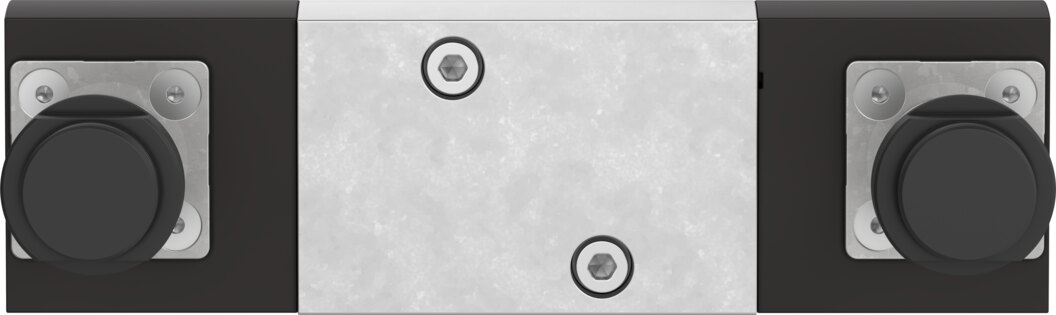

Solenoid valve 5/2-way double solenoid 1/4 NPT VSNC-FT-B52-N14-F19A - Festo 8116388

Festo ✓ Original product Brand new

As a 5/2-way valve (double solenoid), the Festo solenoid valve VSNC-FT-B52-N14-F19A delivers 1000 l/min standard nominal flow rate. Designed for 1.5 to 8 bar operating pressure, 1/4 NPT port and 32 mm width. NAMUR interface for quarter-turn actuators, no tubing needed.

Net
€206.52
excl. VAT
Item FES-8116388
Manufacturer no. VSNC-FT-B52-N14-F19A
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

With 1000 l/min standard nominal flow rate, the solenoid valve VSNC-FT-B52-N14-F19A switches as a 5/2-way valve (double solenoid) at 1.5 to 8 bar operating pressure. Further ratings: 1/4 NPT port and 32 mm width.

Benefits at a glance

  • Flow: 1000 l/min standard nominal flow rate at only 32 mm width
  • Pressure range: 1.5 to 8 bar
  • Reversing time: 435 ms
  • Rugged: corrosion resistance class 2
  • Interface: NAMUR connection pattern to VDI/VDE 3845
  • Temperature: -20 to 60 °C ambient

Applications

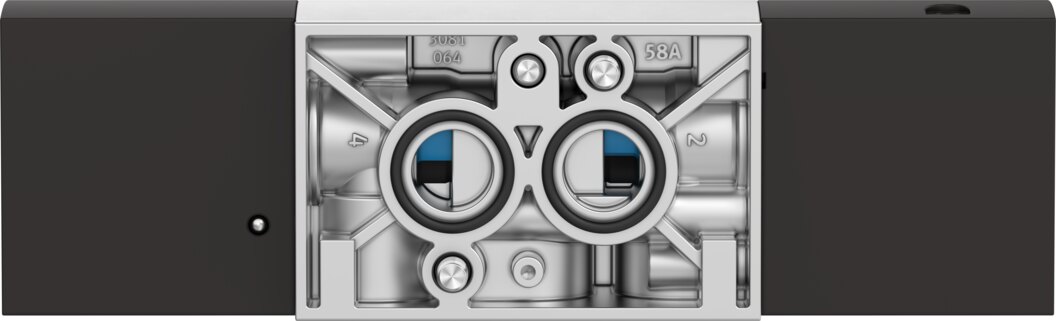

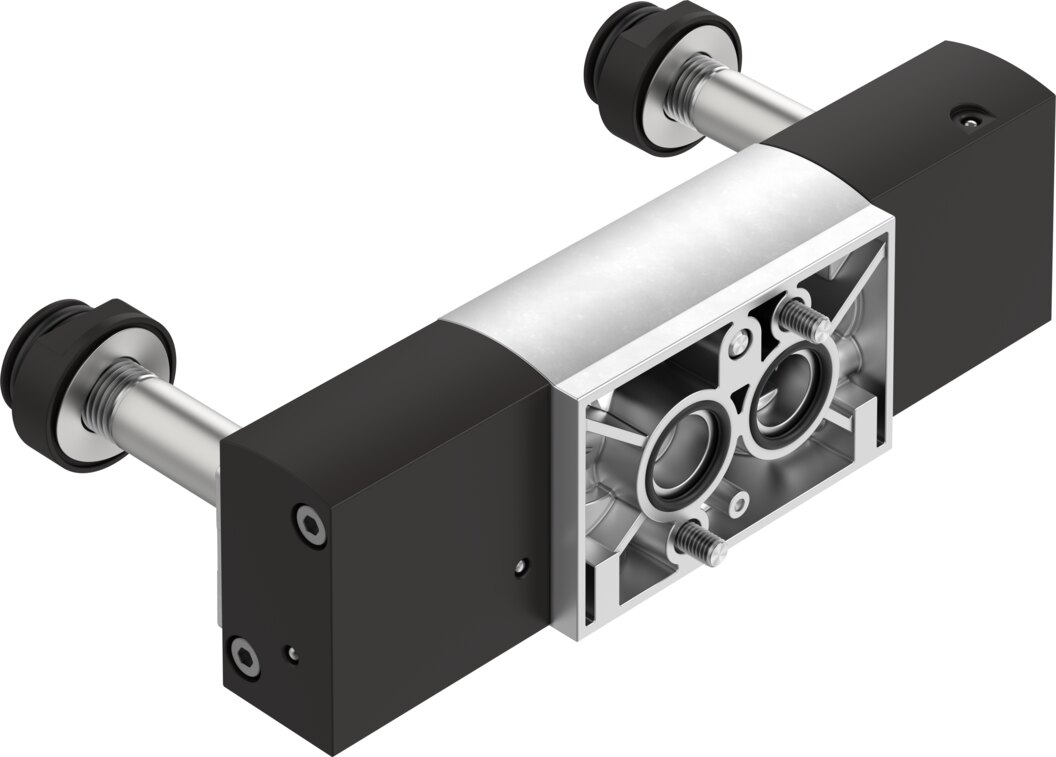

Thanks to the NAMUR connection pattern, the VSNC-FT-B52-N14-F19A mounts directly on pneumatic quarter-turn actuators without tubing between valve and actuator. Please order the solenoid coil for the VSNC-FT-B52-N14-F19A separately. Mounting: with through-hole. Operating medium for the VSNC-FT-B52-N14-F19A: compressed air to ISO 8573-1:2010 [7:4:4], lubricated operation possible (in which case lubricated operation will always be required).

Technical data

TypeVSNC-FT-B52-N14-F19A
Festo part number8116388
Valve function5/2-way, double solenoid
Type of actuationelectrical
Width32 mm
Standard nominal flow rate1000 l/min
pneumatic working portconnection pattern to NAMUR
Operating voltagevia solenoid coil, must be ordered separately
Operating pressure1.5 to 8 bar
Designpoppet seat
Exhaust-air functioncan be throttled
Sealing principlesoft
Mounting positionany
Conforms to standardVDI/VDE 3845 (NAMUR)
Manual overridenone
Type of pilotingpiloted
Pilot air supplyinternal
Flow directionnon-reversible
Overlapnegative overlap
Switching time reversal435 ms
Duty cycle100%
Coil characteristicssee solenoid coil, to be ordered separately
Operating mediumcompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumlubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B2-L
Media temperature-20 to 60 °C
Ambient temperature-20 to 60 °C
Product weight613 g
Type of mountingwith through-hole
Breather connectionnot ducted

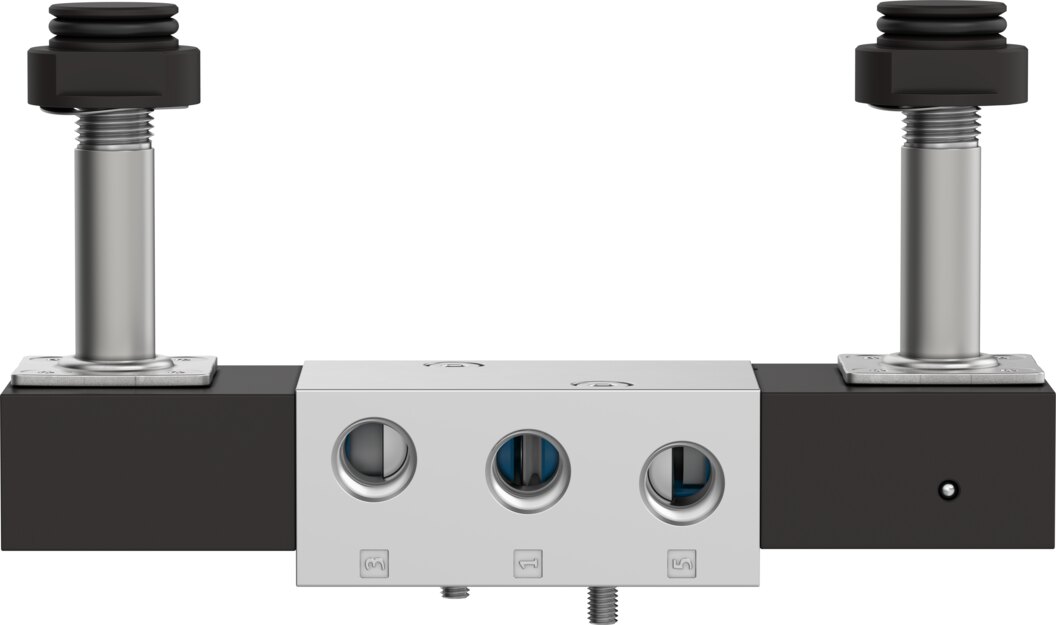

Pneumatic connection, port 11/4 NPT
Pneumatic connection, port 2connection pattern to NAMUR
Pneumatic connection, port 31/4 NPT
Pneumatic connection, port 4connection pattern to NAMUR
Pneumatic connection, port 51/4 NPT
Note on materialsRoHS compliant
Material sealsNBR
Material housingwrought aluminium alloy
Material screwsgalvanised steel
ManufacturerFesto
Hersteller-NrVSNC-FT-B52-N14-F19A
EAN4052568558321
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
ThreadNPT 1/4
Seal materialNBR
MediumCompressed air
Function5/2 bistable
Flow rate [l/min]1000
Actuation typeElectrical
NormNAMUR, VDI/VDE 3845
SeriesVSNC
Betriebsdruck max [bar]8
Pneumatic connectionNPT 1/4
Temperaturbereich-20-60 °C
