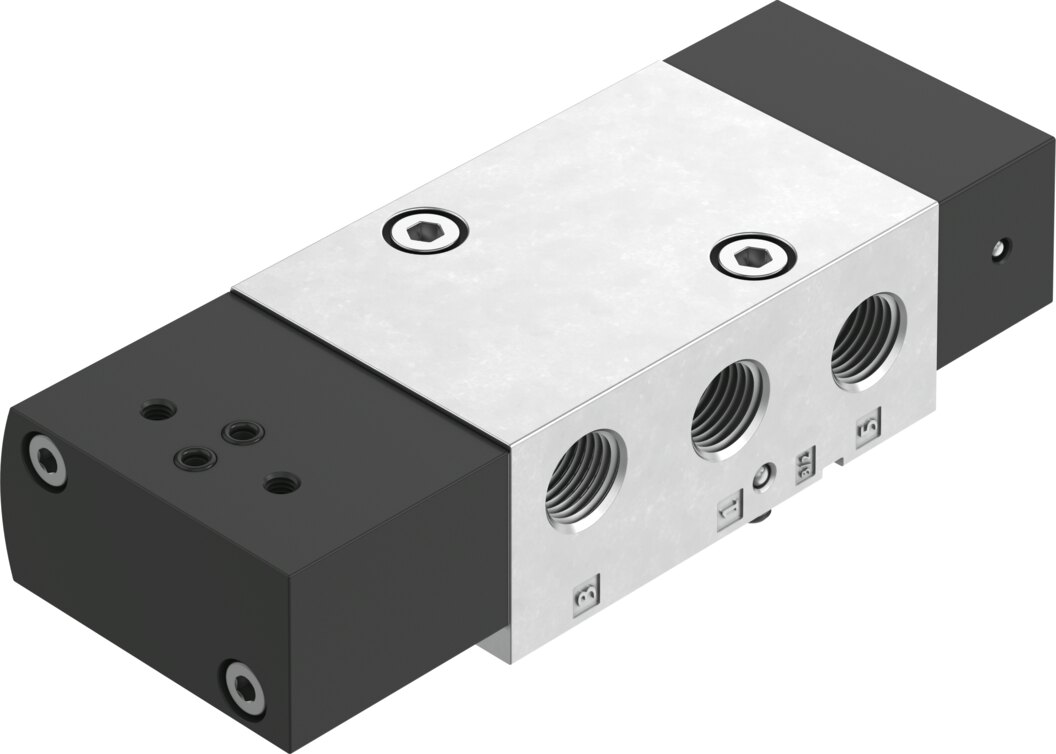

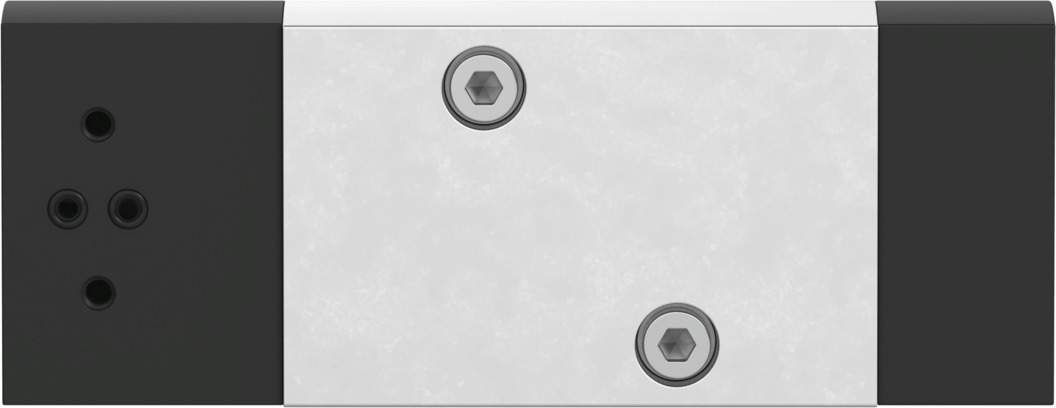

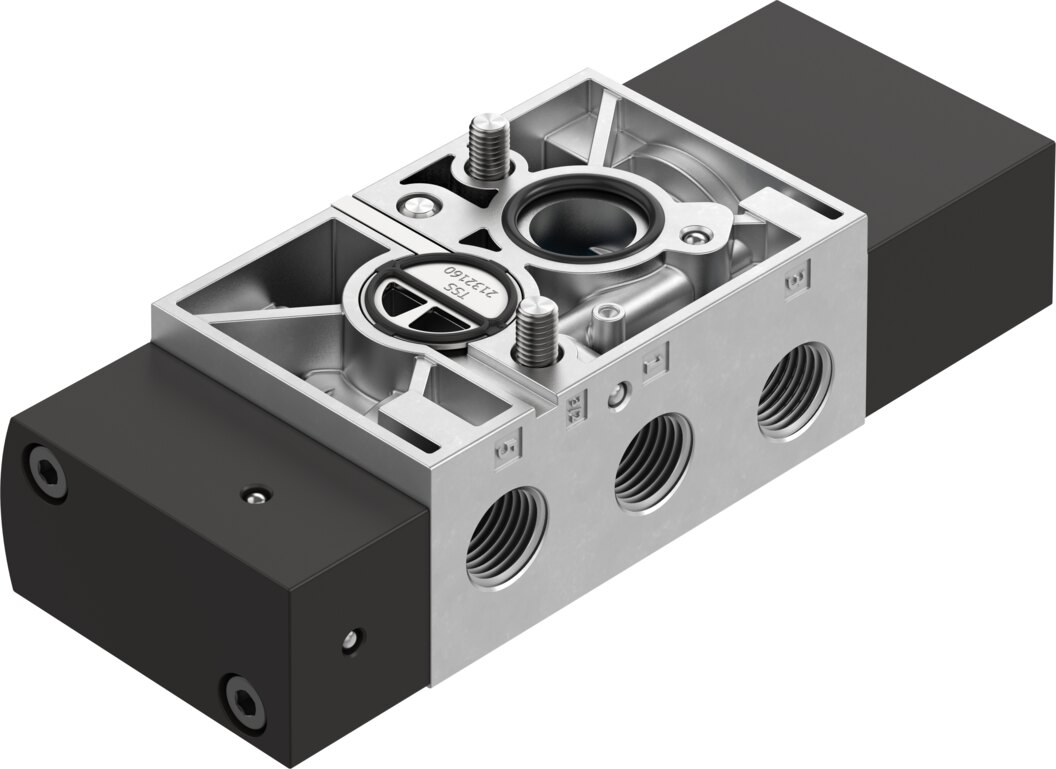

Solenoid valve 5/2-way or 3/2-way, convertible 1/4 NPT VSNC-FTC-M52-M-N14-P2 - Festo 8114698

Festo ✓ Original product Brand new

As a 5/2-way valve convertible to 3/2-way, the Festo solenoid valve VSNC-FTC-M52-M-N14-P2 delivers 800 l/min standard nominal flow rate. Designed for 2.5 to 8 bar operating pressure, 1/4 NPT port and 32 mm width. Mounts directly on the quarter-turn actuator via the NAMUR interface.

Net
€89.54
excl. VAT
Item FES-8114698
Manufacturer no. VSNC-FTC-M52-M-N14-P2
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

As a 5/2-way valve convertible to 3/2-way, the Festo solenoid valve VSNC-FTC-M52-M-N14-P2 delivers 800 l/min standard nominal flow rate at 2.5 to 8 bar operating pressure. The piloted design comes with 1/4 NPT port and 32 mm width.

Benefits

  • Flow: 800 l/min standard nominal flow rate at only 32 mm width
  • Pressure range: 2.5 to 8 bar
  • Switching times: 4 ms on, 6 ms off
  • Rugged: corrosion resistance class 2
  • Interface: NAMUR connection pattern to VDI/VDE 3845
  • Temperature: -20 to 60 °C ambient

Applications

The VSNC-FTC-M52-M-N14-P2 mounts directly on quarter-turn actuators with NAMUR interface, so no tubing is needed between valve and actuator. The solenoid coil is not included with the VSNC-FTC-M52-M-N14-P2 and is ordered separately. Mounting: with through-hole. Operating medium for the VSNC-FTC-M52-M-N14-P2: compressed air to ISO 8573-1:2010 [7:4:4], lubricated operation possible (in which case lubricated operation will always be required).

Technical data

TypeVSNC-FTC-M52-M-N14-P2
Festo part number8114698

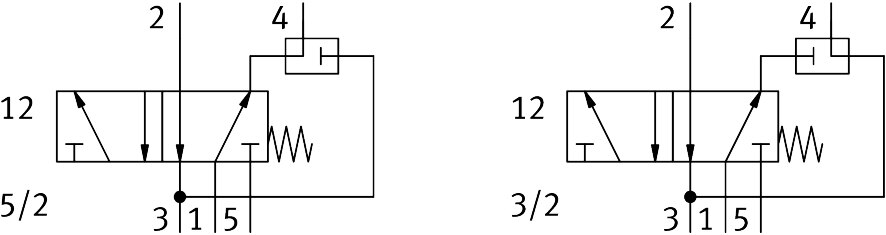

Valve function5/2-way or 3/2-way, convertible
Type of actuationelectrical
Width32 mm
Standard nominal flow rate800 l/min

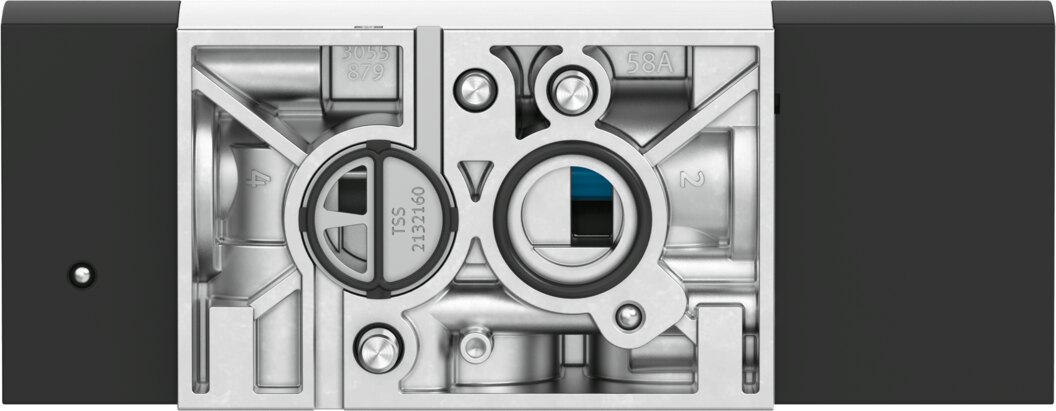

pneumatic working portconnection pattern to NAMUR
Operating voltagevia solenoid coil, must be ordered separately
Operating pressure2.5 to 8 bar
Designpoppet seat
Reset methodmechanical spring
Exhaust-air functioncan be throttled
Sealing principlesoft
Mounting positionany
Conforms to standardVDI/VDE 3845 (NAMUR)
Manual overridenone
Type of pilotingpiloted
Pilot air supplyinternal
Flow directionnon-reversible
Overlapnegative overlap
Standard nominal flow rate, exhaust return 4 to 3110 l/min
Switching time off6 ms
Switching time on4 ms
Duty cycle100%
Coil characteristicssee solenoid coil, to be ordered separately
Operating mediumcompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumlubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B2-L
Media temperature-20 to 60 °C
Ambient temperature-20 to 60 °C
Product weight382 g
Type of mountingwith through-hole
Breather connectionnot ducted
Pneumatic connection, port 11/4 NPT
Pneumatic connection, port 2connection pattern to NAMUR
Pneumatic connection, port 31/4 NPT
Pneumatic connection, port 4connection pattern to NAMUR
Pneumatic connection, port 51/4 NPT
Note on materialsRoHS compliant
Material sealsNBR
Material housingwrought aluminium alloy
Material screwsgalvanised steel
ManufacturerFesto
Hersteller-NrVSNC-FTC-M52-M-N14-P2
EAN4052568465742
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
ThreadNPT 1/4
Seal materialNBR
MediumCompressed air
Function5/2 or 3/2 convertible
Flow rate [l/min]800
Actuation typeElectrical
NormNAMUR, VDI/VDE 3845
SeriesVSNC
Betriebsdruck max [bar]8
Pneumatic connectionNPT 1/4
Temperaturbereich-20-60 °C
