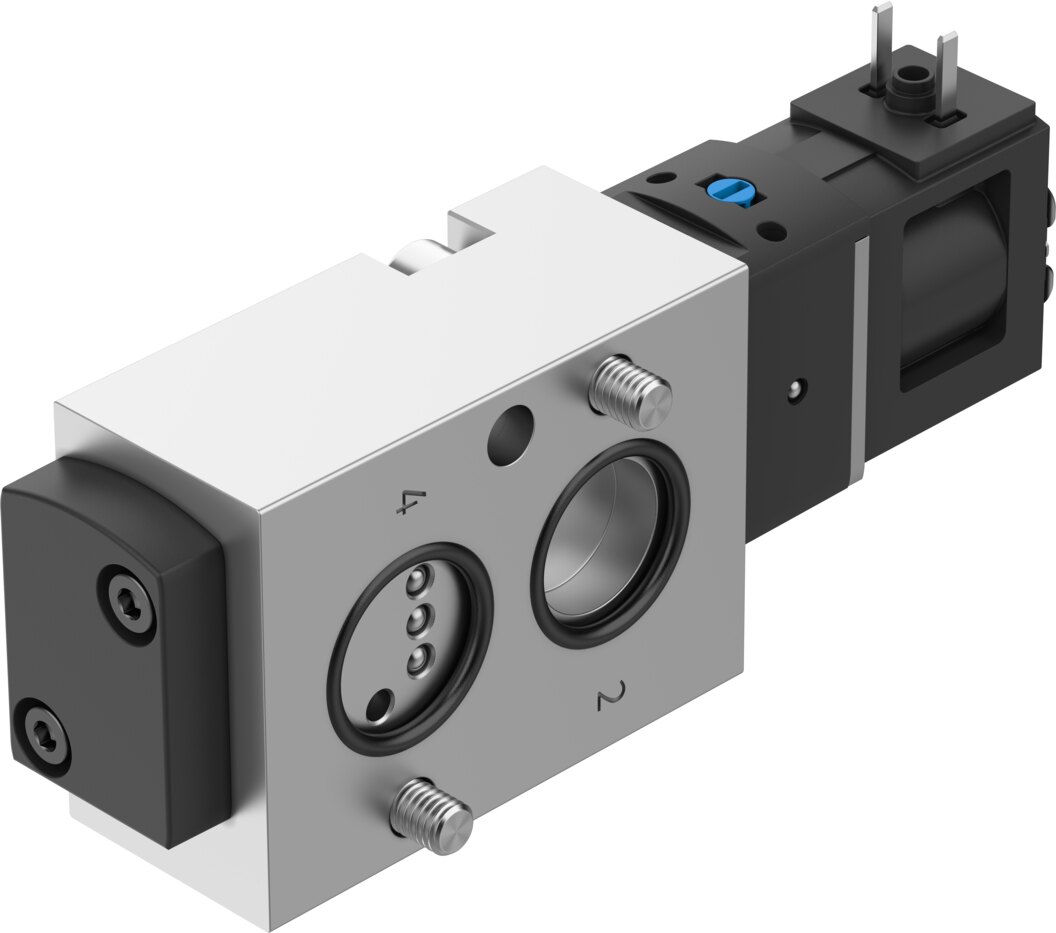

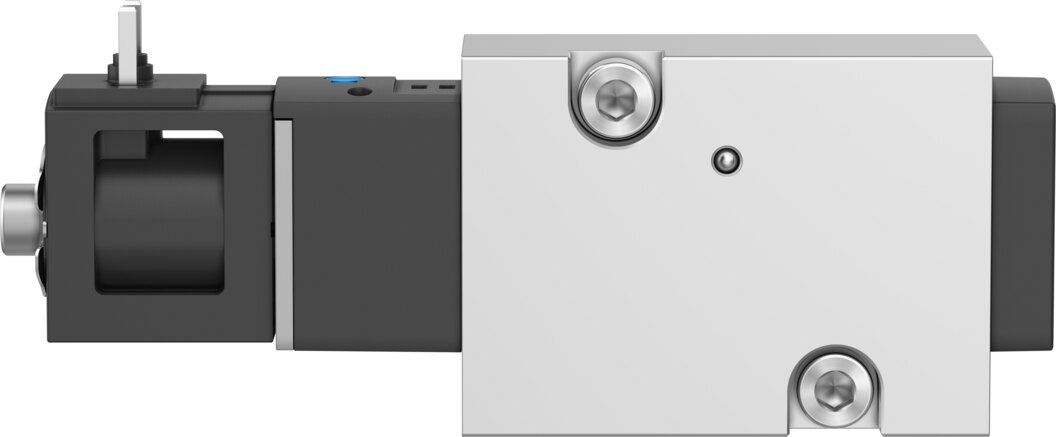

Solenoid valve 3/2-way single solenoid, closed G1/8 VSNC-FK-M32C-RD-G18-1C1-S - Festo 8166611
As a 3/2-way valve (single solenoid, closed), the Festo solenoid valve VSNC-FK-M32C-RD-G18-1C1-S delivers 400 l/min standard nominal flow rate. Ratings: 2.5 to 8 bar operating pressure, G1/8 port and 25.5 mm width. The NAMUR connection pattern allows mounting directly on the quarter-turn actuator.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
As a 3/2-way valve (single solenoid, closed), the Festo solenoid valve VSNC-FK-M32C-RD-G18-1C1-S delivers 400 l/min standard nominal flow rate at 2.5 to 8 bar operating pressure. It also offers G1/8 port, 25.5 mm width and 24 V DC operating voltage.
Benefits
- Flow: 400 l/min standard nominal flow rate at only 25.5 mm width
- Pressure range: 2.5 to 8 bar
- Switching times: 50 ms on, 50 ms off
- Rugged: IP65 protection, corrosion resistance class 1
- Interface: NAMUR connection pattern to VDI/VDE 3845
- Temperature: -20 to 50 °C ambient
Applications
The VSNC-FK-M32C-RD-G18-1C1-S mounts directly on quarter-turn actuators with NAMUR interface, so no tubing is needed between valve and actuator. Mounting: with through-hole. The VSNC-FK-M32C-RD-G18-1C1-S operates on compressed air to ISO 8573-1:2010 [7:4:4], lubricated operation possible (in which case lubricated operation will always be required).
Technical data
| Type | VSNC-FK-M32C-RD-G18-1C1-S |
|---|---|
| Festo part number | 8166611 |

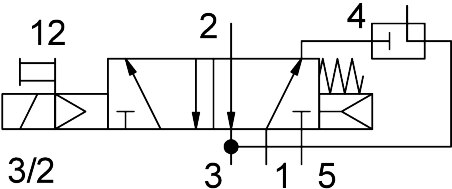

| Valve function | 3/2-way, single solenoid, closed |
| Type of actuation | electrical |
| Width | 25.5 mm |
| Standard nominal flow rate | 400 l/min |
| pneumatic working port | connection pattern to NAMUR |
| Operating voltage | 24 V DC |
| Operating pressure | 2.5 to 8 bar |
| Design | piston slide with sealing ring |
| Reset method | mechanical spring, pneumatic spring |
| Degree of protection | IP65 |
| Exhaust-air function | can be throttled |
| Sealing principle | soft |
| Mounting position | any |
| Conforms to standard | VDI/VDE 3845 (NAMUR) |
| Manual override | detenting |
| Type of piloting | piloted |
| Pilot air supply | internal |
| Flow direction | non-reversible |
| Overlap | positive overlap |
| b value | 0.3 |
| C value | 2.1 l/sbar |
| Standard nominal flow rate, exhaust return 4 to 3 | 100 l/min |
| Switching time off | 50 ms |
| Switching time on | 50 ms |
| Duty cycle | 100% |
| Coil characteristics | 24 V DC: 2.4 W |
| Operating medium | compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-Zone III |
| Storage temperature | -20 to 60 °C |
| Media temperature | -20 to 50 °C |
| Ambient temperature | -20 to 50 °C |
| Product weight | 220 g |
| Electrical connection | type C |
| Type of mounting | with through-hole |
| Breather connection | not ducted |
| Pneumatic connection, port 1 | G1/8 |
| Pneumatic connection, port 2 | connection pattern to NAMUR |
| Pneumatic connection, port 3 | G1/8 |
| Pneumatic connection, port 4 | connection pattern to NAMUR |
| Pneumatic connection, port 5 | G1/8 |
| Note on materials | RoHS compliant |
| Material cover | reinforced PA |
| Material seals | NBR |
| Material housing | wrought aluminium alloy |
| Manual override material | reinforced PA |
| Material piston | wrought aluminium alloy |
| Material screws | high-alloy stainless steel |
| Weight (shipping) | 0.24 kg |
| Weight | 0.24 kg |
| Manufacturer | Festo |
| Hersteller-Nr | VSNC-FK-M32C-RD-G18-1C1-S |
| EAN | 4052568601614 |
| Zolltarifnummer | 84812090 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Thread | G 1/8 |
| Seal material | NBR |
| Medium | Compressed air |
| Function | 3/2 closed monostable |
| Flow rate [l/min] | 400 |
| Actuation type | Electrical |
| Norm | NAMUR, VDI/VDE 3845 |
| Series | VSNC |
| Betriebsdruck max [bar] | 8 |
| Pneumatic connection | G1/8 |
| Protection rating | IP65 |
| Temperaturbereich | -20-50 °C |
