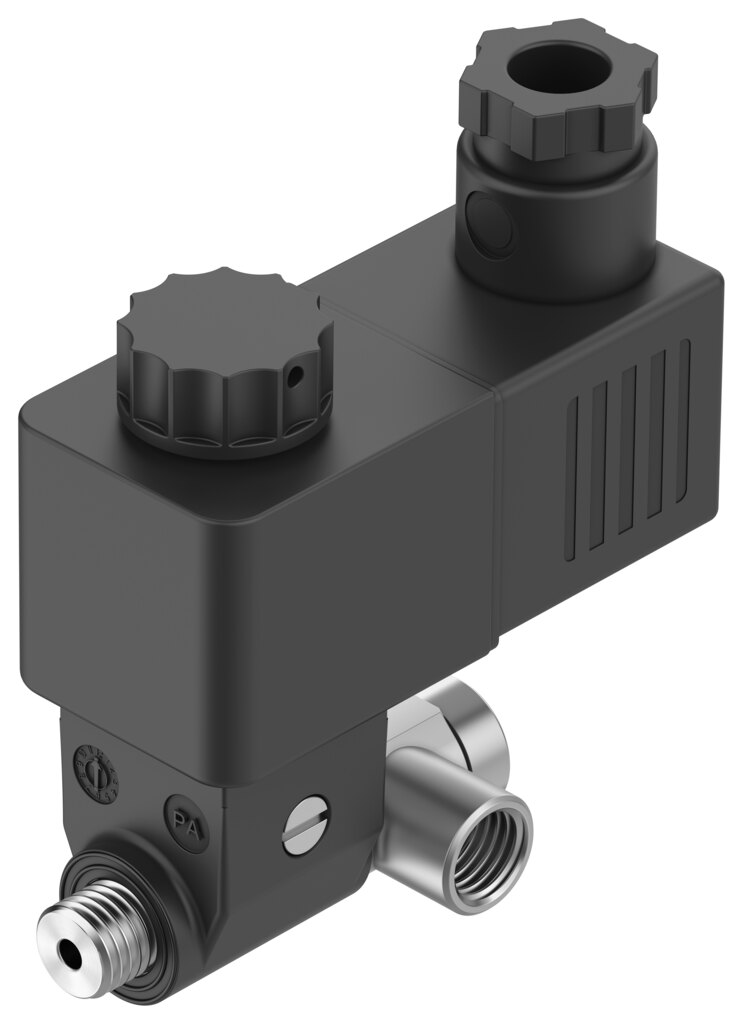

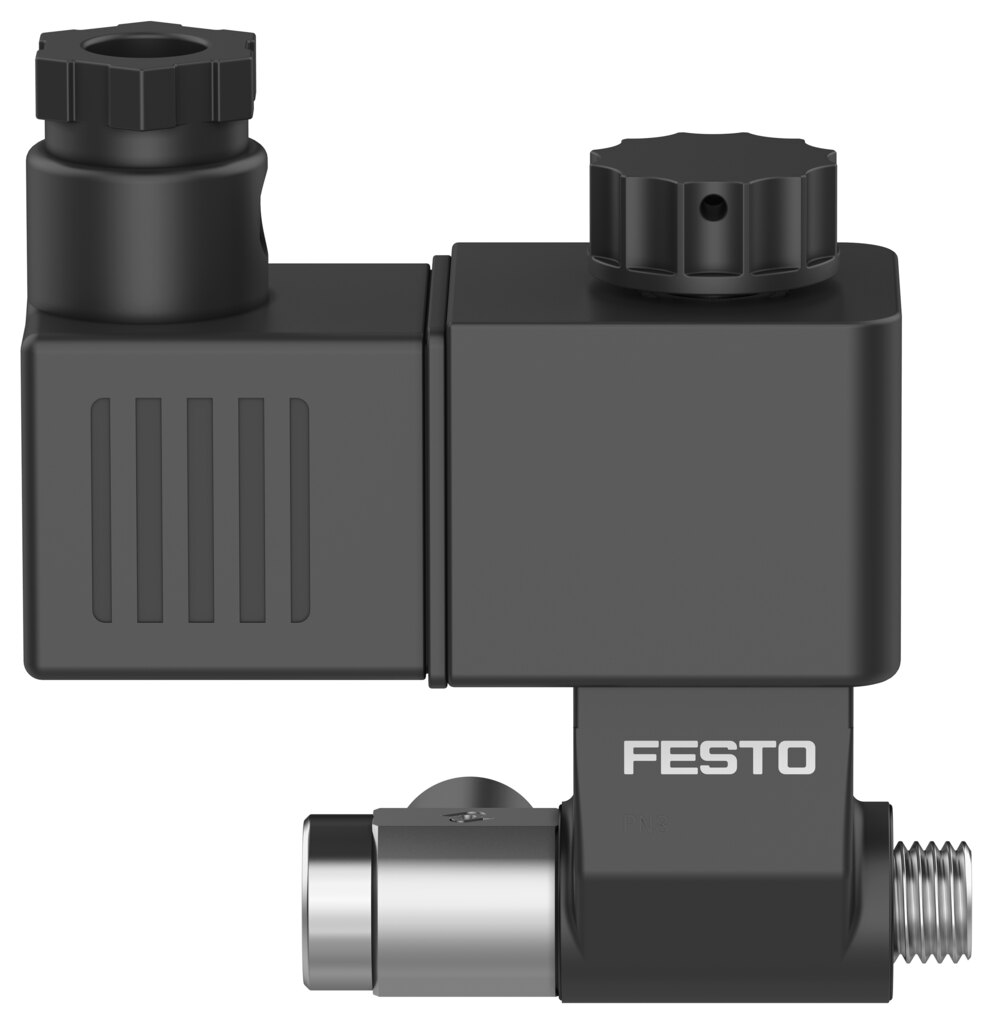

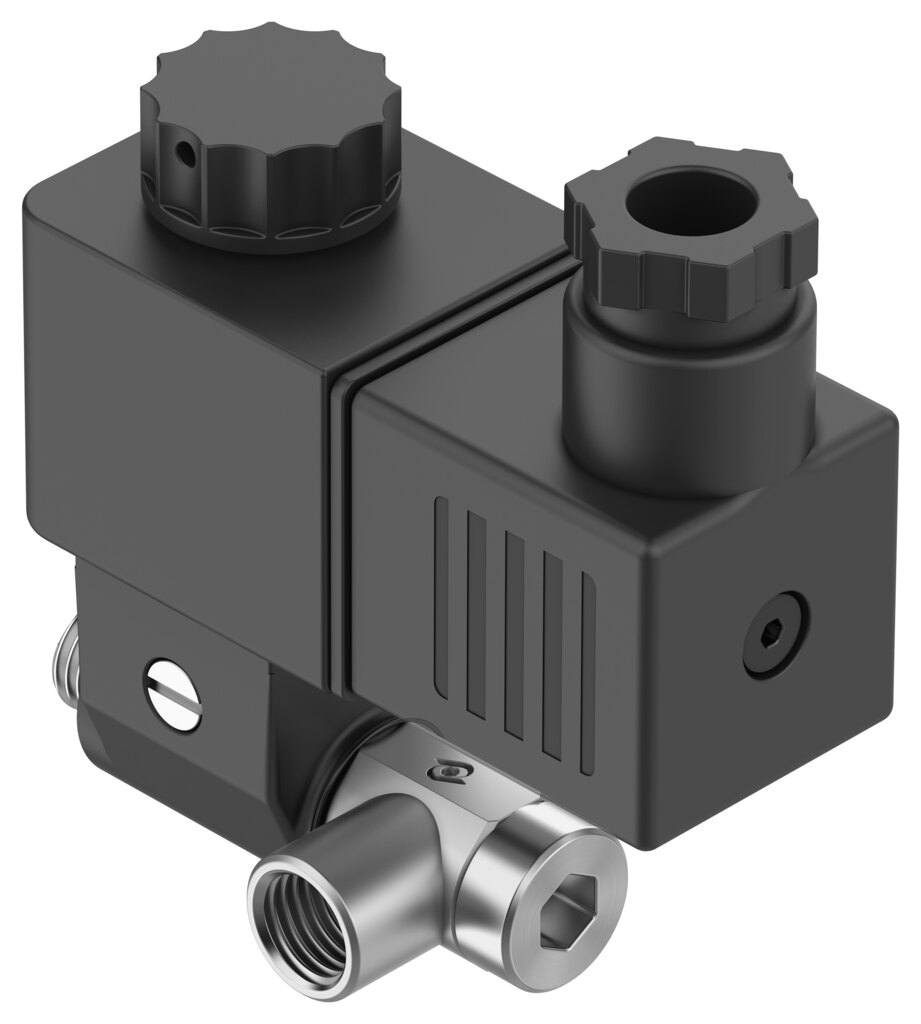

Pilot valve 3/2-way single solenoid, closed G1/8 VOFX-LT-M32C-MY-G18-SG18-3AA1 - Festo 8178210

Festo ✓ Original product Brand new

The VOFX-LT-M32C-MY-G18-SG18-3AA1 switches compressed air as a 3/2-way valve (single solenoid, closed) and reaches 50 l/min standard nominal flow rate. Also -0.9 to 8 bar operating pressure, G1/8 port and 22 mm width.

Net
€81.88
excl. VAT
Item FES-8178210
Manufacturer no. VOFX-LT-M32C-MY-G18-SG18-3AA1
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

As a 3/2-way valve (single solenoid, closed), the Festo pilot valve VOFX-LT-M32C-MY-G18-SG18-3AA1 delivers 50 l/min standard nominal flow rate at -0.9 to 8 bar operating pressure. Further ratings: G1/8 port, 22 mm width and 230V AC operating voltage.

Benefits at a glance

  • Flow: 50 l/min standard nominal flow rate at only 22 mm width
  • Pressure range: -0.9 to 8 bar, vacuum included
  • Rugged: IP65 protection, corrosion resistance class 2
  • Temperature: -10 to 50 °C ambient
  • Continuous duty: 100 % duty cycle

Applications

Typical tasks for the VOFX-LT-M32C-MY-G18-SG18-3AA1 are single-acting cylinders, blow air and piloting larger valves. Operating medium for the VOFX-LT-M32C-MY-G18-SG18-3AA1: compressed air to ISO 8573-1:2010 [7:4:4].

Technical data

TypeVOFX-LT-M32C-MY-G18-SG18-3AA1
Festo part number8178210
Valve function3/2-way, single solenoid, closed
Type of actuationelectrical
Width22 mm
Standard nominal flow rate50 l/min
pneumatic working portG1/8
Operating voltage230V AC
Operating pressure-0.9 to 8 bar
Designdirectly actuated poppet valve
Reset methodmechanical spring
Degree of protectionIP65
CE mark (see declaration of conformity)to EU Low Voltage Directive
UKCA marking (see declaration of conformity)to UK regulations for electrical equipment
Nominal size1.3 mm
Exhaust-air functioncan be throttled
Sealing principlesoft
Mounting positionany
Manual overridedetenting
Type of pilotingdirect
Pilot air supplyinternal
Flow directionnon-reversible
Duty cycle100%
Insulation material classF
Coil characteristics230 V AC: 50 Hz, pick-up power 6.2 VA, holding power 3.7 VA, 230 V AC: 60 Hz, pick-up power 4.9 VA, holding power 2.9 VA
Permissible voltage fluctuations± 10 %
Operating mediumcompressed air to ISO 8573-1:2010 [7:4:4]
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-Zone III
Ambient temperature-10 to 50 °C
Product weight160 g
Electrical connection3-pin, type B, plug, to EN 175301-803
Pneumatic connection, port 1G1/8
Pneumatic connection, port 2G1/8
Pneumatic connection, port 3M5
Note on materialsRoHS compliant
Material sealsNBR
Material housingPA
Material solenoid coilcopper
Weight (shipping)0.175 kg
Weight0.175 kg
ManufacturerFesto
Hersteller-NrVOFX-LT-M32C-MY-G18-SG18-3AA1
EAN4052568630232
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
ThreadG 1/8
Nominal size DN [mm]1,3
Seal materialNBR
Housing materialPA
MediumCompressed air
Function3/2 closed monostable
Flow rate [l/min]50
Actuation typeElectrical
Betriebsdruck max [bar]8
Pneumatic connectionG1/8
Protection ratingIP65
Temperaturbereich-10-50 °C
