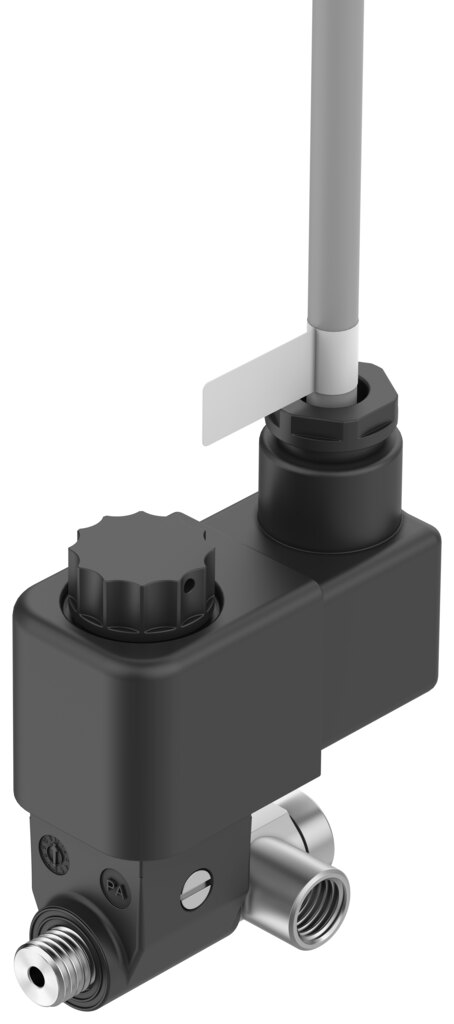

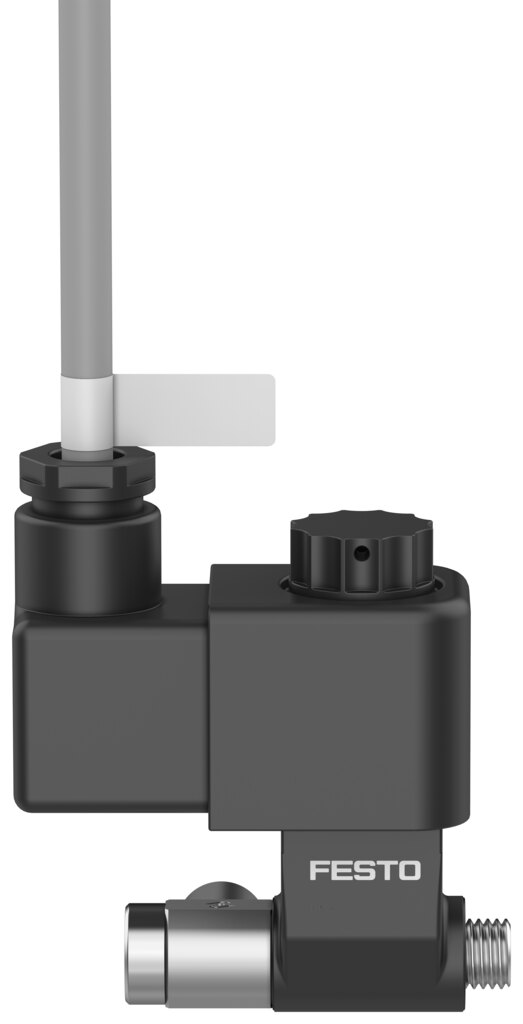

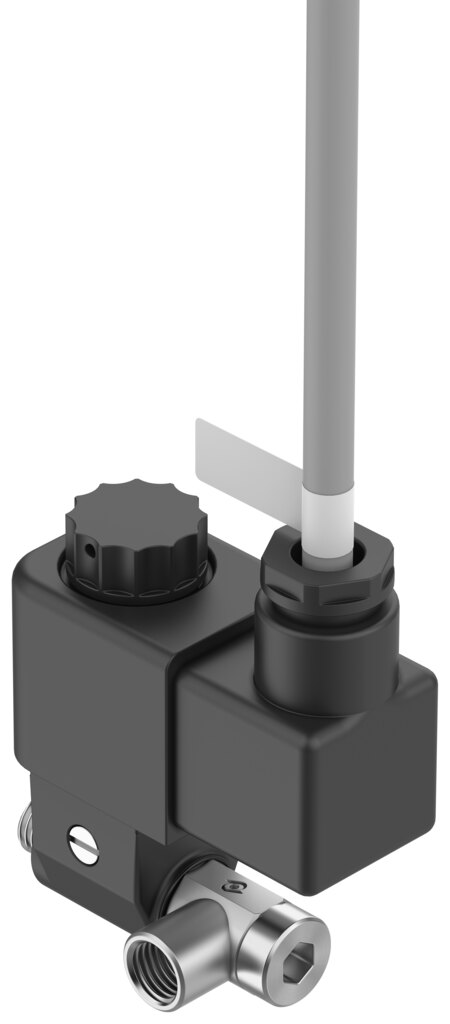

Pilot valve 3/2-way single solenoid, closed G1/8 ATEX VOFX-LT-M32C-MY-G18-SG18-1A1-EX2-N - Festo 8178211
As a 3/2-way valve (single solenoid, closed), the Festo pilot valve VOFX-LT-M32C-MY-G18-SG18-1A1-EX2-N delivers 50 l/min standard nominal flow rate. Also -0.9 to 8 bar operating pressure, G1/8 port and 22 mm width. Approved for hazardous areas to ATEX II 3G, II 3D.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The pilot valve VOFX-LT-M32C-MY-G18-SG18-1A1-EX2-N works as a 3/2-way valve (single solenoid, closed) and reaches 50 l/min standard nominal flow rate at -0.9 to 8 bar operating pressure. It also offers G1/8 port, 22 mm width and 24 V DC operating voltage.
Benefits at a glance
- Flow: 50 l/min standard nominal flow rate at only 22 mm width
- Pressure range: -0.9 to 8 bar, vacuum included
- Explosion protection: ATEX category II 3G, II 3D
- Rugged: IP65 protection, corrosion resistance class 2
- Temperature: -10 to 50 °C ambient
- Continuous duty: 100 % duty cycle
Applications
For hazardous areas it is rated ATEX II 3G, II 3D (Zone 2 (ATEX), Zone 22 (ATEX)). The VOFX-LT-M32C-MY-G18-SG18-1A1-EX2-N operates on compressed air to ISO 8573-1:2010 [7:4:4].
Technical data
| Type | VOFX-LT-M32C-MY-G18-SG18-1A1-EX2-N |
|---|---|
| Festo part number | 8178211 |
| Valve function | 3/2-way, single solenoid, closed |
| Type of actuation | electrical |
| Width | 22 mm |
| Standard nominal flow rate | 50 l/min |
| pneumatic working port | G1/8 |
| Operating voltage | 24 V DC |
| Operating pressure | -0.9 to 8 bar |
| Design | directly actuated poppet valve |
| Reset method | mechanical spring |
| Degree of protection | IP65 |
| CE mark (see declaration of conformity) | to EU Explosion Protection Directive (ATEX) |
| ATEX category gas | II 3G |
| ATEX category dust | II 3D |
| Explosion ignition protection type for gas | Ex nA IIC T5/T4 X Gc |
| Explosion ignition protection type for dust | Ex tc IIIC T95°C/T105°C X Dc |
| Explosion ambient temperature | -20°C ≤ Ta ≤ +60°C |
| Nominal size | 1.3 mm |
| Exhaust-air function | can be throttled |
| Sealing principle | soft |
| Mounting position | any |
| Manual override | detenting |
| Type of piloting | direct |
| Pilot air supply | internal |
| Flow direction | non-reversible |
| Duty cycle | 100% |
| Insulation material class | F |
| Coil characteristics | 24 V DC: 2.1 W |
| Permissible voltage fluctuations | ± 10 % |
| Explosion protection | Zone 2 (ATEX), Zone 22 (ATEX) |
| Operating medium | compressed air to ISO 8573-1:2010 [7:4:4] |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-Zone III |
| Ambient temperature | -10 to 50 °C |
| Product weight | 160 g |
| Electrical connection | 3-pin, type B, plug, to EN 175301-803 |
| Pneumatic connection, port 1 | G1/8 |
| Pneumatic connection, port 2 | G1/8 |
| Pneumatic connection, port 3 | M5 |
| Note on materials | RoHS compliant |
| Material seals | NBR |
| Material housing | PA |
| Material solenoid coil | copper |
| Weight (shipping) | 0.23 kg |
| Weight | 0.23 kg |
| Manufacturer | Festo |
| Hersteller-Nr | VOFX-LT-M32C-MY-G18-SG18-1A1-EX2-N |
| EAN | 4052568630249 |
| Zolltarifnummer | 84812090 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Thread | G 1/8 |
| Nominal size DN [mm] | 1,3 |
| Seal material | NBR |
| Housing material | PA |
| Medium | Compressed air |
| Function | 3/2 closed monostable |
| Flow rate [l/min] | 50 |
| Actuation type | Electrical |
| Betriebsdruck max [bar] | 8 |
| Pneumatic connection | G1/8 |
| Protection rating | IP65 |
| Temperaturbereich | -10-50 °C |
