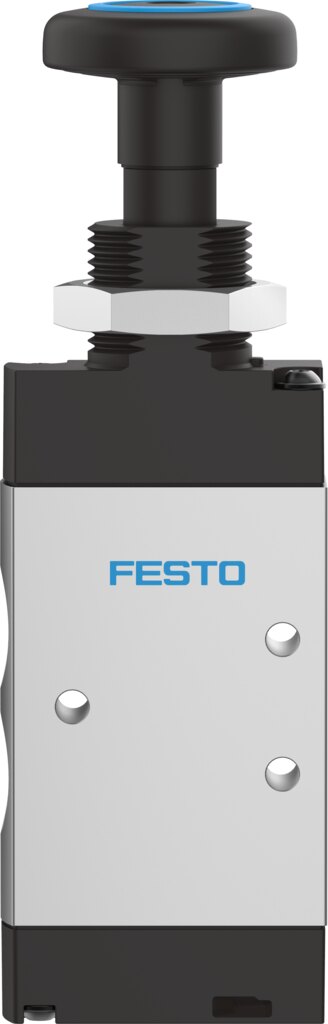

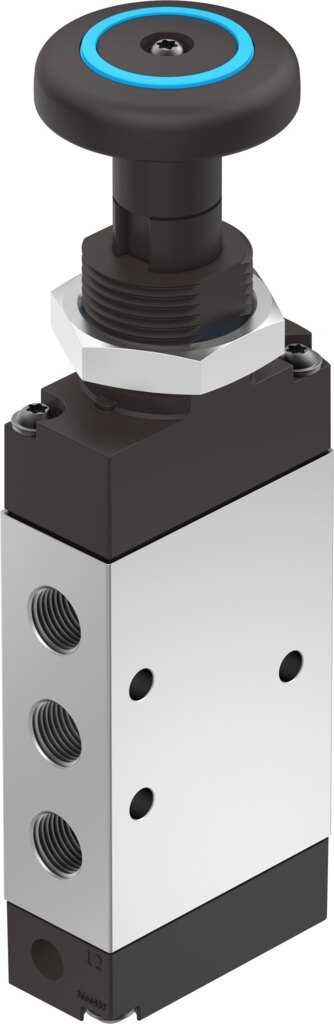

Pushbutton valve 5/2-way monostable, 1/8 NPT, 750 l/min, up to 10 bar VHEF-P-M52-M-N18 - Festo 5299721

Festo ✓ Original product Brand new

For control panels and set-up mode on compressed air systems, Festo supplies the pushbutton valve VHEF-P-M52-M-N18 with a monostable 5/2-way function. Rated for 750 l/min standard nominal flow, 1/8 NPT ports and -0.95 to 10 bar operating pressure. 20 mm width. Actuating force 42 N.

Net
€91.78
excl. VAT
Item FES-5299721
Manufacturer no. VHEF-P-M52-M-N18
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

750 l/min standard nominal flow at up to 10 bar operating pressure: that is the capacity of the pushbutton valve VHEF-P-M52-M-N18. The pushbutton valve is built as a monostable 5/2-way valve.

Benefits

  • 750 l/min standard nominal flow through a 5.2 mm nominal size.
  • Vacuum and positive pressure: -0.95 to 10 bar.
  • 1/8 NPT connection on all 5 valve ports.
  • Actuating force 42 N.
  • Rated for ATEX zones 1 and 2 (gas) and 21 and 22 (dust), so the VHEF-P-M52-M-N18 can also switch in hazardous areas.
  • Corrosion resistance class CRC 1.

Application

Typical tasks for the VHEF-P-M52-M-N18: control panels and set-up mode on compressed air systems. The VHEF-P-M52-M-N18 is fastened via through-holes. Unlubricated air is sufficient, lubricated air is permitted but then required permanently for the VHEF-P-M52-M-N18. The manufacturer specifies actuation by hand only.

Technical data

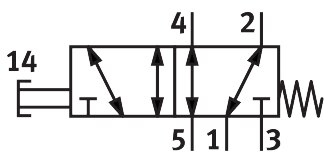

Valve function5/2-way, monostable
Type of actuationManual
Width20 mm
Standard nominal flow rate (standardised to DIN 1343)750 l/min
Pneumatic working port1/8 NPT
Operating pressure-0.95 to 10 bar
DesignPiston spool
Type of resetMechanical spring
Nominal size5.2 mm
Exhaust air functionCan be throttled
Note on useActuate by hand only
Sealing principleSoft
Mounting positionAny
Type of pilotingDirect
Flow directionReversible
OverlapPositive overlap
Maximum switching frequency0.5 Hz
Explosion protectionZone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX)
Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
Note on operating and pilot mediumLubricated operation possible (then required for all further operation)
Corrosion resistance class CRC1 - low corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Media temperature-10 to 60 °C
Ambient temperature-10 to 60 °C
Actuating force42 N
Product weight182 g
Type of mountingWith through-hole
Pneumatic connection, port 11/8 NPT
Pneumatic connection, port 21/8 NPT
Pneumatic connection, port 31/8 NPT
Pneumatic connection, port 41/8 NPT
Pneumatic connection, port 51/8 NPT
Note on materialsRoHS compliant
Material coverReinforced PA
Material sealsNBR
Material housingAnodised wrought aluminium alloy
ManufacturerFesto
Hersteller-NrVHEF-P-M52-M-N18
EAN4052568422776
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialAluminium, anodised
ThreadNPT 1/8
Nominal size DN [mm]5,2
Seal materialNBR
Housing materialAluminium, anodised
MediumCompressed air
Function5/2 monostable
Flow rate [l/min]750
Actuation typeManually
SeriesVHEF
Betriebsdruck max [bar]10
Pneumatic connectionNPT 1/8
Temperaturbereich-10-60 °C
Temperature (max.)60
