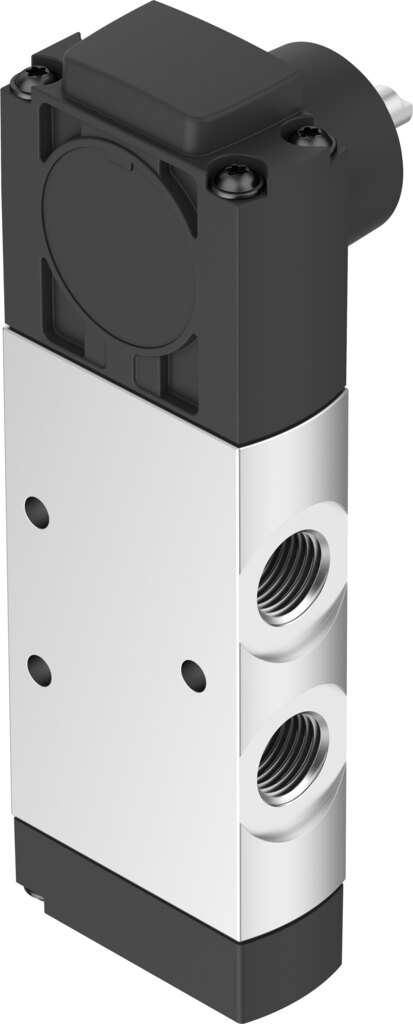

Swivel lever valve 5/2-way monostable, G1/4, 1200 l/min, up to 10 bar VMEF-VR-M52-M-G14 - Festo 8048974

Festo ✓ Original product Brand new

For limit switch tasks without electrical signals, Festo supplies the swivel lever valve VMEF-VR-M52-M-G14 with a monostable 5/2-way function. It offers 1200 l/min standard nominal flow, G1/4 ports and -0.95 to 10 bar operating pressure. 20 mm width. Actuating torque 1.2 Nm.

Net
€102.11
excl. VAT
Item FES-8048974
Manufacturer no. VMEF-VR-M52-M-G14
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

With 1200 l/min standard nominal flow and up to 10 bar operating pressure, the swivel lever valve VMEF-VR-M52-M-G14 switches the compressed air directly, without pilot control. It works as a monostable 5/2-way valve.

Why this valve

  • 1200 l/min standard nominal flow through a 7 mm nominal size.
  • Switches vacuum from -0.95 bar as well as positive pressure up to 10 bar.
  • G1/4 thread for direct fitting connection.
  • Actuating torque 1.2 Nm.
  • Corrosion resistance class CRC 1.
  • Maximum switching frequency 2.5 Hz.

Application

The VMEF-VR-M52-M-G14 is the right choice for limit switch tasks without electrical signals. The swivel lever valve is fastened via through-holes. Lubricated operation of the VMEF-VR-M52-M-G14 is possible, but must then be maintained permanently.

Technical data

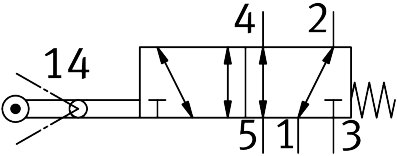

Valve function5/2-way, monostable
Type of actuationMechanical
Width20 mm
Standard nominal flow rate (standardised to DIN 1343)1200 l/min
Pneumatic working portG1/4
Operating pressure-0.95 to 10 bar
DesignPiston spool, swivel actuation
Type of resetMechanical spring
Nominal size7 mm
Sealing principleSoft
Mounting positionAny
Type of pilotingDirect
Flow directionReversible
OverlapPositive overlap
Maximum actuating speed with lateral actuation1 m/s
Maximum switching frequency2.5 Hz
Cam angle45°
Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
Note on operating and pilot mediumLubricated operation possible (then required for all further operation)
Corrosion resistance class CRC1 - low corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Media temperature-10 to 60 °C
Ambient temperature-10 to 60 °C
Note on ambient temperatureInfluence of heat on wear
Actuating torque1.2 Nm
Product weight238 g
Type of mountingWith through-hole
Pneumatic connection, port 1G1/4
Pneumatic connection, port 2G1/4
Pneumatic connection, port 3G1/4
Pneumatic connection, port 4G1/4
Pneumatic connection, port 5G1/4
Note on materialsRoHS compliant
Material coverReinforced PA
Material sealsNBR
Material housingAnodised wrought aluminium alloy
Weight0.28 kg
ManufacturerFesto
Hersteller-NrVMEF-VR-M52-M-G14
EAN4052568646844
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialAluminium, anodised
ThreadG 1/4
Nominal size DN [mm]7
Seal materialNBR
Housing materialAluminium, anodised
MediumCompressed air
Function5/2 monostable
Flow rate [l/min]1200
Actuation typeMechanical
SeriesVMEF
Betriebsdruck max [bar]10
Pneumatic connectionG1/4
Temperaturbereich-10-60 °C
Temperature (max.)60
