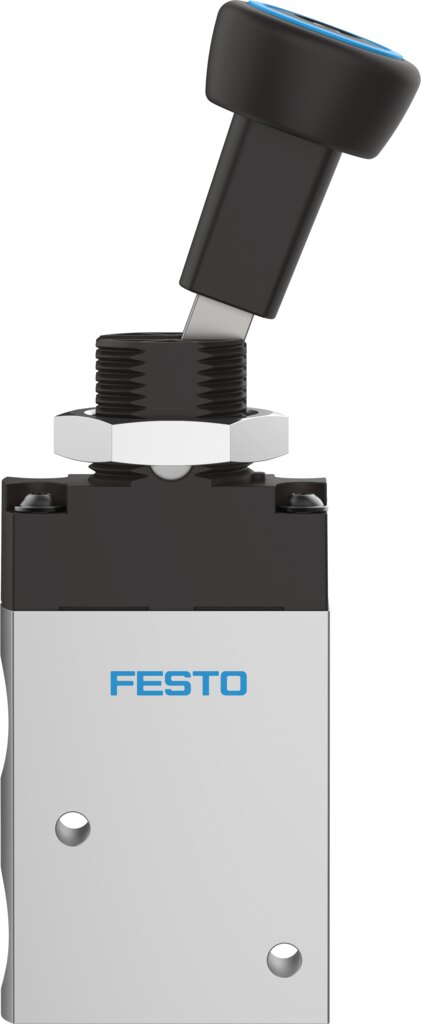

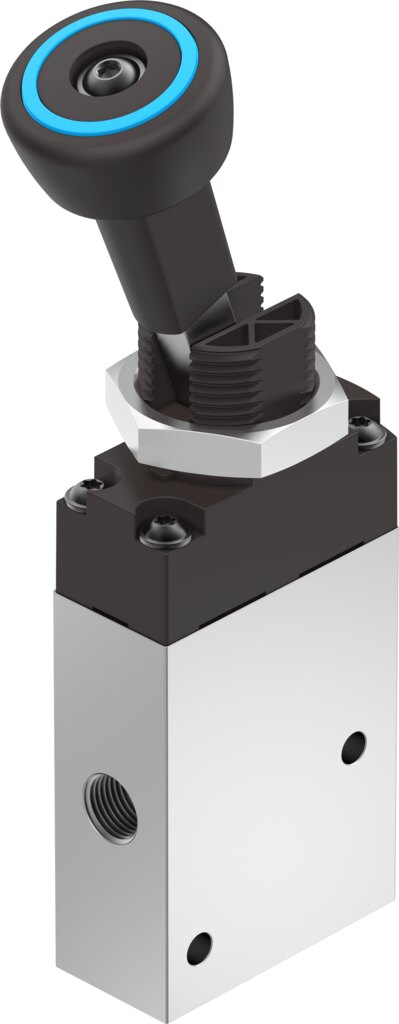

Toggle lever valve 3/2-way open/closed, 1/4 NPT, 870 l/min VHEF-VT-M32-M-N14 - Festo 5300046

Festo ✓ Original product Brand new

The Festo toggle lever valve VHEF-VT-M32-M-N14 is designed for direct manual operation of pneumatic controls and switches as a 3/2-way valve (open/closed, monostable). It offers 870 l/min standard nominal flow, 1/4 NPT ports and -0.95 to 10 bar operating pressure. 20 mm width.

Net
€90.37
excl. VAT
Item FES-5300046
Manufacturer no. VHEF-VT-M32-M-N14
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The toggle lever valve VHEF-VT-M32-M-N14 switches up to 10 bar and passes 870 l/min standard nominal flow. The toggle lever valve switches as a 3/2-way valve (open/closed, monostable).

Your benefits

  • 870 l/min standard nominal flow through a 6 mm nominal size.
  • Vacuum and positive pressure: -0.95 to 10 bar.
  • 1/4 NPT connection on all 3 valve ports.
  • Actuating torque 0.6 Nm.
  • Rated for ATEX zones 1 and 2 (gas) and 21 and 22 (dust), so the VHEF-VT-M32-M-N14 can also switch in hazardous areas.
  • Corrosion resistance class CRC 1.

Application

Typical tasks for the VHEF-VT-M32-M-N14: direct manual operation of pneumatic controls. The VHEF-VT-M32-M-N14 is fastened via through-holes. If the VHEF-VT-M32-M-N14 is run on lubricated air, lubrication must be maintained from then on. The manufacturer specifies actuation by hand only.

Technical data

Valve function3/2-way, open/closed, monostable
Type of actuationManual
Width20 mm
Standard nominal flow rate (standardised to DIN 1343)870 l/min
Pneumatic working port1/4 NPT
Operating pressure-0.95 to 10 bar
DesignPoppet seat
Type of resetMechanical spring
Nominal size6 mm
Exhaust air functionCan be throttled
Note on useActuate by hand only
Sealing principleSoft
Mounting positionAny
Type of pilotingDirect
Flow directionReversible
OverlapZero overlap
Maximum switching frequency0.5 Hz
Explosion protectionZone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX)
Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
Note on operating and pilot mediumLubricated operation possible (then required for all further operation)
Corrosion resistance class CRC1 - low corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Media temperature-10 to 60 °C
Ambient temperature-10 to 60 °C
Actuating torque0.6 Nm
Maximum force on actuation200 N
Maximum lateral force on actuation140 N
Product weight181 g
Type of mountingWith through-hole
Pneumatic connection, port 11/4 NPT
Pneumatic connection, port 21/4 NPT
Pneumatic connection, port 31/4 NPT
Note on materialsRoHS compliant
Material coverReinforced PA
Material sealsNBR
Material housingAnodised wrought aluminium alloy
Material leverReinforced PA
ManufacturerFesto
Hersteller-NrVHEF-VT-M32-M-N14
EAN4052568422998
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialAluminium, anodised
ThreadNPT 1/4
Nominal size DN [mm]6
Seal materialNBR
Housing materialAluminium, anodised
MediumCompressed air
Function3/2 open/closed monostable
Flow rate [l/min]870
Actuation typeManually
SeriesVHEF
Betriebsdruck max [bar]10
Pneumatic connectionNPT 1/4
Temperaturbereich-10-60 °C
Temperature (max.)60
