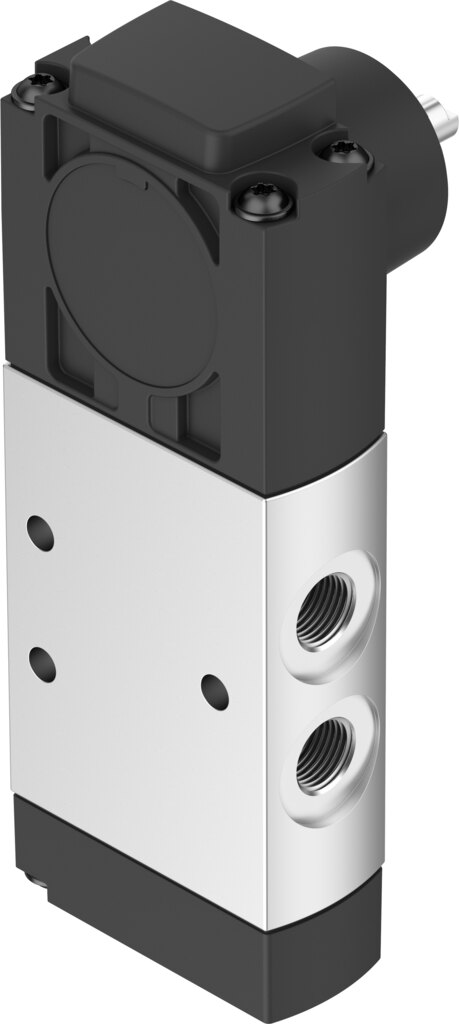

Swivel lever valve 5/2-way monostable, G1/8, 750 l/min, up to 10 bar VMEF-VR-M52-M-G18 - Festo 8048973
The Festo swivel lever valve VMEF-VR-M52-M-G18 is designed for purely pneumatic signal generation in sequence controls and switches as a monostable 5/2-way valve. Key data: 750 l/min standard nominal flow, G1/8 ports and -0.95 to 10 bar operating pressure. 20 mm width. Actuating torque 1.2 Nm.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
With 750 l/min standard nominal flow and up to 10 bar operating pressure, the swivel lever valve VMEF-VR-M52-M-G18 switches the compressed air directly, without pilot control. It works as a monostable 5/2-way valve.
Why this valve
- Standard nominal flow rate of 750 l/min at 5.2 mm nominal size.
- Vacuum and positive pressure: -0.95 to 10 bar.
- G1/8 connection on all 5 valve ports.
- Actuating torque 1.2 Nm.
- Corrosion resistance class CRC 1.
- Maximum switching frequency 2.5 Hz.
Application
In operation the VMEF-VR-M52-M-G18 mainly handles purely pneumatic signal generation in sequence controls. The swivel lever valve is fastened via through-holes. Unlubricated air is sufficient, lubricated air is permitted but then required permanently for the VMEF-VR-M52-M-G18.
Technical data

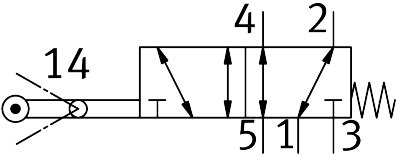

| Valve function | 5/2-way, monostable |
|---|---|
| Type of actuation | Mechanical |
| Width | 20 mm |
| Standard nominal flow rate (standardised to DIN 1343) | 750 l/min |
| Pneumatic working port | G1/8 |
| Operating pressure | -0.95 to 10 bar |
| Design | Piston spool, swivel actuation |
| Type of reset | Mechanical spring |
| Nominal size | 5.2 mm |
| Sealing principle | Soft |
| Mounting position | Any |
| Type of piloting | Direct |
| Flow direction | Reversible |
| Overlap | Positive overlap |
| Maximum actuating speed with lateral actuation | 1 m/s |
| Maximum switching frequency | 2.5 Hz |
| Cam angle | 45° |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible (then required for all further operation) |
| Corrosion resistance class CRC | 1 - low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Media temperature | -10 to 60 °C |
| Ambient temperature | -10 to 60 °C |
| Note on ambient temperature | Influence of heat on wear |
| Actuating torque | 1.2 Nm |
| Product weight | 207 g |
| Type of mounting | With through-hole |
| Pneumatic connection, port 1 | G1/8 |
| Pneumatic connection, port 2 | G1/8 |
| Pneumatic connection, port 3 | G1/8 |
| Pneumatic connection, port 4 | G1/8 |
| Pneumatic connection, port 5 | G1/8 |
| Note on materials | RoHS compliant |
| Material cover | Reinforced PA |
| Material seals | NBR |
| Material housing | Anodised wrought aluminium alloy |
| Weight | 0.24 kg |
| Manufacturer | Festo |
| Hersteller-Nr | VMEF-VR-M52-M-G18 |
| EAN | 4052568646837 |
| Zolltarifnummer | 84812090 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | Aluminium, anodised |
| Thread | G 1/8 |
| Nominal size DN [mm] | 5,2 |
| Seal material | NBR |
| Housing material | Aluminium, anodised |
| Medium | Compressed air |
| Function | 5/2 monostable |
| Flow rate [l/min] | 750 |
| Actuation type | Mechanical |
| Series | VMEF |
| Betriebsdruck max [bar] | 10 |
| Pneumatic connection | G1/8 |
| Temperaturbereich | -10-60 °C |
| Temperature (max.) | 60 |
