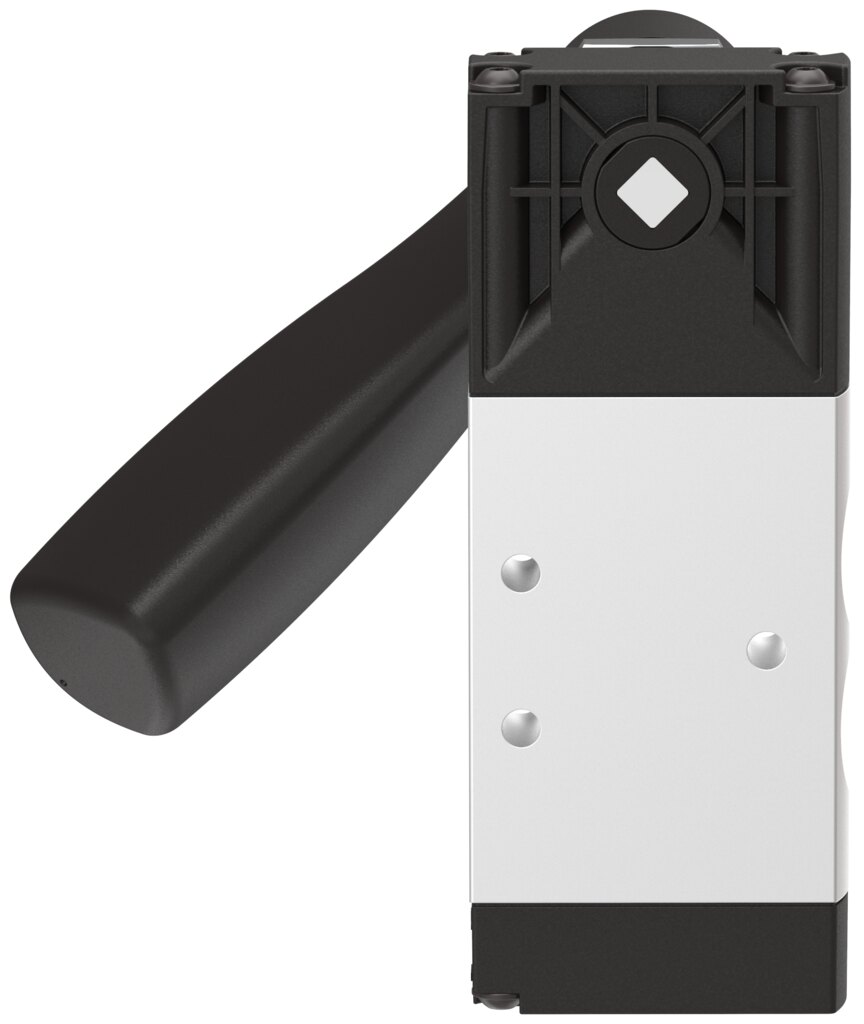

Hand lever valve 5/3-way mid-position closed, 1/8 NPT, 700 l/min VHEF-HS-P53C-M-N18 - Festo 4414857

Festo ✓ Original product Brand new

The Festo hand lever valve VHEF-HS-P53C-M-N18 is designed for direct manual operation of pneumatic controls and switches as a 5/3-way valve with closed mid-position. Key data: 700 l/min standard nominal flow, 1/8 NPT ports and -0.95 to 10 bar operating pressure. 20 mm width. Actuating torque 0.7 Nm.

Net
€165.90
excl. VAT
Item FES-4414857
Manufacturer no. VHEF-HS-P53C-M-N18
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

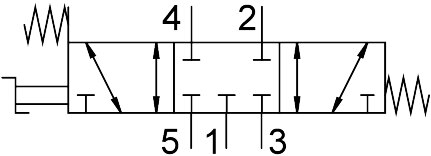

The hand lever valve VHEF-HS-P53C-M-N18 switches up to 10 bar and passes 700 l/min standard nominal flow. The hand lever valve switches as a 5/3-way valve with closed mid-position.

Your benefits

  • 700 l/min standard nominal flow through a 5.2 mm nominal size.
  • Vacuum and positive pressure: -0.95 to 10 bar.
  • 1/8 NPT connection on all 5 valve ports.
  • Actuating torque 0.7 Nm.
  • Explosion protection for ATEX zones 1, 2, 21 and 22, so the VHEF-HS-P53C-M-N18 can be used in hazardous areas.
  • Corrosion resistance class CRC 1.

Application

The VHEF-HS-P53C-M-N18 is the right choice for direct manual operation of pneumatic controls. For mounting, the VHEF-HS-P53C-M-N18 is fastened via through-holes. If the VHEF-HS-P53C-M-N18 is run on lubricated air, lubrication must be maintained from then on. The manufacturer specifies actuation by hand only.

Technical data

Valve function5/3-way, mid-position closed
Type of actuationManual
Width20 mm
Standard nominal flow rate (standardised to DIN 1343)700 l/min
Pneumatic working port1/8 NPT
Operating pressure-0.95 to 10 bar
DesignPiston spool
Type of resetMechanical spring
Nominal size5.2 mm
Exhaust air functionCan be throttled
Note on useActuate by hand only
Sealing principleSoft
Mounting positionAny
Type of pilotingDirect
Flow directionReversible
OverlapPositive overlap
Maximum switching frequency0.5 Hz
Explosion protectionZone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX)
Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
Note on operating and pilot mediumLubricated operation possible (then required for all further operation)
Corrosion resistance class CRC1 - low corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Media temperature-10 to 60 °C
Ambient temperature-10 to 60 °C
Actuating torque0.7 Nm
Maximum force on actuation200 N
Maximum lateral force on actuation200 N
Product weight265 g
Type of mountingWith through-hole
Pneumatic connection, port 11/8 NPT
Pneumatic connection, port 21/8 NPT
Pneumatic connection, port 31/8 NPT
Pneumatic connection, port 41/8 NPT
Pneumatic connection, port 51/8 NPT
Note on materialsRoHS compliant
Material coverReinforced PA
Material sealsNBR
Material housingAnodised wrought aluminium alloy
Material leverReinforced PA
ManufacturerFesto
Hersteller-NrVHEF-HS-P53C-M-N18
EAN4052568418328
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialAluminium, anodised
ThreadNPT 1/8
Nominal size DN [mm]5,2
Seal materialNBR
Housing materialAluminium, anodised
MediumCompressed air
Function5/3 closed
Flow rate [l/min]700
Actuation typeManually
SeriesVHEF
Betriebsdruck max [bar]10
Pneumatic connectionNPT 1/8
Temperaturbereich-10-60 °C
Temperature (max.)60
