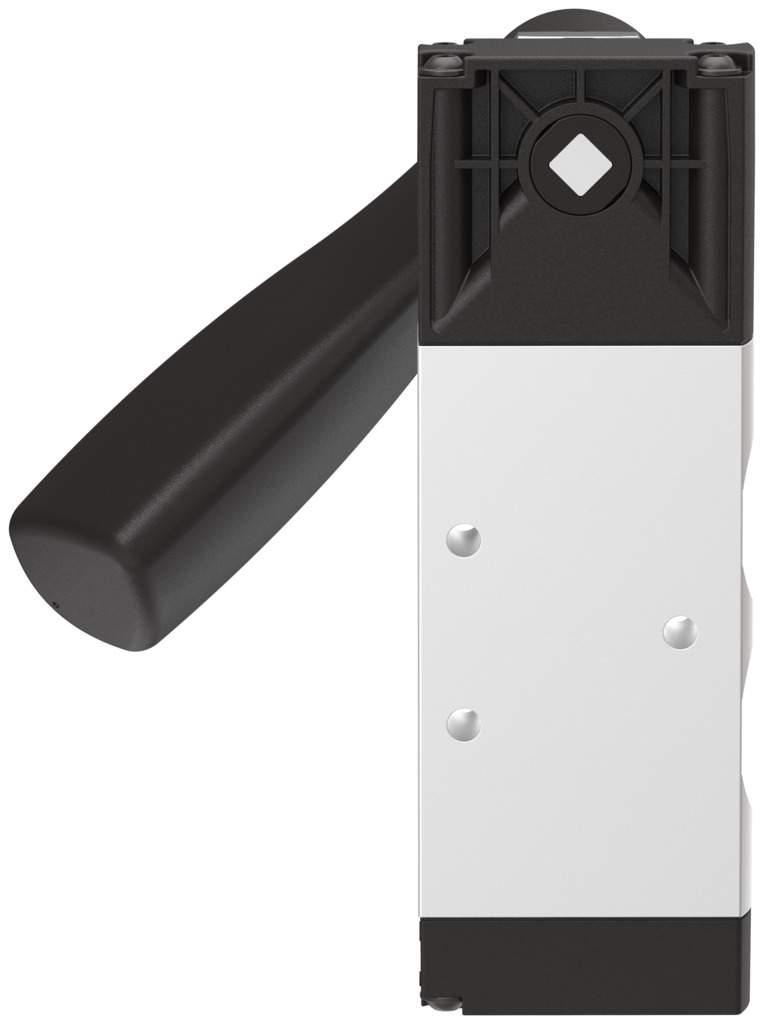

Hand lever valve 5/3-way mid-position closed, 1/4 NPT, 1200 l/min VHEF-HS-P53C-M-N14 - Festo 4414858

Festo ✓ Original product Brand new

For controlling cylinders and drives by hand, Festo supplies the hand lever valve VHEF-HS-P53C-M-N14 with a 5/3-way function and closed mid-position. Key data: 1200 l/min standard nominal flow, 1/4 NPT ports and -0.95 to 10 bar operating pressure. 20 mm width. Actuating torque 0.7 Nm.

Net
€207.36
excl. VAT
Item FES-4414858
Manufacturer no. VHEF-HS-P53C-M-N14
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

1200 l/min standard nominal flow at up to 10 bar operating pressure: that is the capacity of the hand lever valve VHEF-HS-P53C-M-N14. It works as a 5/3-way valve with closed mid-position.

Benefits

  • 1200 l/min standard nominal flow through a 7 mm nominal size.
  • Switches vacuum from -0.95 bar as well as positive pressure up to 10 bar.
  • 1/4 NPT thread for direct fitting connection.
  • Actuating torque 0.7 Nm.
  • Rated for ATEX zones 1 and 2 (gas) and 21 and 22 (dust), so the VHEF-HS-P53C-M-N14 can also switch in hazardous areas.
  • Corrosion resistance class CRC 1.

Application

Typical tasks for the VHEF-HS-P53C-M-N14: controlling cylinders and drives by hand. The VHEF-HS-P53C-M-N14 is fastened via through-holes. If the VHEF-HS-P53C-M-N14 is run on lubricated air, lubrication must be maintained from then on. The manufacturer specifies actuation by hand only.

Technical data

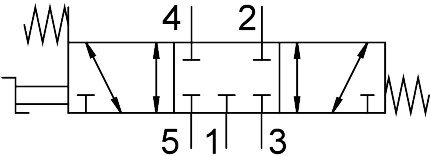

Valve function5/3-way, mid-position closed
Type of actuationManual
Width20 mm
Standard nominal flow rate (standardised to DIN 1343)1200 l/min
Pneumatic working port1/4 NPT
Operating pressure-0.95 to 10 bar
DesignPiston spool
Type of resetMechanical spring
Nominal size7 mm
Exhaust air functionCan be throttled
Note on useActuate by hand only
Sealing principleSoft
Mounting positionAny
Type of pilotingDirect
Flow directionReversible
OverlapPositive overlap
Maximum switching frequency0.5 Hz
Explosion protectionZone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX)
Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
Note on operating and pilot mediumLubricated operation possible (then required for all further operation)
Corrosion resistance class CRC1 - low corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Media temperature-10 to 60 °C
Ambient temperature-10 to 60 °C
Actuating torque0.7 Nm
Maximum force on actuation200 N
Maximum lateral force on actuation200 N
Product weight298 g
Type of mountingWith through-hole
Pneumatic connection, port 11/4 NPT
Pneumatic connection, port 21/4 NPT
Pneumatic connection, port 31/4 NPT
Pneumatic connection, port 41/4 NPT
Pneumatic connection, port 51/4 NPT
Note on materialsRoHS compliant
Material coverReinforced PA
Material sealsNBR
Material housingAnodised wrought aluminium alloy
Material leverReinforced PA
Weight0.32 kg
ManufacturerFesto
Hersteller-NrVHEF-HS-P53C-M-N14
EAN4052568418335
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialAluminium, anodised
ThreadNPT 1/4
Nominal size DN [mm]7
Seal materialNBR
Housing materialAluminium, anodised
MediumCompressed air
Function5/3 closed
Flow rate [l/min]1200
Actuation typeManually
SeriesVHEF
Betriebsdruck max [bar]10
Pneumatic connectionNPT 1/4
Temperaturbereich-10-60 °C
Temperature (max.)60
