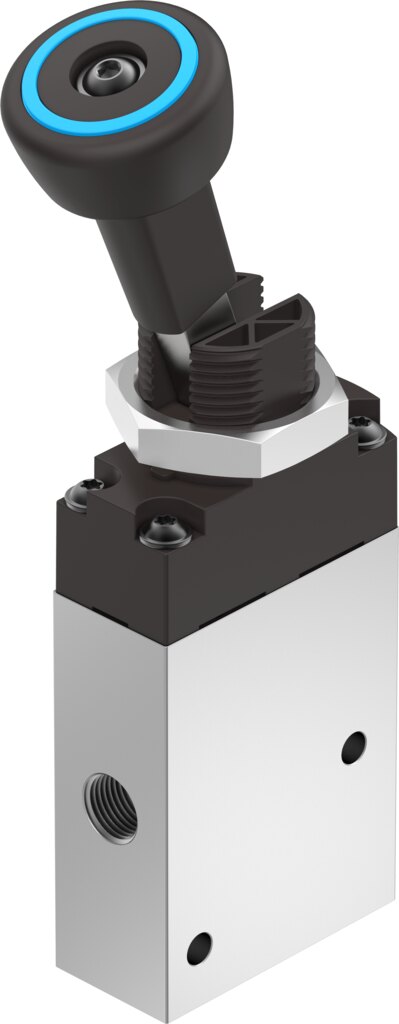

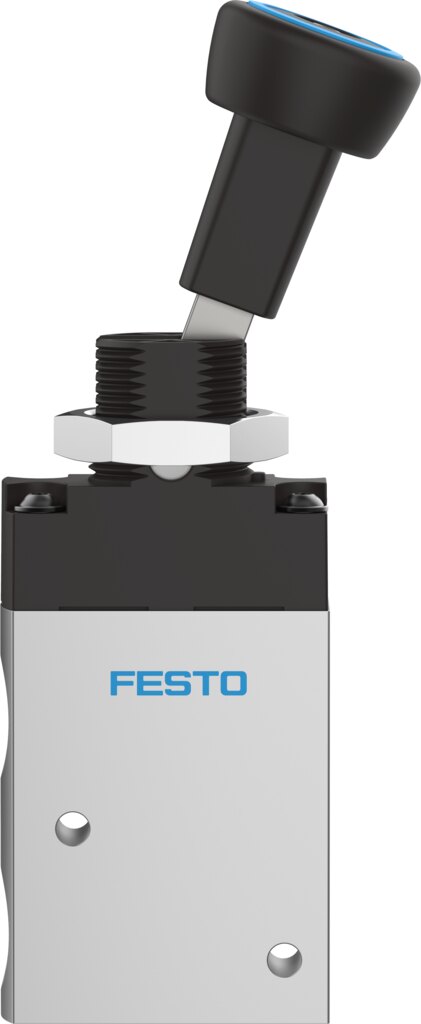

Toggle lever valve 3/2-way bistable, G1/4, 870 l/min, up to 10 bar VHEF-VT-B32-G14 - Festo 5300039

Festo ✓ Original product Brand new

For manual control commands on machines and fixtures, Festo supplies the toggle lever valve VHEF-VT-B32-G14 with a bistable 3/2-way function. Rated for 870 l/min standard nominal flow, G1/4 ports and -0.95 to 10 bar operating pressure. 20 mm width. Actuating torque 1.9 Nm. Detenting manual override.

Net
€90.37
excl. VAT
Item FES-5300039
Manufacturer no. VHEF-VT-B32-G14
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The toggle lever valve VHEF-VT-B32-G14 switches up to 10 bar and passes 870 l/min standard nominal flow. The toggle lever valve switches as a bistable 3/2-way valve.

Why this valve

  • Standard nominal flow rate of 870 l/min at 6 mm nominal size.
  • Vacuum and positive pressure: -0.95 to 10 bar.
  • G1/4 thread for direct fitting connection.
  • Actuating torque 1.9 Nm.
  • Explosion protection for ATEX zones 1, 2, 21 and 22, so the VHEF-VT-B32-G14 can be used in hazardous areas.
  • Corrosion resistance class CRC 1.

Application

In operation the VHEF-VT-B32-G14 mainly handles manual control commands on machines and fixtures. The VHEF-VT-B32-G14 is fastened via through-holes. Unlubricated air is sufficient, lubricated air is permitted but then required permanently for the VHEF-VT-B32-G14. The manufacturer specifies actuation by hand only.

Technical data

Valve function3/2-way, bistable
Type of actuationManual
Width20 mm
Standard nominal flow rate (standardised to DIN 1343)870 l/min
Pneumatic working portG1/4
Operating pressure-0.95 to 10 bar
DesignPoppet seat
Nominal size6 mm
Exhaust air functionCan be throttled
Note on useActuate by hand only
Sealing principleSoft
Mounting positionAny
Manual overrideDetenting
Type of pilotingDirect
Flow directionReversible
OverlapZero overlap
Maximum switching frequency0.5 Hz
Explosion protectionZone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX)
Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
Note on operating and pilot mediumLubricated operation possible (then required for all further operation)
Corrosion resistance class CRC1 - low corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Media temperature-10 to 60 °C
Ambient temperature-10 to 60 °C
Actuating torque1.9 Nm
Unlocking torque1 Nm
Maximum force on actuation200 N
Maximum lateral force on actuation140 N
Product weight181 g
Type of mountingWith through-hole
Pneumatic connection, port 1G1/4
Pneumatic connection, port 2G1/4
Pneumatic connection, port 3G1/4
Note on materialsRoHS compliant
Material coverReinforced PA
Material sealsNBR
Material housingAnodised wrought aluminium alloy
Material leverReinforced PA
Weight0.2 kg
ManufacturerFesto
Hersteller-NrVHEF-VT-B32-G14
EAN4052568422929
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialAluminium, anodised
ThreadG 1/4
Nominal size DN [mm]6
Seal materialNBR
Housing materialAluminium, anodised
MediumCompressed air
Function3/2 bistable
Flow rate [l/min]870
Actuation typeManually
SeriesVHEF
Betriebsdruck max [bar]10
Pneumatic connectionG1/4
Temperaturbereich-10-60 °C
Temperature (max.)60
