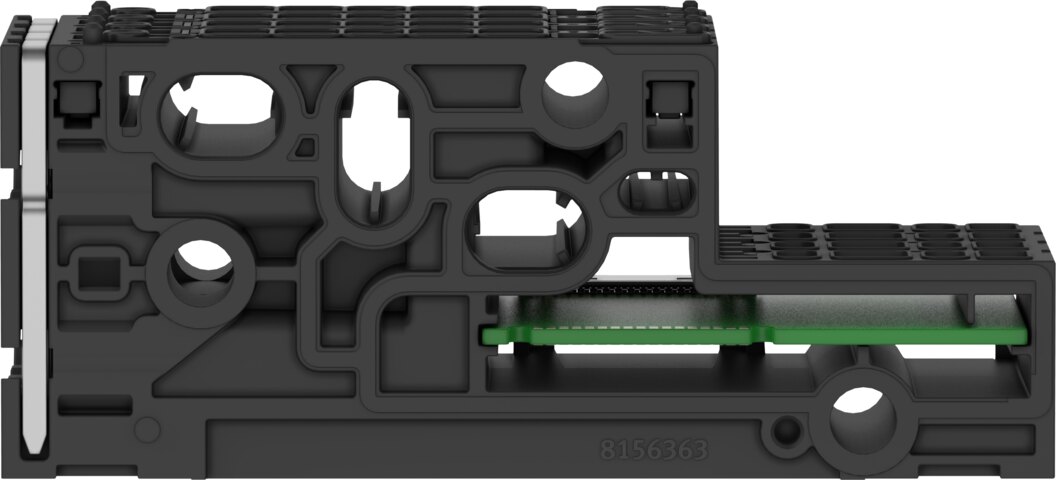

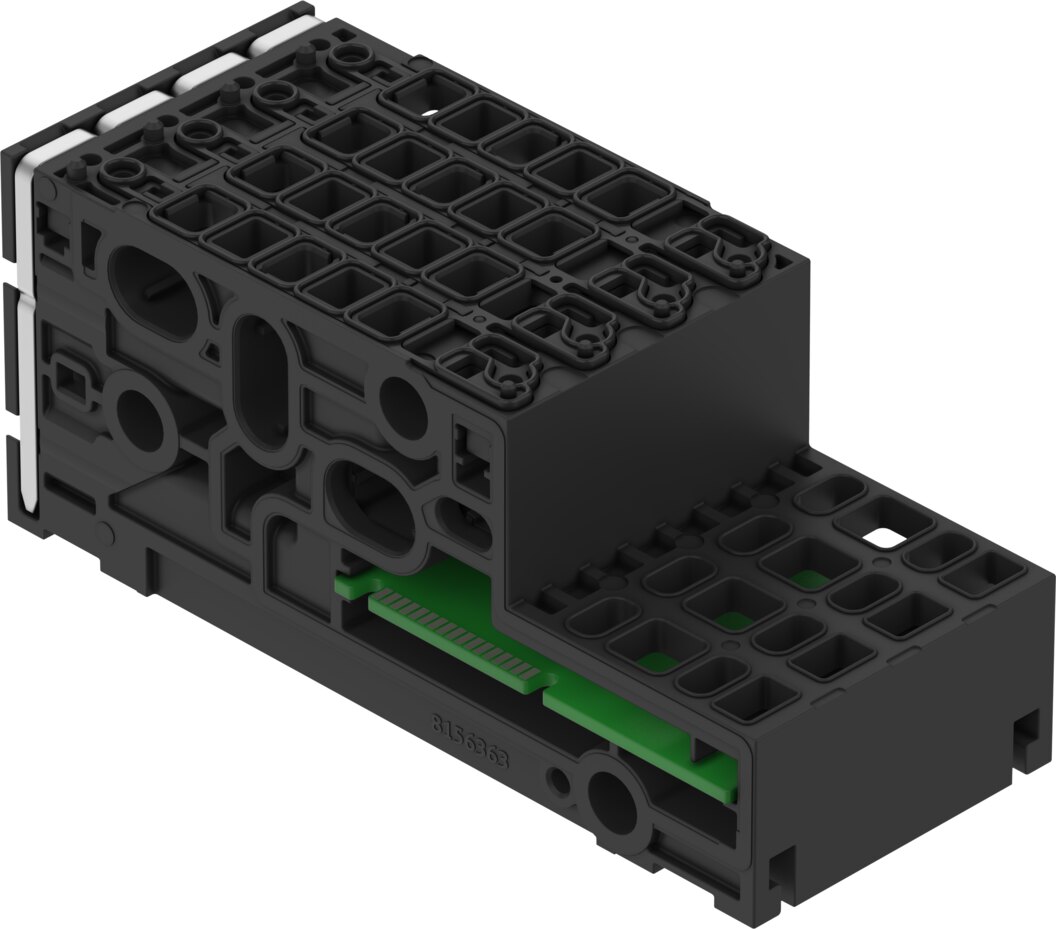

Manifold sub-base VABX-A-S-BV-AH-RVAAAA - Festo 8188466
Net
excl. VAT
€121.93
Item
FES-8188466
Manufacturer no.
VABX-A-S-BV-AH-RVAAAA
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Technical data
| Size | 1 |
|---|---|
| Grid dimension | 10.55 mm |
| Vibration resistance | Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 |
| Reverse polarity protection | Yes |
| Diagnostics via LED | Diagnostics per channel, Diagnostics per module |
| Diagnostics per internal communication | Switch-off load supply, Load supply undervoltage PL, Logic supply undervoltage PS, Load supply overvoltage PL, Logic supply overvoltage PS |
| Max. number of valve positions | 4 |
| Integrated function | With electrical interlinking module |
| Flow direction | Reversible |
| Max. number of valve coils | 8 |
| Compatible with | Valve terminal VTUX-A-S |
| Suitability for vacuum | Yes |
| Nominal flow rate standardised according to ISO 8778 | 470 l/min |
| Dimensions (W x L x H) | 42.05 mm x 104.3 mm x 43.1 mm |
| Fuse protection (short circuit) | Internal electronic fuse per channel |
| Inductive protective circuit | Integrated |
| Intrinsic current consumption at nominal operating voltage for electronics/sensors | Typical 24 mA |
| Intrinsic current consumption at nominal operating voltage load | Typical 7 mA |
| Note regarding operating voltage | SELV/PELV fixed power supplies required, Note the voltage drop |
| Power consumption at 24VDC | 0.74 W |
| Nominal DC operating voltage, electronics/sensors | 24 V |
| Nominal operating voltage DC of load | 24 V |
| Power failure bridging | 10 ms |
| Electrical isolation of outputs between channel - internal communication | Yes |
| Potential separation between the supply voltages electronics/sensor technology and load/valves | Yes |
| Pollution degree | 2 |
| Permissible voltage fluctuations for electronics/sensors | ±25% |
| Permissible voltage fluctuation of load | ±10% |
| Approval | RCM |
| KC mark | KC-EMV |
| CE mark (see declaration of conformity) | To EU EMC Directive, In accordance with EU RoHS Directive |
| Corrosion resistance class CRC | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Storage temperature | -20 ... 70 °C |
| Relative air humidity | 5 - 95% |
| Degree of protection | IP65 |
| Overvoltage category | II |
| Ambient temperature | -5 ... 50 °C |
| Nominal altitude of use | < 3000 m NHN |
| Product weight | 120.7 g |
| Electrical control | AP interface |
| Max. address volume, outputs | 1 byte |
| Communication interface, protocol | AP |
| Mounting method for sub-base | With through-hole |
| Type of mounting | Tie rod |
| Pneumatic connection, port 2 | For 10 mm cartridge |
| Pneumatic connection, port 4 | For 10 mm cartridge |
| Note on materials | RoHS compliant |
| Material sub-base | Reinforced PA |
| Material seals | NBR |
| Material retaining bracket | POM |
| Material sleeve | High-alloy stainless steel |
| Material clip | High-alloy stainless steel |
| Material nut | High-alloy stainless steel |
| Manufacturer | Festo |
| Hersteller-Nr | VABX-A-S-BV-AH-RVAAAA |
| EAN | 4052568651459 |
| Zolltarifnummer | 84819000 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
