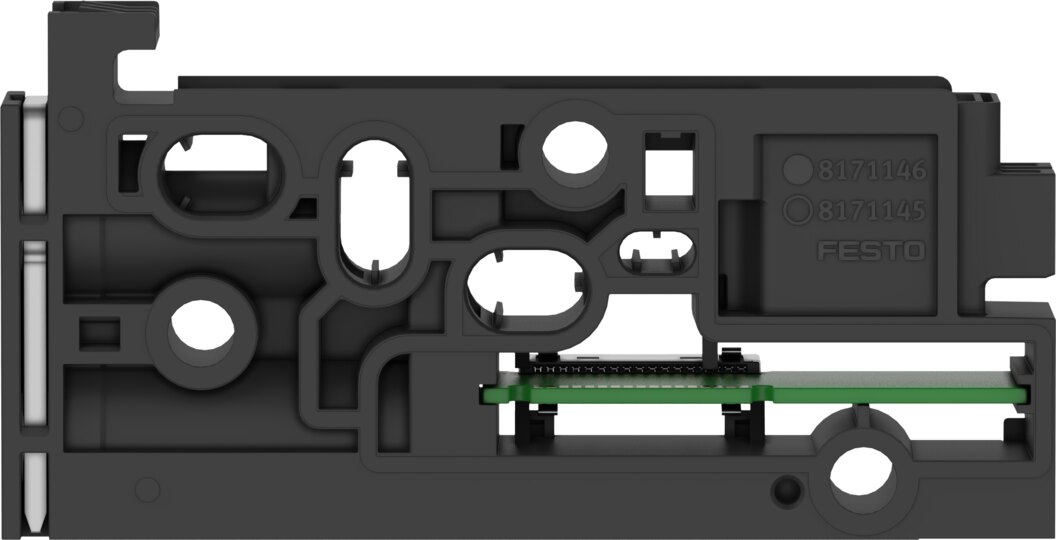

Manifold sub-base for valve terminal VTUX-A-S grid 19.05 mm VABX-A-S-BU-12-SHUH-U - Festo 8191789
The manifold sub-base VABX-A-S-BU-12-SHUH-U from Festo combines supply and exhaust for the mounted valves. Key values: compatible with valve terminal VTUX-A-S, port 1 for 15 mm cartridge and grid dimension 19.05 mm.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The manifold sub-base VABX-A-S-BU-12-SHUH-U combines supply and exhaust for the mounted valves. Key values: compatible with valve terminal VTUX-A-S, port 1 for 15 mm cartridge and grid dimension 19.05 mm.
Your benefits
- Compatible with valve terminal VTUX-A-S
- Port 1 for 15 mm cartridge
- Grid dimension 19.05 mm
- Sub-base made of reinforced PA
- Degree of protection IP65, dust-tight and protected against water jets
- Corrosion resistance class CRC 1, rated for low corrosion stress
Fields of application
VABX-A-S-BU-12-SHUH-U creates a compact valve group with little tubing and fitting effort. VABX-A-S-BU-12-SHUH-U reduces tubing and assembly time in machine building.
Technical data
| Order code | VABX-A-S-BU-12-SHUH-U |
|---|---|
| Festo part number | 8191789 |
| Size | 1 to 2 |
| Grid dimension | 19.05 mm |
| Vibration resistance | Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 |
| Integrated function | With electrical interlinking module |
| Flow direction | Reversible |
| Compatible with | Valve terminal VTUX-A-S |
| Suitability for vacuum | Yes |
| Dimensions (W x L x H) | 19.05 mm x 104.3 mm x 43.1 mm |
| Pollution degree | 2 |
| Approval | RCM |
| KC mark | KC-EMV |
| CE mark (see declaration of conformity) | To EU EMC Directive, In accordance with EU RoHS Directive |
| Corrosion resistance class CRC | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Storage temperature | -20 to 70 °C |
| Relative air humidity | 5 - 95% |
| Degree of protection | IP65 |
| Overvoltage category | II |
| Ambient temperature | -5 to 50 °C |
| Nominal altitude of use | below 3000 m NHN |
| Product weight | 56.3 g |
| Electrical control | AP interface |
| Communication interface, protocol | AP |
| Mounting method for sub-base | With through-hole |
| Type of mounting | Tie rod |
| Pneumatic connection, port 1 | For 15 mm cartridge |
| Pneumatic connection, port 5 | For 15 mm cartridge |
| Note on materials | RoHS compliant |
| Material sub-base | Reinforced PA |
| Material seals | NBR |
| Material clip | High-alloy stainless steel |
| Manufacturer | Festo |
| Hersteller-Nr | VABX-A-S-BU-12-SHUH-U |
| EAN | 4052568651480 |
| Zolltarifnummer | 84819000 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Seal material | NBR |
| Protection rating | IP65 |
| Temperature (max.) | 50 |
