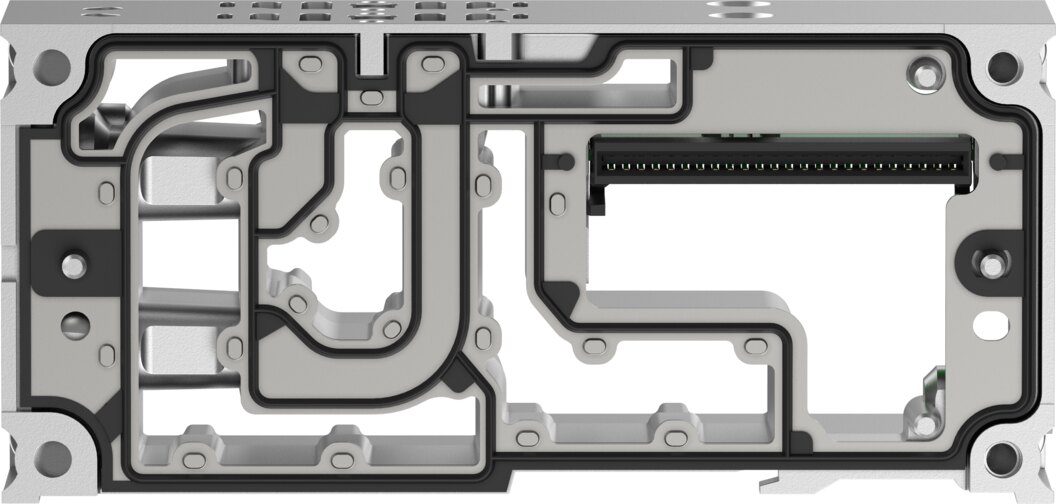

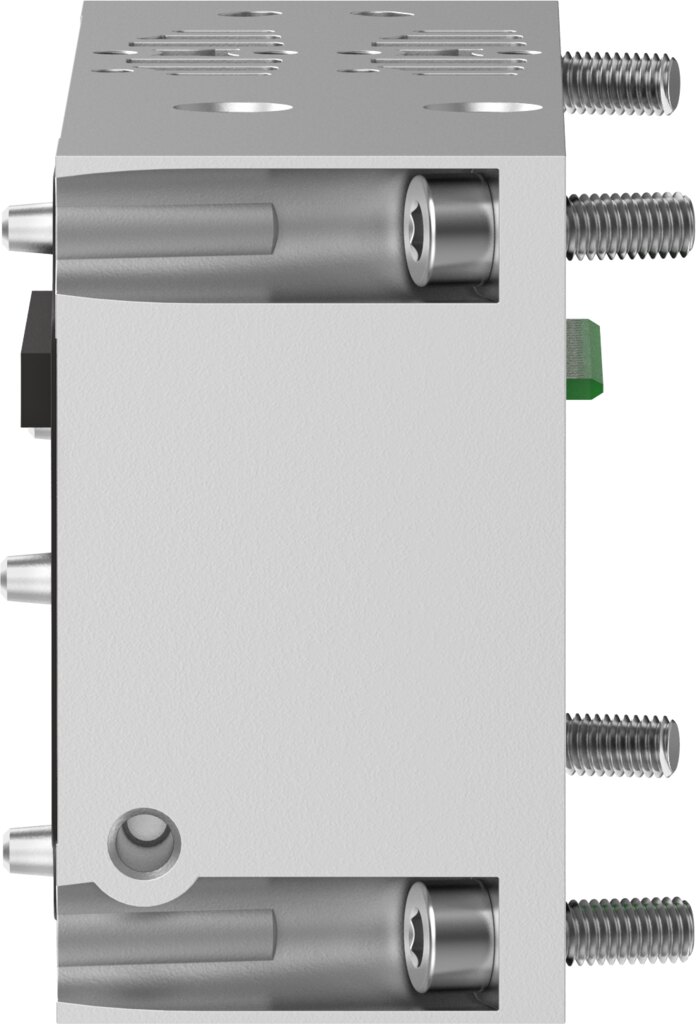

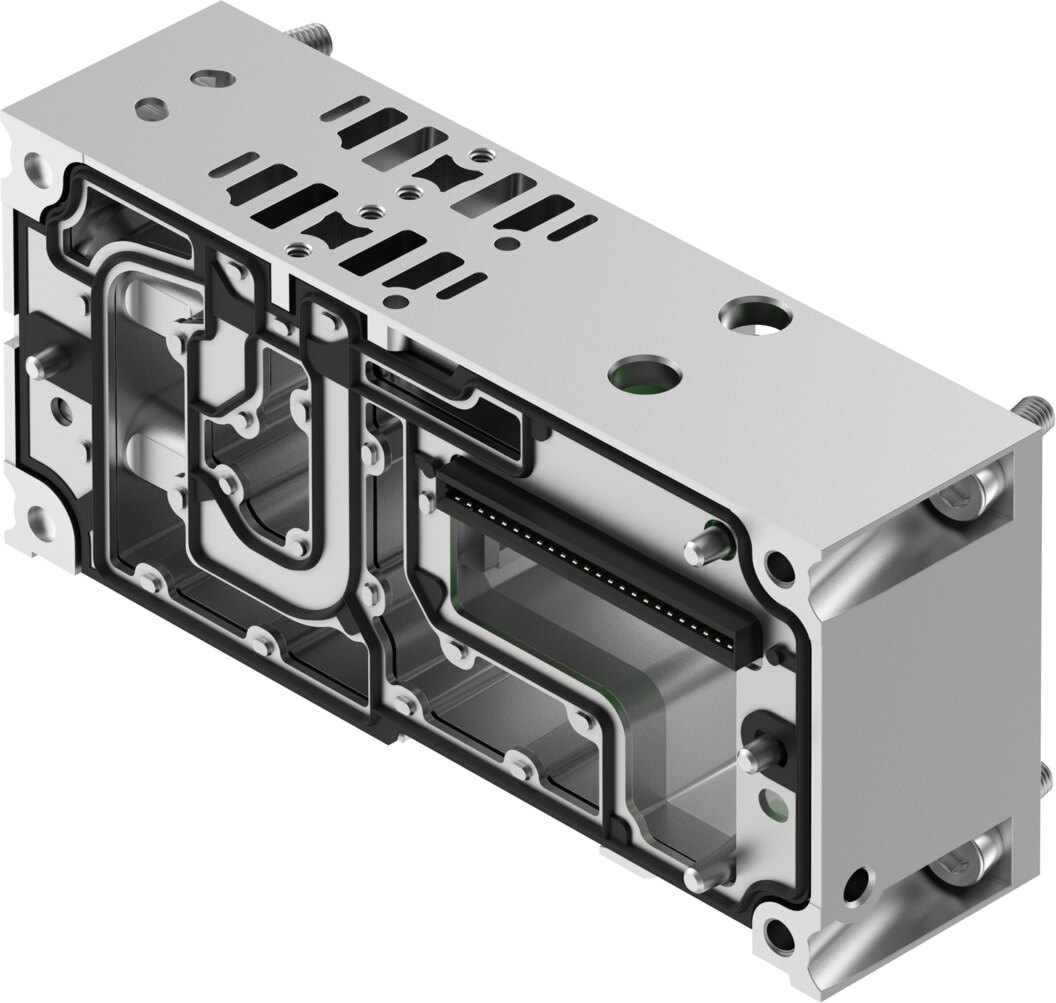

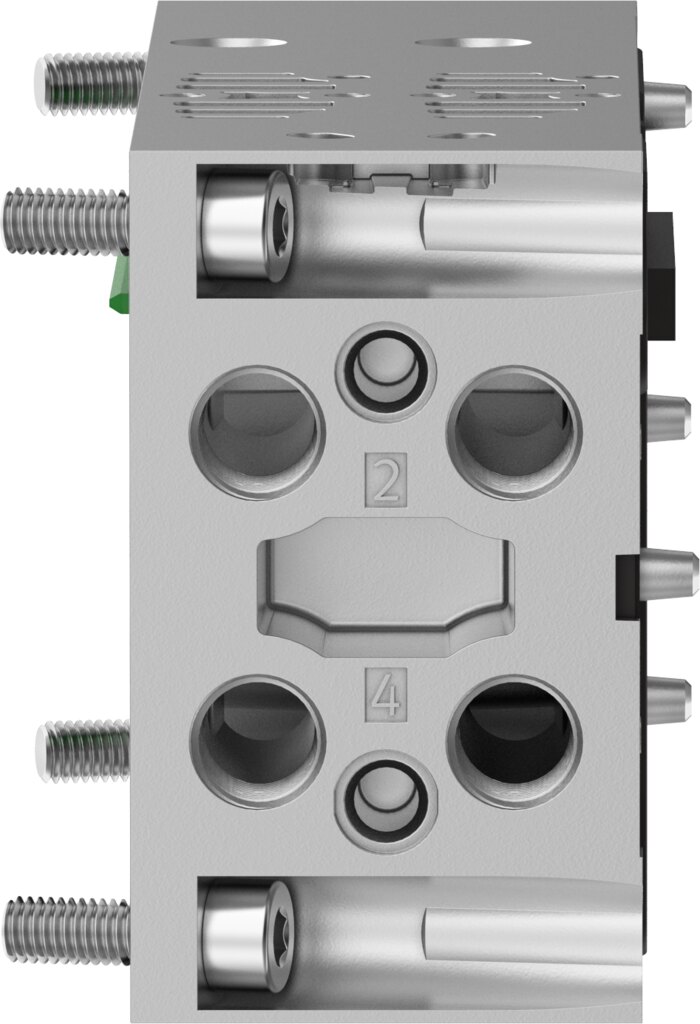

Manifold sub-base G1/8 width 38 mm VABV-S4-2HS-G18-CB-2T5 - Festo 8068913

Festo ✓ Original product Brand new

The manifold sub-base VABV-S4-2HS-G18-CB-2T5 from Festo holds the valves and distributes supply and exhaust air via continuous ducts. Key values: working ports 2 and 4 G1/8, width 38 mm and plate made of die-cast aluminium.

Net
€73.16
excl. VAT
Item FES-8068913
Manufacturer no. VABV-S4-2HS-G18-CB-2T5
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The manifold sub-base VABV-S4-2HS-G18-CB-2T5 holds the valves and distributes supply and exhaust air via continuous ducts. Key values: working ports 2 and 4 G1/8, width 38 mm and plate made of die-cast aluminium.

Your benefits

  • Working ports 2 and 4 G1/8
  • Width 38 mm
  • Plate made of die-cast aluminium
  • Corrosion resistance class CRC 0, for environments without corrosion stress
  • PWIS conformity VDMA24364-B1/B2-L

Fields of application

A typical use of VABV-S4-2HS-G18-CB-2T5 is building compact valve terminals in machine and plant engineering. VABV-S4-2HS-G18-CB-2T5 creates a compact valve group with little tubing and fitting effort.

Technical data

Order codeVABV-S4-2HS-G18-CB-2T5
Festo part number8068913
Construction width38 mm
CE mark (see declaration of conformity)To EU Low Voltage Directive
Corrosion resistance class CRC0 - No corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Product weight434 g
Pneumatic connection, port 2G1/8
Pneumatic connection, port 4G1/8
Note on materialsRoHS compliant
Material plateDie-cast aluminium
Weight0.5 kg
ManufacturerFesto
Hersteller-NrVABV-S4-2HS-G18-CB-2T5
EAN4052568299446
Zolltarifnummer84819000
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialDie-cast aluminium
ThreadG 1/8
SeriesVABV
Pneumatic connectionG1/8
