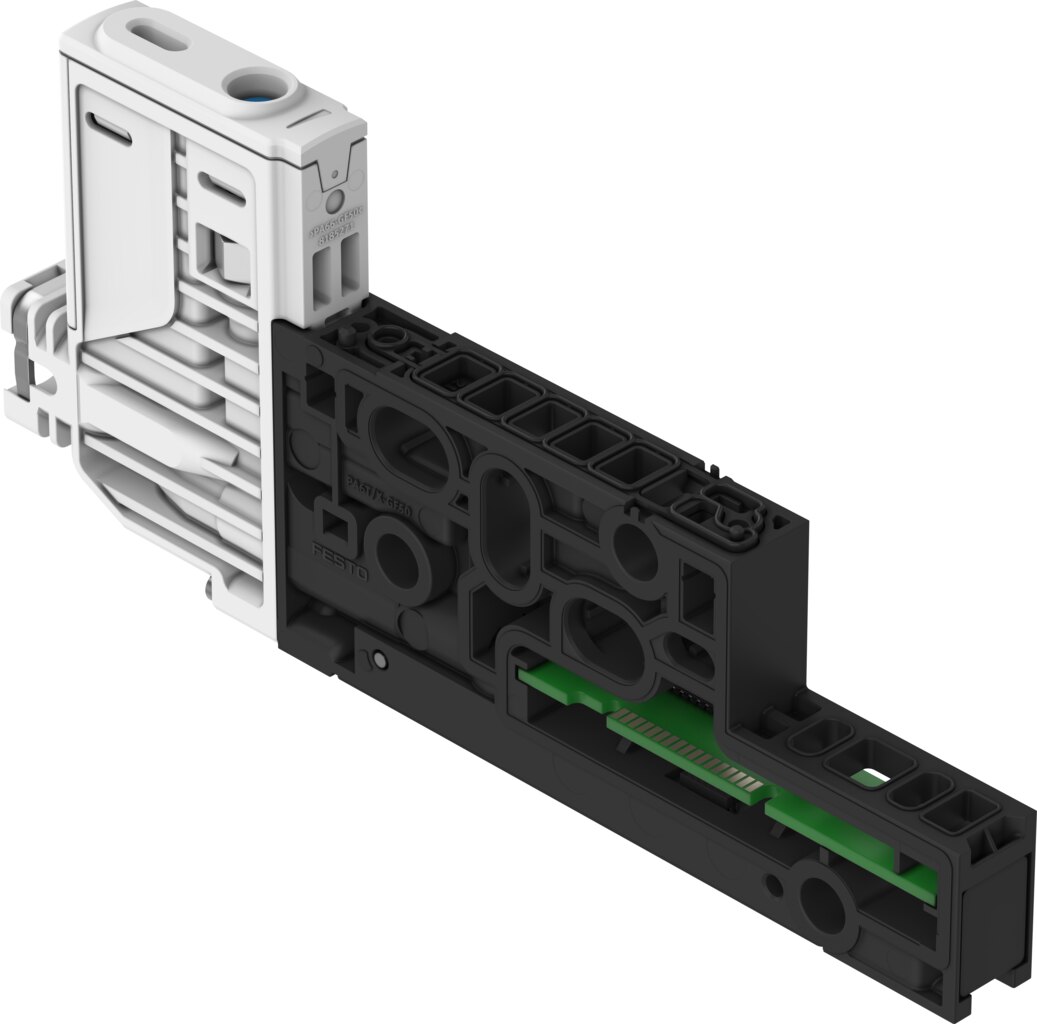

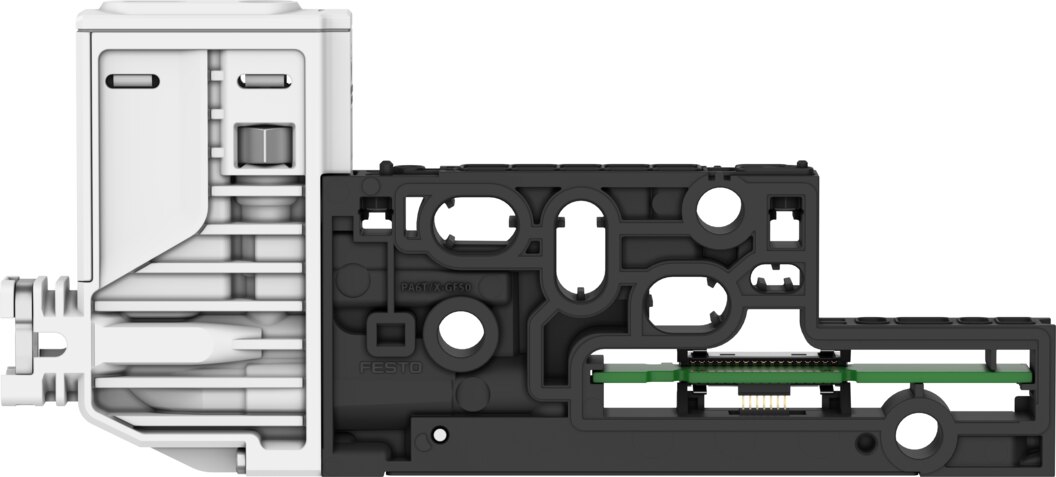

Vacuum manifold sub-base for valve terminal VTUX-A-P grid 12.55 mm VABX-A-P-VE-BH-VB07H - Festo 8233483
The vacuum manifold sub-base VABX-A-P-VE-BH-VB07H from Festo carries valves and supplies them with compressed air via common ducts. Important for selection: compatible with valve terminal VTUX-A-P, grid dimension 12.55 mm and 1 valve position.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The vacuum manifold sub-base VABX-A-P-VE-BH-VB07H carries valves and supplies them with compressed air via common ducts. Important for selection: compatible with valve terminal VTUX-A-P, grid dimension 12.55 mm and 1 valve position.
Your benefits
- Compatible with valve terminal VTUX-A-P
- Grid dimension 12.55 mm
- 1 valve position
- Operating pressure 2 to 7 bar
- Max. suction flow rate 18 l/min
- Max. vacuum 0.93 bar
Use
VABX-A-P-VE-BH-VB07H creates a compact valve group with little tubing and fitting effort. VABX-A-P-VE-BH-VB07H reduces tubing and assembly time in machine building.
Technical data
| Order code | VABX-A-P-VE-BH-VB07H |
|---|---|
| Festo part number | 8233483 |
| Width | 12.55 mm |
| Length | 150.8 mm |
| Nominal size, Laval nozzle | 0.7 mm |
| Grid dimension | 12.55 mm |
| Valve size | 10 mm |
| Vibration resistance | Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 |
| Silencer design | Open |
| Type of actuation | Electrical |
| Reverse polarity protection | Yes |
| Sealing principle | Soft |
| Mounting position | Any |
| Ejector characteristic | High vacuum |
| Adjustment component | Slotted head screw |
| Max. number of valve positions | 1 |
| Integrated function | Ejector pulse, electrical, Ejector pulse valve, electric, Flow control, On/off valve, electric, Check valve, Open silencer, With electrical interlinking module |
| Type of piloting | Piloted |
| Pilot air supply | Internal |

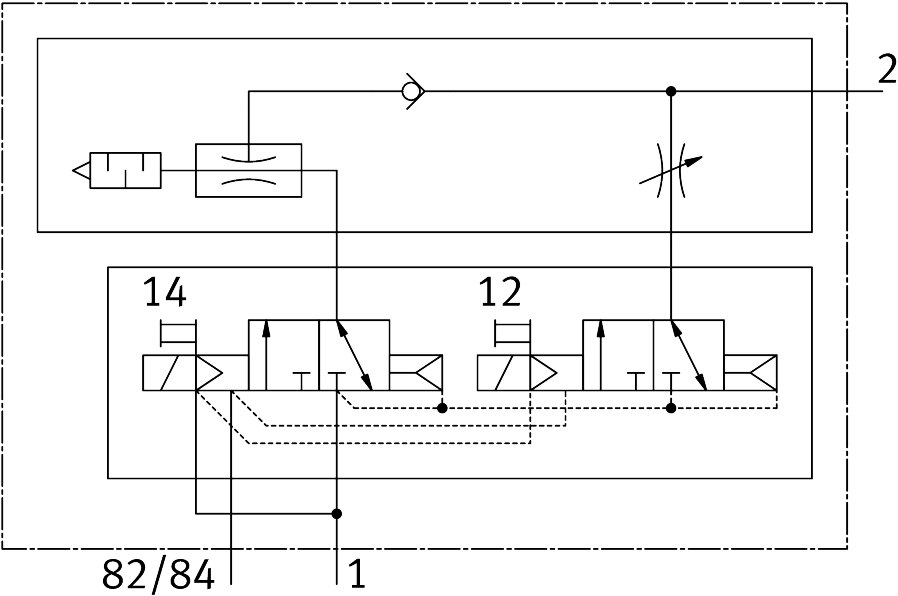

| Valve function | 2x3/2 closed monostable, 5/4-way valve with holding function, for vacuum generator |
| Compatible with | Valve terminal VTUX-A-P |
| Display type | LED |
| Signal status display | Yellow LED, valve control |
| Operating pressure for max. suction flow rate | 3 bar |
| Operating pressure | 2 to 7 bar |
| Operating pressure for max. vacuum | 4.4 bar |
| Max. vacuum | 0.93 bar |
| Nominal operating pressure | 6 bar |
| Pilot pressure | 2 to 7 bar |
| Max. suction flow rate against atmosphere | 18 l/min |
| Air supply time at nominal operating pressure | 0.37 s |
| Dimensions (W x L x H) | 12.55 mm x 150.8 mm x 68.8 mm |
| Inductive protective circuit | Integrated |
| Intern power consumption nominal operating voltage | Typ. 2 mA |
| Note regarding operating voltage | SELV/PELV fixed power supplies required, Note the voltage drop |
| Nominal operating voltage DC | 24 V |
| Permissible voltage fluctuations | +/-10% |
| Approval | RCM |
| KC mark | KC-EMV |
| CE mark (see declaration of conformity) | To EU EMC Directive, In accordance with EU RoHS Directive |
| UKCA marking (see declaration of conformity) | To UK instructions for EMC |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Ester oil below 0.1mg/m³, according to ISO 8573-1:2010 [-:-:2], Lubricated operation not possible |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-C1-L |
| Storage temperature | -20 to 70 °C |
| Relative air humidity | 5 - 95% |
| Degree of protection | IP65 |
| Note on degree of protection | In mounted state |
| Pilot medium | Compressed air to ISO 8573-1:2010 [7:4:-] |
| Ambient temperature | -5 to 50 °C |
| Nominal altitude of use | ≤ 2000 m NHN |
| Max. installation height | 2000 m |
| Product weight | 65 g |
| Electrical control | Multi-pin |
| Type of mounting | Tie rod |
| Pneumatic connection, port 2 | QS-4, QS-6, QS-8, QS-5/32, QS-1/8, QS-1/4, QS-5/16, For tubing outside diameter of 4 mm, For tubing outside diameter of 6 mm, For tubing outside diameter of 8 mm, For tubing outside diameter of 5/32", For tubing outside diameter of 1/4", For tubing outside diameter of 5/16" |
| Note on materials | RoHS compliant |
| Material sub-base | Reinforced PA |
| Material cover | Reinforced PA |
| Material seals | HNBR, NBR |
| Material receiver nozzle | POM |
| Material foil | Polyester |
| Material housing | Reinforced PA |
| Material sleeve | Reinforced PA |
| Material clip | High-alloy stainless steel |
| Material nut | High-alloy stainless steel |
| Material o-ring | HNBR, NBR |
| Material adjusting screw | Reinforced PA |
| Material silencer | PP, Polyurethane foam |
| Material screws | High-alloy stainless steel |
| Material transmitter nozzle | Wrought aluminium alloy |
| Weight | 0.07 kg |
| Manufacturer | Festo |
| Hersteller-Nr | VABX-A-P-VE-BH-VB07H |
| EAN | 4052568790066 |
| Zolltarifnummer | 84141089 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Seal material | HNBR, NBR |
| Medium | Compressed air |
| Actuation type | Electrical |
| Operating voltage | 24 V DC |
| Betriebsdruck max [bar] | 7 |
| Protection rating | IP65 |
| Temperature (max.) | 50 |
