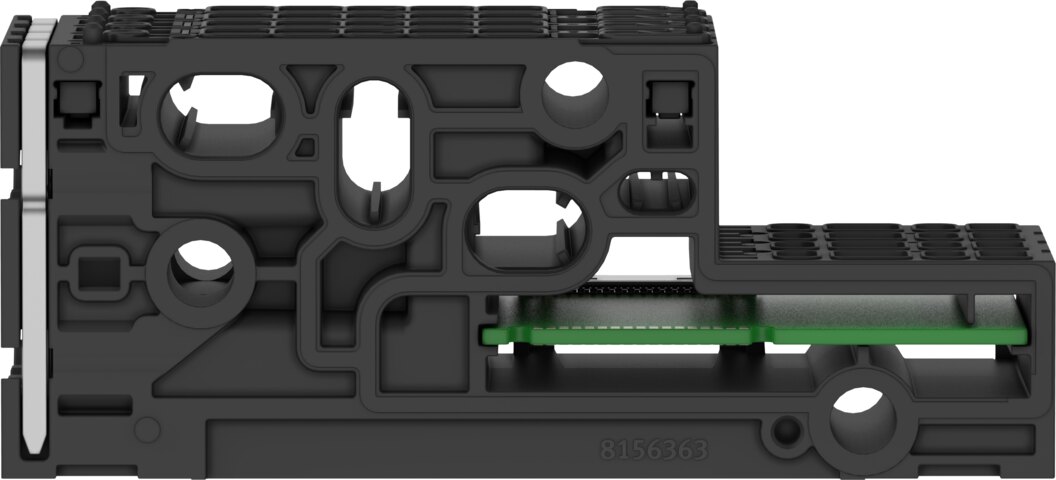

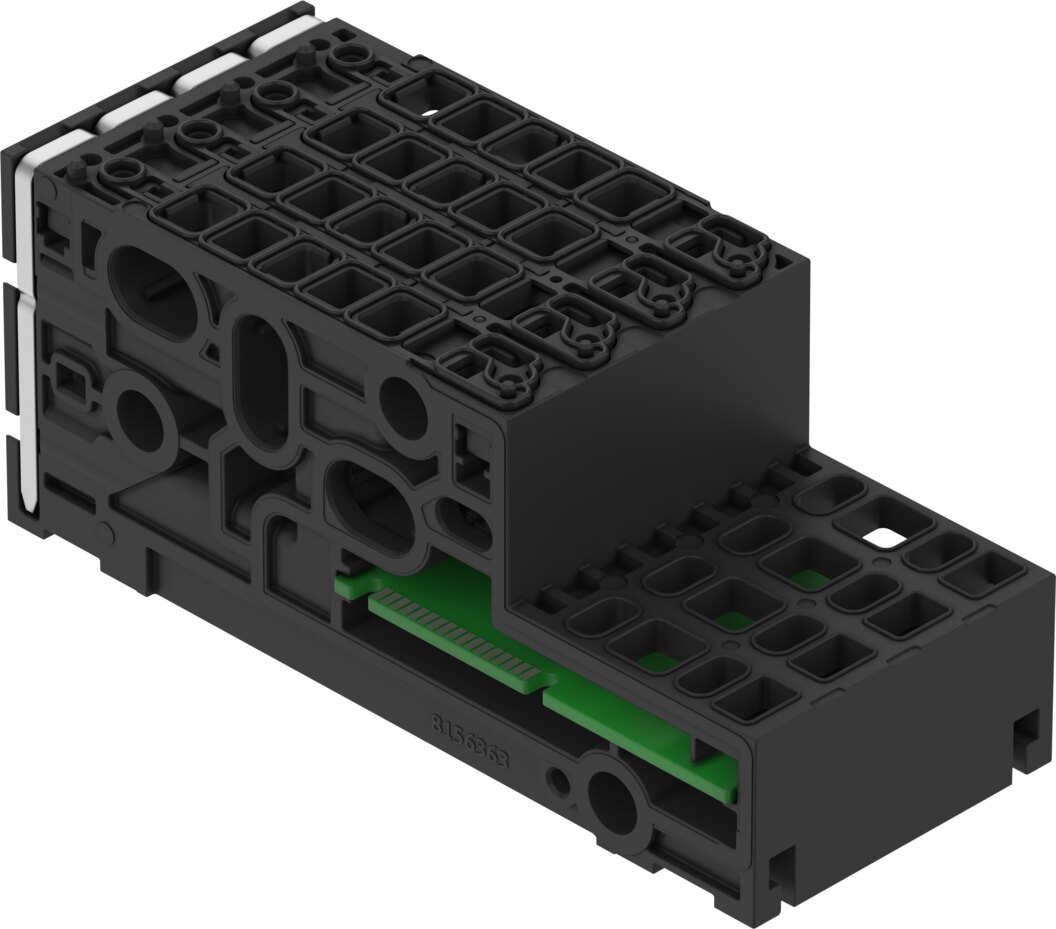

Manifold sub-base for valve terminal VTUX-A-S grid 12.55 mm VABX-A-S-BV-BH-RVBBBB - Festo 8188467
The manifold sub-base VABX-A-S-BV-BH-RVBBBB from Festo combines supply and exhaust for the mounted valves. The data sheet lists compatible with valve terminal VTUX-A-S, working ports 2 and 4 for 12 mm cartridge and grid dimension 12.55 mm.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The manifold sub-base VABX-A-S-BV-BH-RVBBBB combines supply and exhaust for the mounted valves. The data sheet lists compatible with valve terminal VTUX-A-S, working ports 2 and 4 for 12 mm cartridge and grid dimension 12.55 mm.
Benefits at a glance
- Compatible with valve terminal VTUX-A-S
- Working ports 2 and 4 for 12 mm cartridge
- Grid dimension 12.55 mm
- Max. 4 valve positions
- Up to 8 valve coils
- Nominal flow rate 690 l/min
Fields of application
VABX-A-S-BV-BH-RVBBBB reduces tubing and assembly time in machine building. A typical use of VABX-A-S-BV-BH-RVBBBB is building compact valve terminals in machine and plant engineering.
Technical data
| Order code | VABX-A-S-BV-BH-RVBBBB |
|---|---|
| Festo part number | 8188467 |
| Size | 2 |
| Grid dimension | 12.55 mm |
| Vibration resistance | Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 |
| Reverse polarity protection | Yes |
| Diagnostics via LED | Diagnostics per channel, Diagnostics per module |
| Diagnostics per internal communication | Switch-off load supply, Load supply undervoltage PL, Logic supply undervoltage PS, Load supply overvoltage PL, Logic supply overvoltage PS |
| Max. number of valve positions | 4 |
| Integrated function | With electrical interlinking module |
| Flow direction | Reversible |
| Max. number of valve coils | 8 |
| Compatible with | Valve terminal VTUX-A-S |
| Suitability for vacuum | Yes |
| Nominal flow rate standardised according to ISO 8778 | 690 l/min |
| Dimensions (W x L x H) | 50.05 mm x 104.3 mm x 43.1 mm |
| Fuse protection (short circuit) | Internal electronic fuse per channel |
| Inductive protective circuit | Integrated |
| Intrinsic current consumption at nominal operating voltage for electronics/sensors | Typical 24 mA |
| Intrinsic current consumption at nominal operating voltage load | Typical 7 mA |
| Note regarding operating voltage | SELV/PELV fixed power supplies required, Note the voltage drop |
| Power consumption at 24VDC | 0.74 W |
| Nominal DC operating voltage, electronics/sensors | 24 V |
| Nominal operating voltage DC of load | 24 V |
| Power failure bridging | 10 ms |
| Electrical isolation of outputs between channel - internal communication | Yes |
| Potential separation between the supply voltages electronics/sensor technology and load/valves | Yes |
| Pollution degree | 2 |
| Permissible voltage fluctuations for electronics/sensors | ±25% |
| Permissible voltage fluctuation of load | ±10% |
| Approval | RCM |
| KC mark | KC-EMV |
| CE mark (see declaration of conformity) | To EU EMC Directive, In accordance with EU RoHS Directive |
| Corrosion resistance class CRC | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Storage temperature | -20 to 70 °C |
| Relative air humidity | 5 - 95% |
| Degree of protection | IP65 |
| Overvoltage category | II |
| Ambient temperature | -5 to 50 °C |
| Nominal altitude of use | below 3000 m NHN |
| Product weight | 141.2 g |
| Electrical control | AP interface |
| Max. address volume, outputs | 1 byte |
| Communication interface, protocol | AP |
| Mounting method for sub-base | With through-hole |
| Type of mounting | Tie rod |
| Pneumatic connection, port 2 | For 12 mm cartridge |
| Pneumatic connection, port 4 | For 12 mm cartridge |
| Note on materials | RoHS compliant |
| Material sub-base | Reinforced PA |
| Material seals | NBR |
| Material retaining bracket | POM |
| Material sleeve | High-alloy stainless steel |
| Material clip | High-alloy stainless steel |
| Material nut | High-alloy stainless steel |
| Manufacturer | Festo |
| Hersteller-Nr | VABX-A-S-BV-BH-RVBBBB |
| EAN | 4052568651466 |
| Zolltarifnummer | 84819000 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Seal material | NBR |
| Operating voltage | 24 V DC |
| Protection rating | IP65 |
| Temperature (max.) | 50 |
