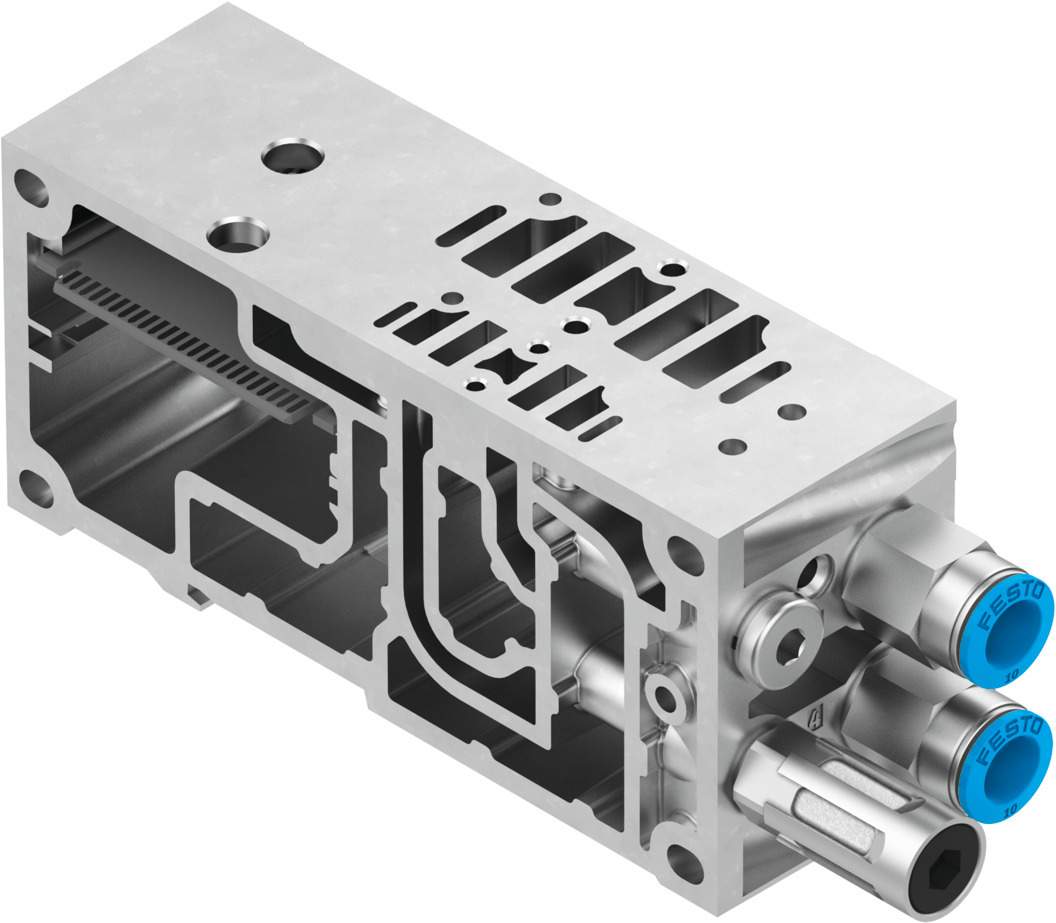

Manifold sub-base G1/4 width 54 mm VABV-S4-1HS-G14-CB-2T2 - Festo 8067940
The manifold sub-base VABV-S4-1HS-G14-CB-2T2 from Festo carries valves and supplies them with compressed air via common ducts. Important for selection: working ports 2 and 4 G1/4, width 54 mm and plate made of die-cast aluminium.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The manifold sub-base VABV-S4-1HS-G14-CB-2T2 carries valves and supplies them with compressed air via common ducts. Important for selection: working ports 2 and 4 G1/4, width 54 mm and plate made of die-cast aluminium.
Benefits
- Working ports 2 and 4 G1/4
- Width 54 mm
- Plate made of die-cast aluminium
- Corrosion resistance class CRC 0, for environments without corrosion stress
- PWIS conformity VDMA24364-B1/B2-L
Fields of application
A typical use of VABV-S4-1HS-G14-CB-2T2 is building compact valve terminals in machine and plant engineering. VABV-S4-1HS-G14-CB-2T2 creates a compact valve group with little tubing and fitting effort.
Technical data
| Order code | VABV-S4-1HS-G14-CB-2T2 |
|---|---|
| Festo part number | 8067940 |
| Construction width | 54 mm |
| CE mark (see declaration of conformity) | To EU Low Voltage Directive |
| Corrosion resistance class CRC | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Product weight | 579 g |
| Pneumatic connection, port 2 | G1/4 |
| Pneumatic connection, port 4 | G1/4 |
| Note on materials | RoHS compliant |
| Material plate | Die-cast aluminium |
| Weight | 0.7 kg |
| Manufacturer | Festo |
| Hersteller-Nr | VABV-S4-1HS-G14-CB-2T2 |
| EAN | 4052568299408 |
| Zolltarifnummer | 84819000 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | Die-cast aluminium |
| Thread | G 1/4 |
| Series | VABV |
| Pneumatic connection | G1/4 |
