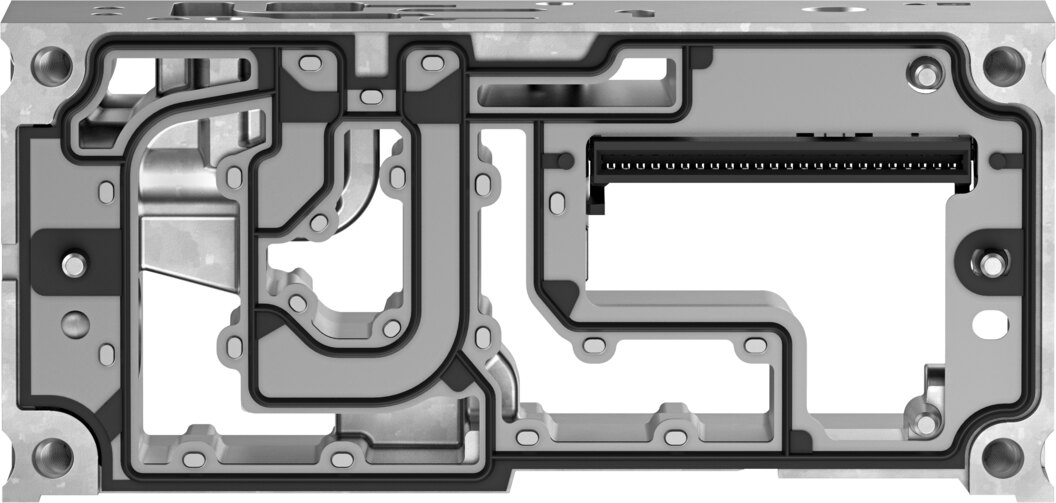

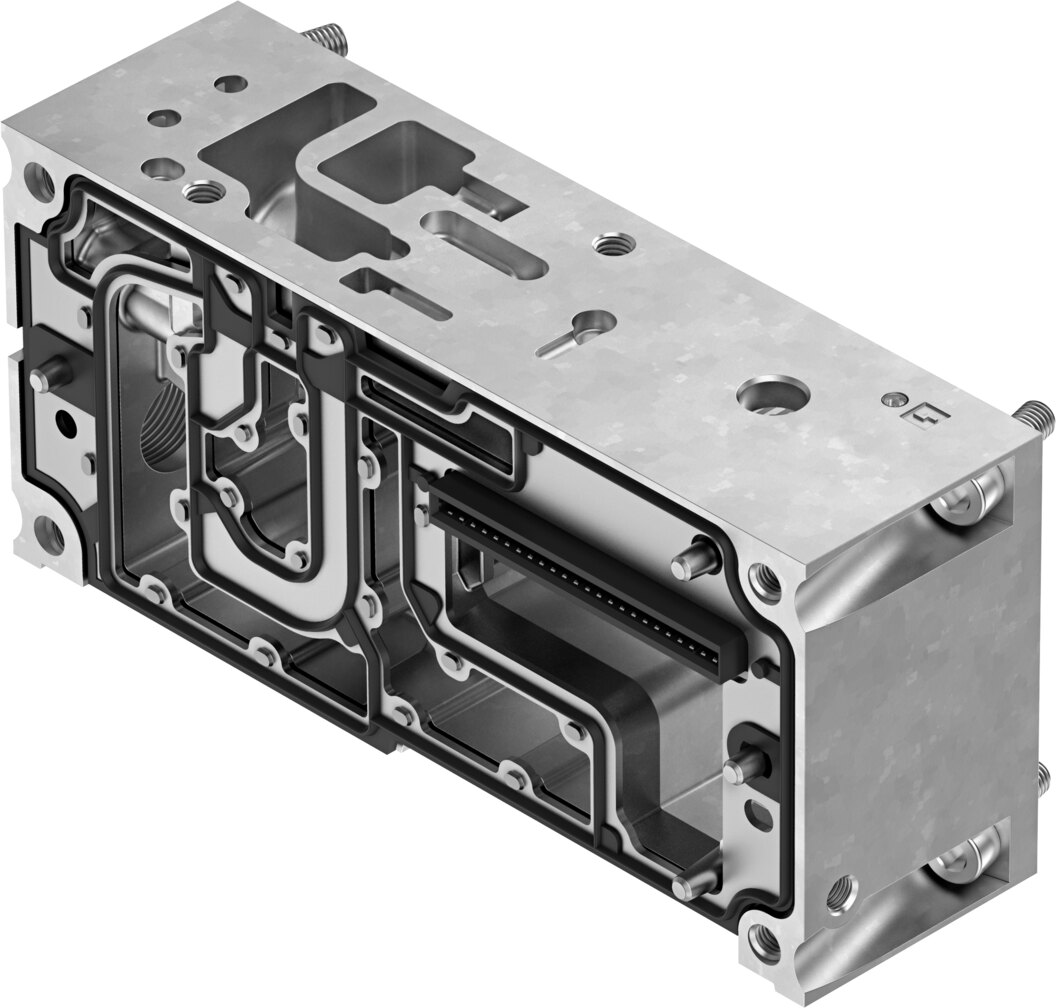

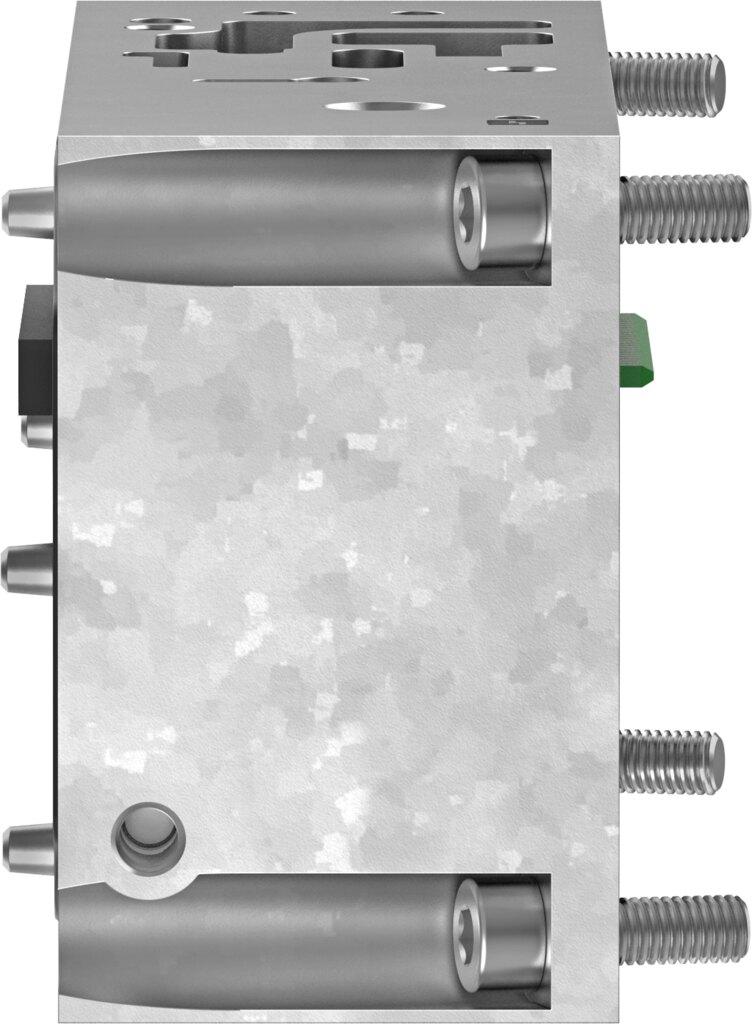

Manifold sub-base G3/8 width 41 mm VABV-S6-1Q-G38-CB-T5 - Festo 8068610
The manifold sub-base VABV-S6-1Q-G38-CB-T5 from Festo holds the valves and distributes supply and exhaust air via continuous ducts. Decisive are port 1 G3/8, width 41 mm and plate made of die-cast aluminium.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The manifold sub-base VABV-S6-1Q-G38-CB-T5 holds the valves and distributes supply and exhaust air via continuous ducts. Decisive are port 1 G3/8, width 41 mm and plate made of die-cast aluminium.
Your benefits
- Port 1 G3/8
- Width 41 mm
- Plate made of die-cast aluminium
- Corrosion resistance class CRC 0, for environments without corrosion stress
- PWIS conformity VDMA24364-B1/B2-L
Use
A typical use of VABV-S6-1Q-G38-CB-T5 is building compact valve terminals in machine and plant engineering. VABV-S6-1Q-G38-CB-T5 creates a compact valve group with little tubing and fitting effort.
Technical data
| Order code | VABV-S6-1Q-G38-CB-T5 |
|---|---|
| Festo part number | 8068610 |
| Construction width | 41 mm |
| CE mark (see declaration of conformity) | To EU Low Voltage Directive |
| Corrosion resistance class CRC | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Product weight | 421 g |

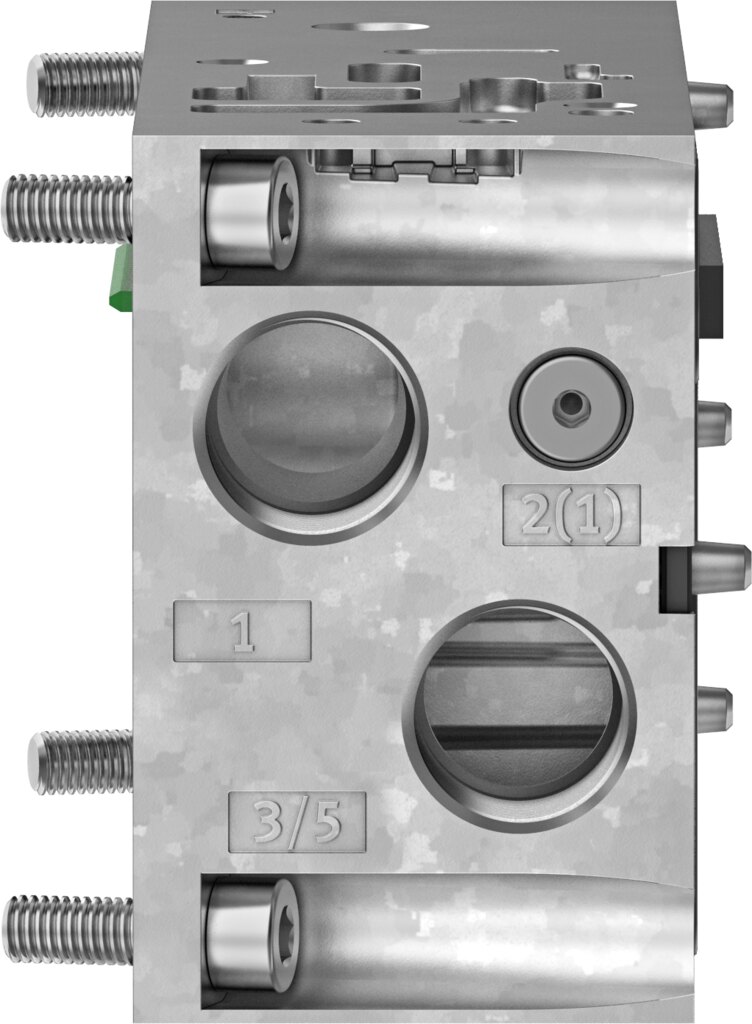

| Pneumatic connection, port 1 | G3/8 |
| Pneumatic connection, port 3 | G3/8 |
| Note on materials | RoHS compliant |
| Material plate | Die-cast aluminium |
| Weight | 0.5 kg |
| Manufacturer | Festo |
| Hersteller-Nr | VABV-S6-1Q-G38-CB-T5 |
| EAN | 4052568462147 |
| Zolltarifnummer | 84819000 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | Die-cast aluminium |
| Thread | G 3/8 |
| Series | VABV |
| Pneumatic connection | G3/8 |
