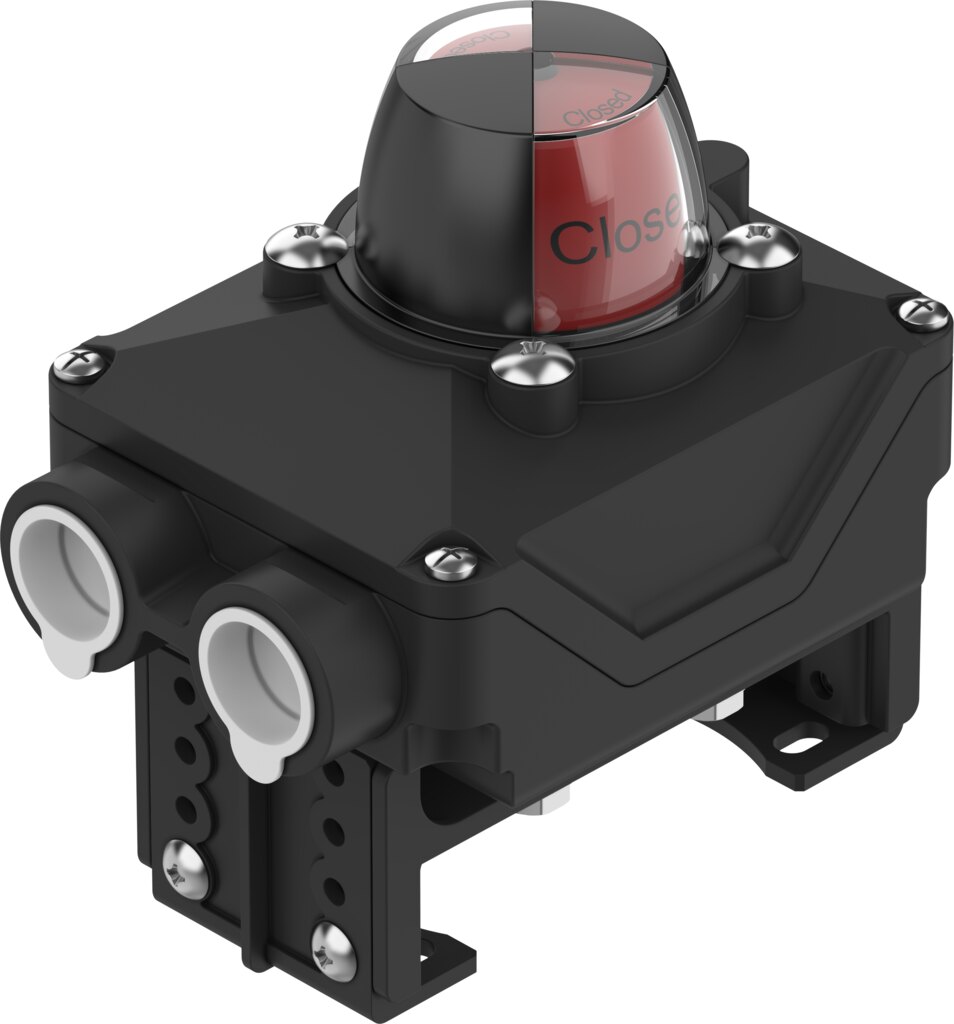

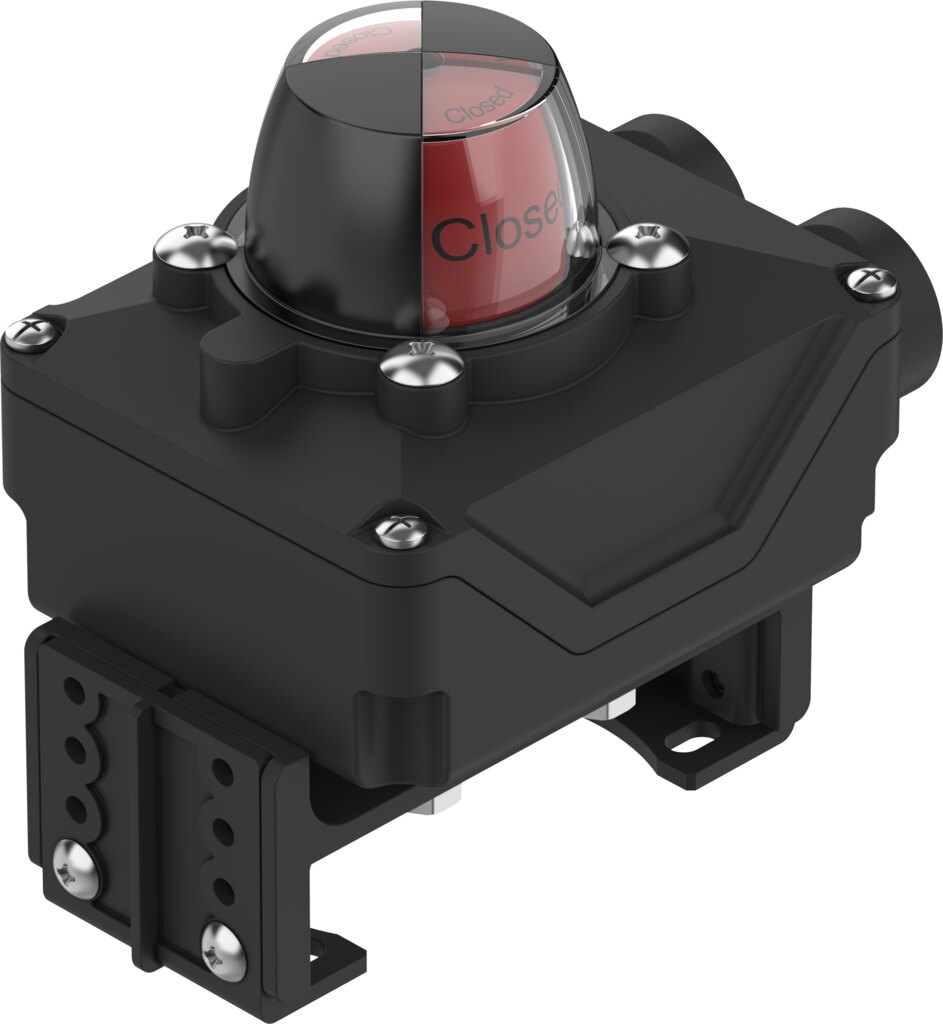

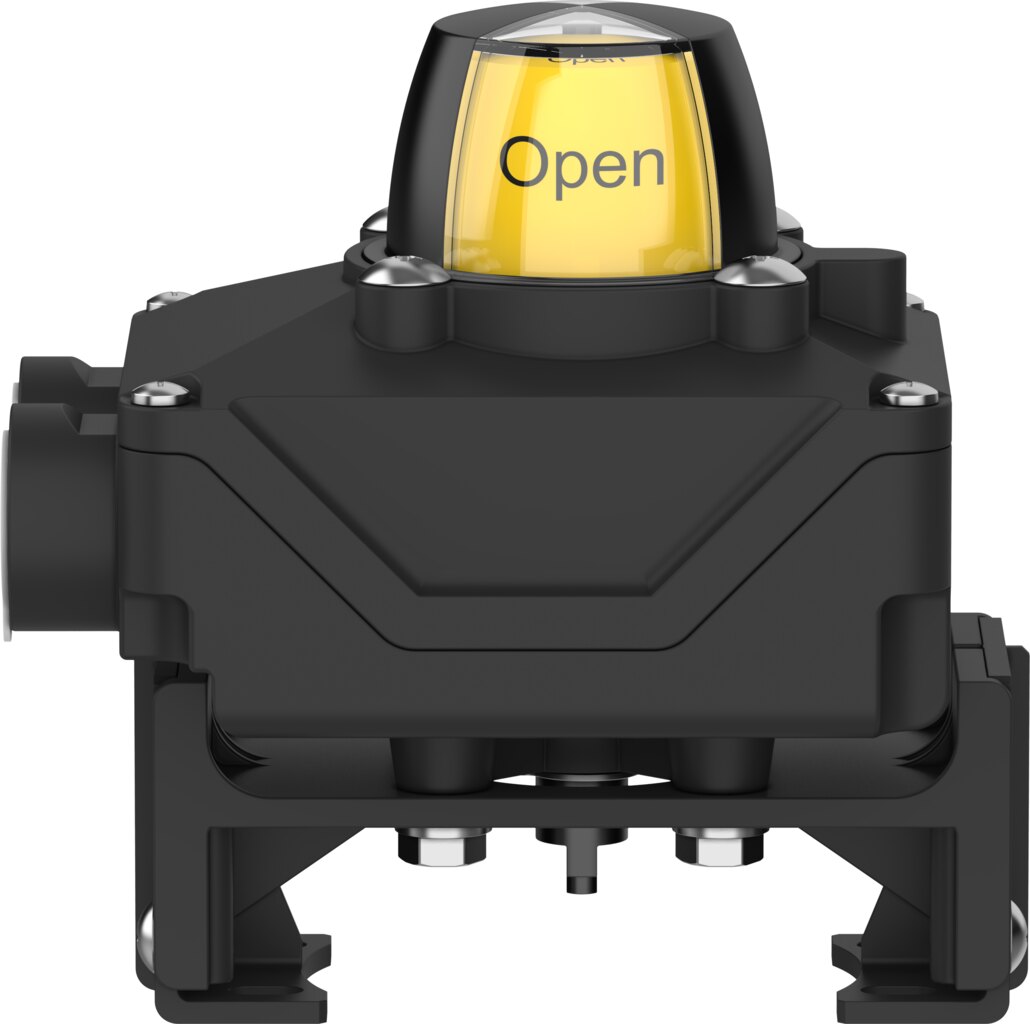

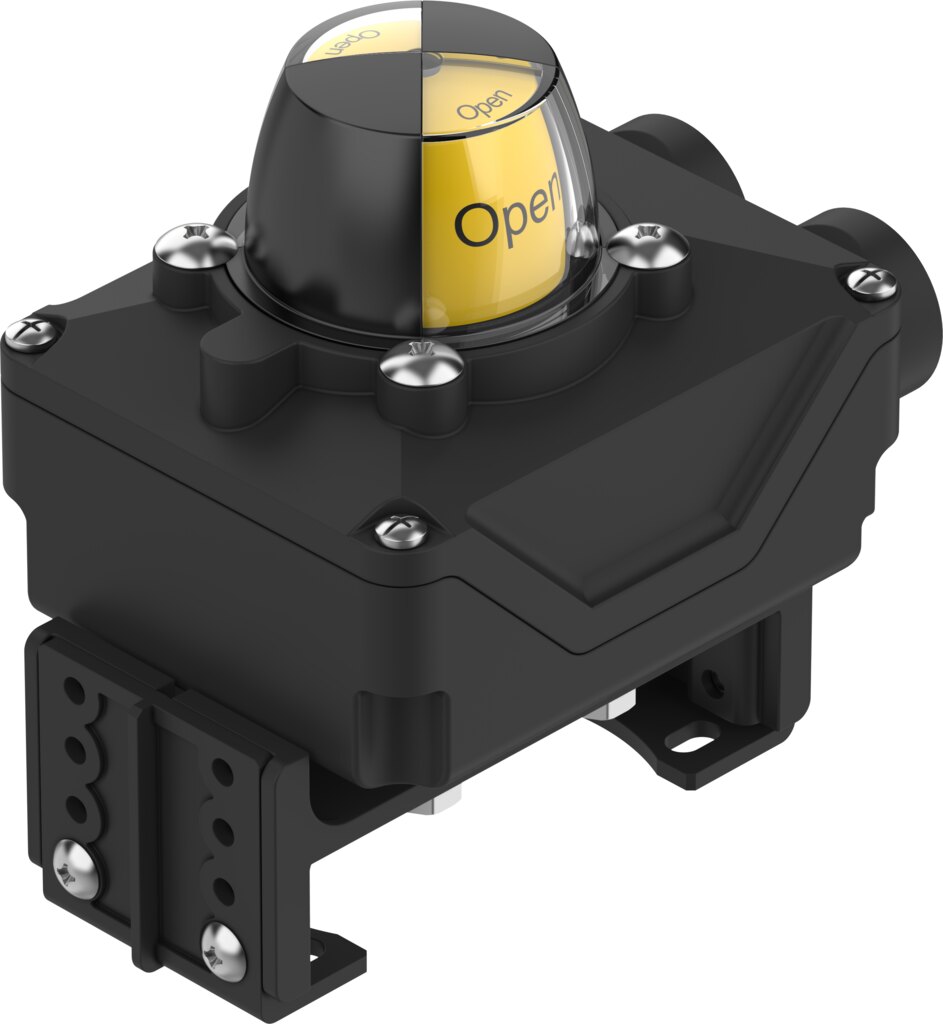

Limit switch box SRBK-CA4-YR90-N-1-P-C2 - Festo 8182178
Net
excl. VAT
€277.06
Item
FES-8182178
Manufacturer no.
SRBK-CA4-YR90-N-1-P-C2
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Technical data
| Approval | c CSA us (OL) |
|---|---|
| CE mark (see declaration of conformity) | To EU EMC Directive, To EU Low Voltage Directive, In accordance with EU RoHS Directive |
| UKCA marking (see declaration of conformity) | To UK RoHS instructions, To UK regulations for electrical equipment |
| Certificate issuing authority | Eurocert. 93927 |
| Note on materials | RoHS compliant |
| Safety Integrity Level (SIL) | SIL 3 |
| Measured variable | Position |
| Measuring principle | Inductive |
| Sensing range | 0 ... 90 deg |
| Ambient temperature | -20 ... 70 °C |
| Switching output | PNP |
| Switching element function | N/O contact |
| Max. output current DC | 100 mA |
| Voltage drop | 3 V |
| Off-state current | 0 ... 0.5 mA |
| Short circuit current rating | Pulsed |
| Operational voltage range DC | 10 ... 30 V |
| No-load supply current | 15 mA |
| Reverse polarity protection | For all electrical connections |
| Microswitch type | P&F NBB2-V3-E2 |
| Electrical connection | Screw terminal |
| Electrical connection 1, connection type | Terminal strip |
| Electrical connection 1, cable outlet | Straight |
| Electrical connection 1, design | Square |
| Electrical connection 1, connector system | Screw terminal |
| Electrical connection 1, number of connections/cores | 10 |
| Connectable nominal cross section conductor | 0.25 ... 2.5 mm² |
| Cable fitting | M20x1.5 |
| Dimensions (W x L x H) | 130 mm x 85 mm x 128 mm, 130 mm x 85 mm x 138 mm, 130 mm x 85 mm x 158 mm, 147 mm x 85 mm x 128 mm, 147 mm x 85 mm x 138 mm |
| Connection point for positioner and position sensor conforms to standard | VDI/VDE 3845 size AA 1, VDI/VDE 3845 size AA 2, VDI/VDE 3845 size AA 3 |
| Mounting position | Any |
| Product weight | 460 g |
| Housing colour | Black |
| Material housing | PA |
| Material seals | NBR |
| Material shaft | PA |
| Material screws | Stainless steel |
| Material mounting bracket | PA |
| Material snap ring | High-alloy stainless steel |
| Protective cap material | Makrolon® |
| Switching status indication | Optical |
| Position indicator | Yellow/red |
| Setting range of angular detection | 0 ... 90 deg |
| Storage temperature | -20 ... 50 °C |
| Degree of protection | IP66, IP67 |
| Shock resistance | Shock test with severity level 1 to FN 942017-5 and EN 60068-2-27 |
| Vibration resistance | Transport application test with severity level 1 to FN 942017-4 and EN 60068-2-6 |
| Corrosion resistance class CRC | 3 - high corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Pollution degree | 3 |
| Weight | 0.55 kg |
| Manufacturer | Festo |
| Hersteller-Nr | SRBK-CA4-YR90-N-1-P-C2 |
| EAN | 4052568622848 |
| Zolltarifnummer | 85365019 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
