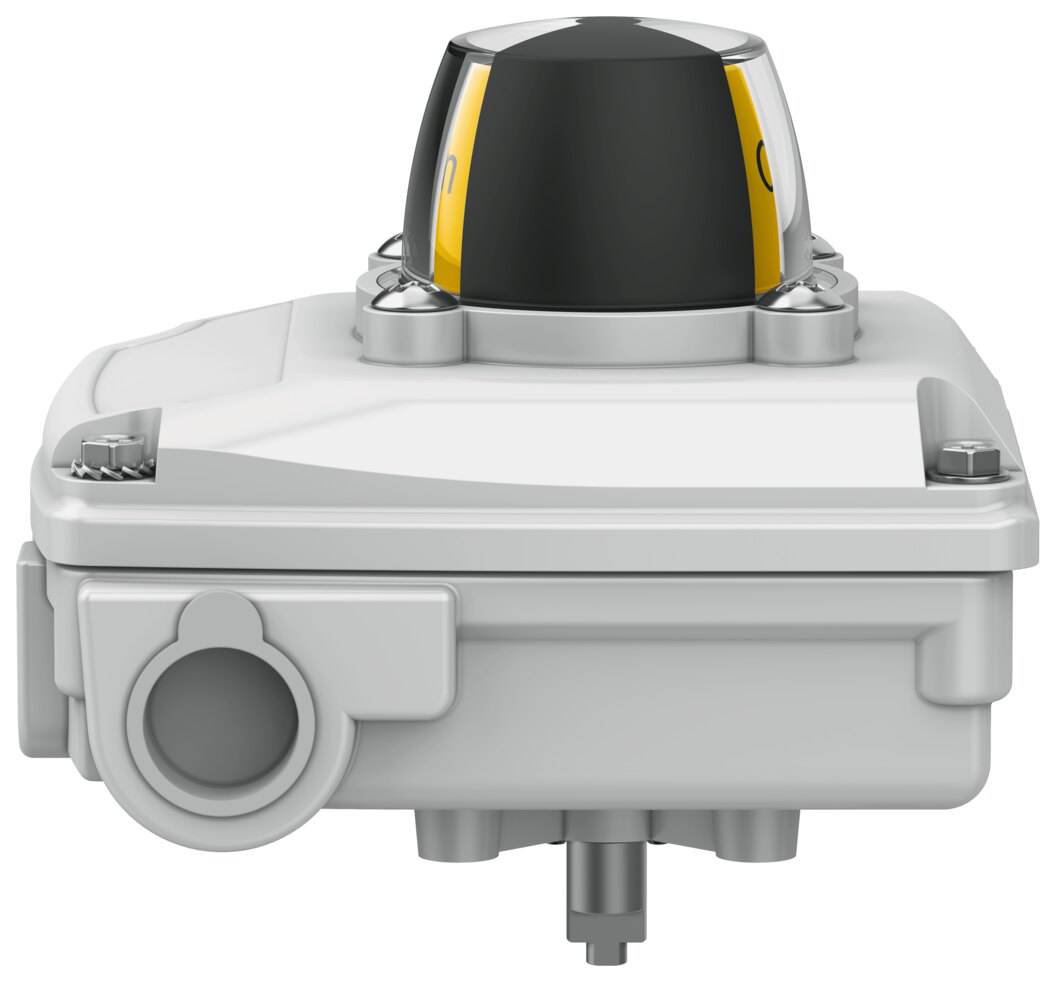

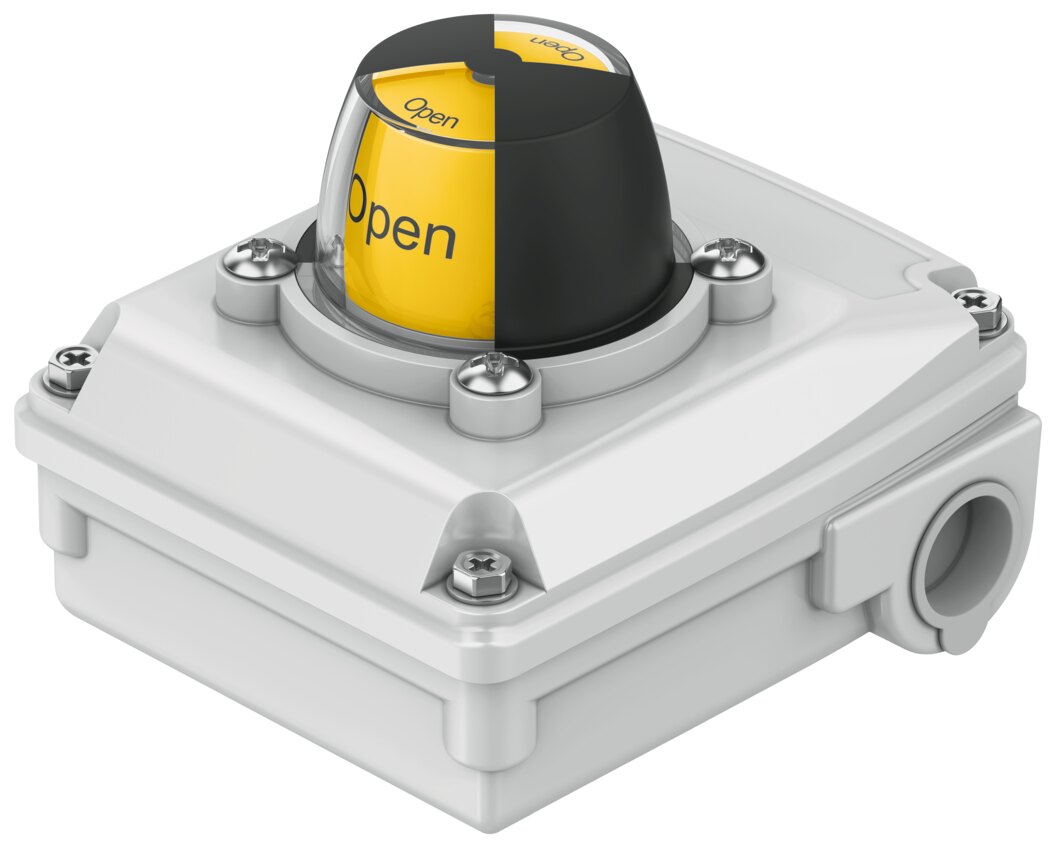

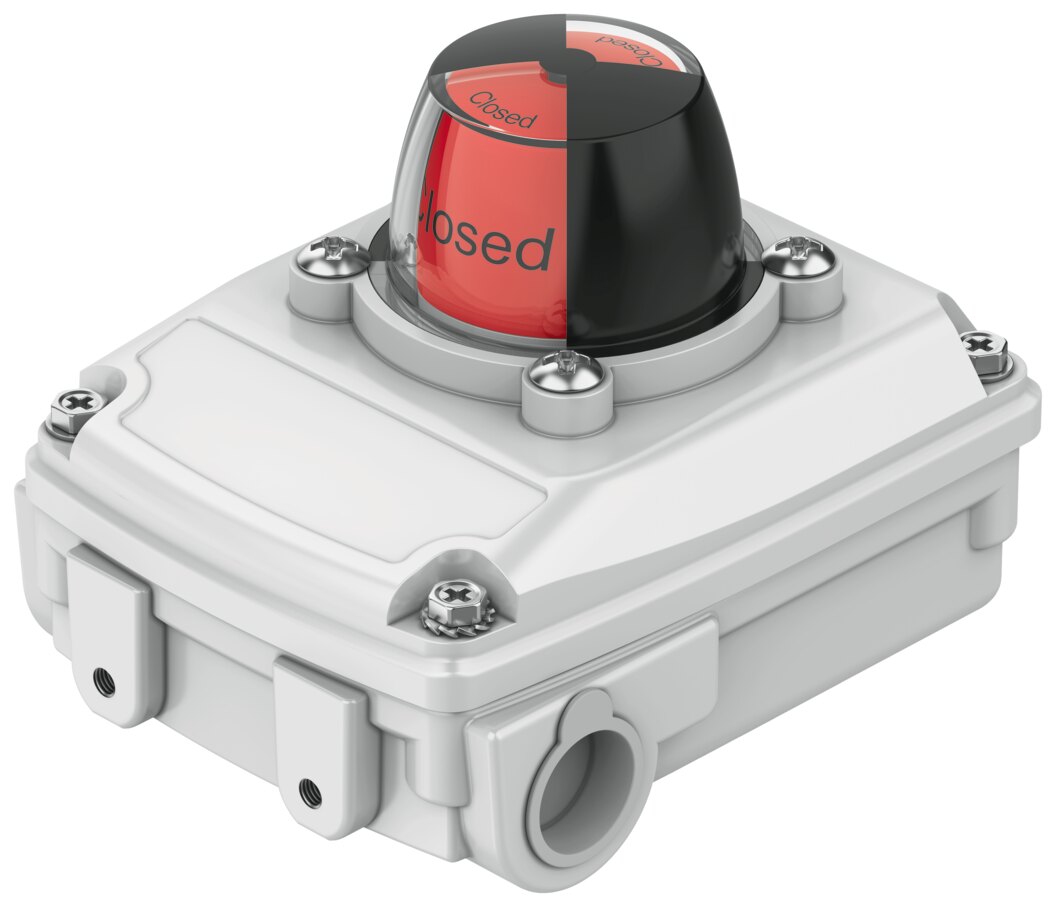

Limit switch box switching output contacting mechanical/electrical angle 0 to 90° SRBC-CA5-YR90-MW-22A-1W-C2 - Festo 8137103
Reports the position of a quarter-turn actuator to the PLC. Mounting is direct on the actuator interface. The Festo limit switch box SRBC-CA5-YR90-MW-22A-1W-C2 comes with angle detection adjustable 0 to 90° and switching output contacting, switching function changeover switch, single-pole.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Reports the position of a quarter-turn actuator to the PLC. Mounting is direct on the actuator interface. The Festo limit switch box SRBC-CA5-YR90-MW-22A-1W-C2 offers angle detection adjustable 0 to 90° as well as switching output contacting, switching function changeover switch, single-pole.
Benefits
- Angle detection adjustable 0 to 90°
- Switching output contacting, switching function changeover switch, single-pole
- Switching element Omron SS-5
- Suitable up to SIL 3 (Safety Integrity Level)
- Degree of protection IP66, IP67, NEMA 4/4X, dust-tight and protected against water jets
- For cable diameters of 5 to 13 mm
Applications
For process valves and butterfly valves with quarter-turn actuators in process engineering. To reorder, the type SRBC-CA5-YR90-MW-22A-1W-C2 or Festo number 8137103 is sufficient.
Technical data
| Feature | Value |
|---|---|
| Type | SRBC-CA5-YR90-MW-22A-1W-C2 |
| Festo part number | 8137103 |
| Certification | c CSA us (OL) |
| CE marking (see declaration of conformity) | to EU Low Voltage Directive, to EU RoHS Directive |
| UKCA marking (see declaration of conformity) | to UK RoHS regulations, to UK electrical equipment regulations |
| Certificate issuing authority | Eurocert. 93927 |
| Note on materials | RoHS compliant |
| Safety Integrity Level (SIL) | SIL 3 |
| Measuring principle | mechanical/electrical |
| Ambient temperature | -20 to 80 °C |
| Switching output | contacting |
| Switching element function | changeover switch, single-pole |
| Max. output current AC | 3000 mA |
| Max. output current DC | 3000 mA |
| Operating voltage range AC | 0 to 230 V |
| Operating voltage range DC | 0 to 30 V |
| Microswitch type | Omron SS-5 |
| Electrical connection | screw terminal |
| Electrical connection 1, connection type | terminal strip |
| Electrical connection 1, cable outlet | straight |
| Electrical connection 1, connection technology | spring-loaded terminal |
| Electrical connection 1, number of pins/wires | 10 |
| Connectable conductor cross-section | 0.25 to 2.5 mm² |
| Permissible cable diameter | 5 to 13 mm |
| Dimensions W x L x H | 114 mm x 98 mm x 122 mm |
| Type of mounting | on flange to ISO 5211 |
| Mounting position | any |
| Product weight | 800 g |
| Housing colour | grey |
| Material housing | die-cast aluminium |
| Material seals | NBR |
| Material shaft | high-alloy stainless steel |
| Material screws | high-alloy stainless steel |
| Material mounting bracket | high-alloy stainless steel |
| Material circlip | high-alloy stainless steel |
| Material washer | high-alloy stainless steel |
| Material cover cap | PC |
| Position indicator | yellow / red |
| Angle detection setting range | 0 to 90° |
| Storage temperature | -20 to 50 °C |
| Degree of protection | IP66, IP67, NEMA 4/4X |
| Shock resistance | Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 |
| Vibration resistance | Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
| Corrosion resistance class CRC | 0 - no corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Suitability for the production of Li-ion batteries | suitable for battery production with reduced Cu/Zn/Ni values (F1a) |
| Pollution degree | 3 |
| Weight | 0.7 kg |
| Manufacturer | Festo |
| Hersteller-Nr | SRBC-CA5-YR90-MW-22A-1W-C2 |
| EAN | 4052568586645 |
| Zolltarifnummer | 85365080 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Colour | Grey |
| Material | Die-cast aluminium |
| Seal material | NBR |
| Housing material | Die-cast aluminium |
| Series | SRBC |
| Protection rating | IP66 |
| Temperaturbereich | -20-80 °C |
| Temperature (max.) | 80 |
