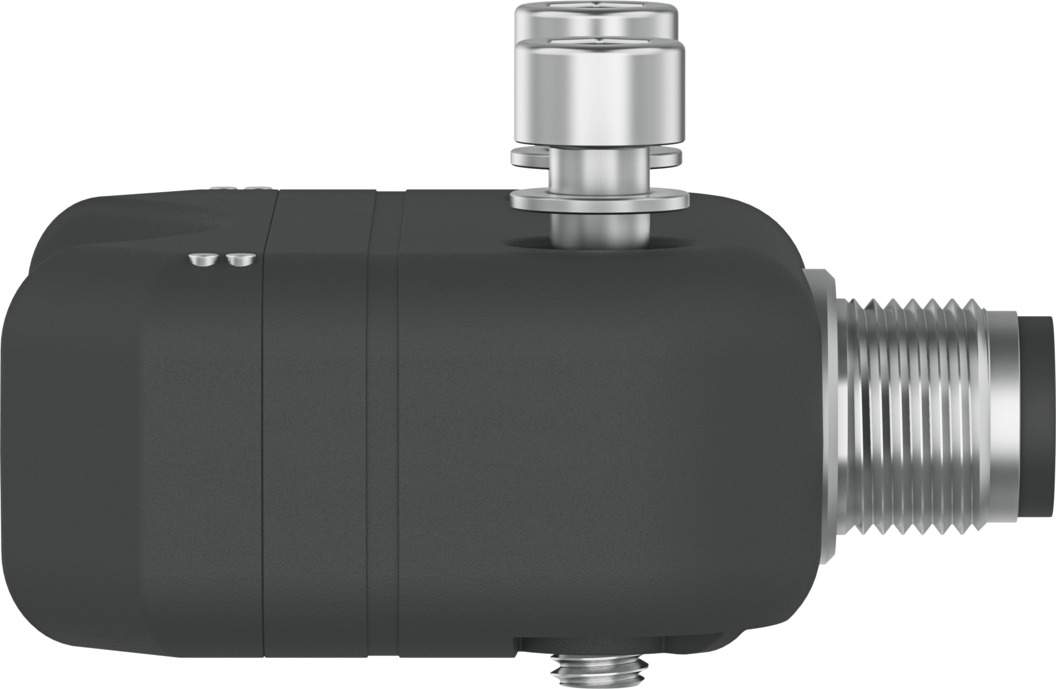

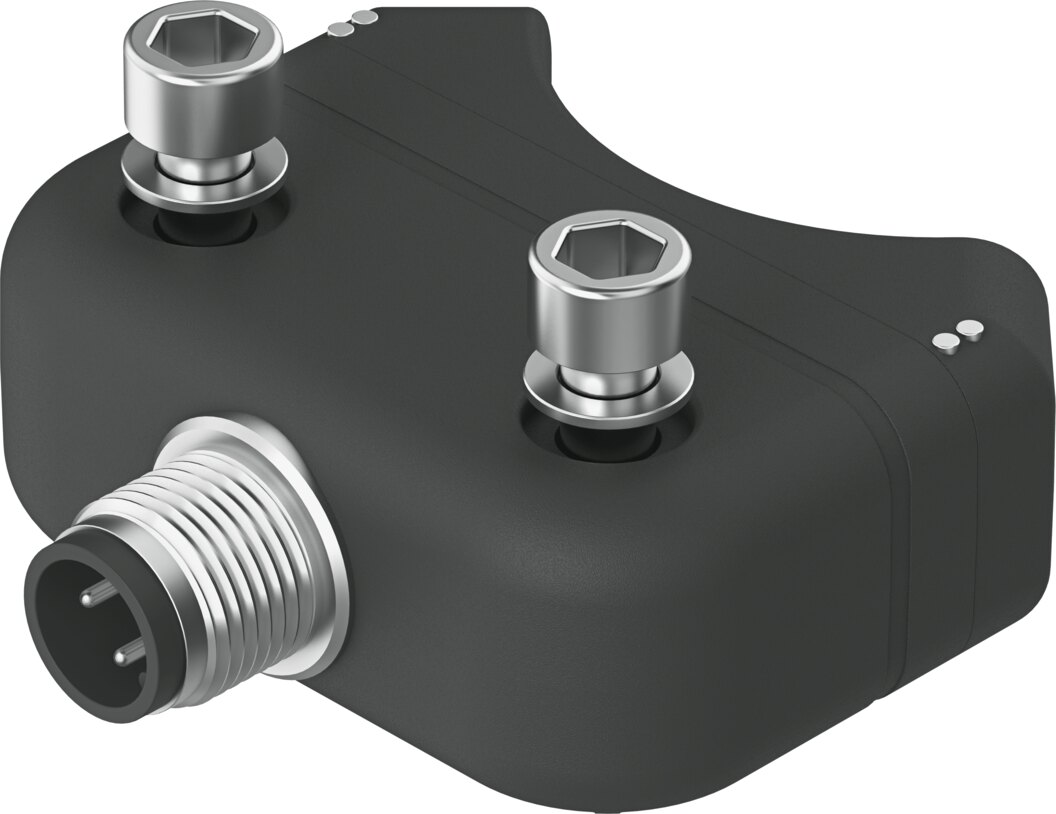

Limit switch box switching output PNP inductive SRBI-C2-N-1-P-M12 - Festo 8140399
Reports the position of a quarter-turn actuator to the PLC. Mounting is direct on the actuator interface. Festo limit switch box SRBI-C2-N-1-P-M12 comes with switching output PNP, switching function N/O contact and mounting interface to VDI/VDE 3845.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Festo limit switch box SRBI-C2-N-1-P-M12: switching output PNP, switching function N/O contact, plus mounting interface to VDI/VDE 3845. Reports the position of a quarter-turn actuator to the PLC. Mounting is direct on the actuator interface.
Benefits
- Switching output PNP, switching function N/O contact
- Mounting interface to VDI/VDE 3845
- Degree of protection IP67 for harsh industrial environments
- Operating range -25 to 70 °C ambient temperature
Applications
For process valves and butterfly valves with quarter-turn actuators in process engineering. The order code SRBI-C2-N-1-P-M12 defines the version unambiguously.
Technical data
| Feature | Value |
|---|---|
| Type | SRBI-C2-N-1-P-M12 |
| Festo part number | 8140399 |
| Design | square |
| Based on standard | VDI/VDE 3845 |
| Certification | RCM mark, c UL us - Recognized (OL) |
| CE marking (see declaration of conformity) | to EU EMC Directive, to EU RoHS Directive |
| UKCA marking (see declaration of conformity) | to UK RoHS regulations |
| Certificate issuing authority | UL E232949 |
| Note on materials | RoHS compliant |
| Measuring principle | inductive |
| Ambient temperature | -25 to 70 °C |
| Switching output | PNP |
| Switching element function | N/O contact |
| Max. switching frequency | 1000 Hz |
| Max. output current DC | 200 mA |
| Voltage drop | 2.5 V |
| Residual current | 0 to 0.5 mA |
| Short-circuit protection | pulsed |
| Operating voltage range DC | 10 to 30 V |
| No-load supply current | 22.5 mA |
| Reverse polarity protection | for all electrical connections |
| Electrical connection input | plug, M12x1, 4-pin |
| Mounting position | any |
| Product weight | 48 g |
| Material housing | PBT |
| Material screws | high-alloy stainless steel |
| Ready status indication | LED green |
| Switching status indication | LED yellow |
| Status indication | LED yellow = valve switching status, LED green = operating voltage indicator |
| Storage temperature | -40 to 85 °C |
| Degree of protection | IP67 |
| Shock resistance | Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 |
| Vibration resistance | Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Pollution degree | 3 |
| Weight | 0.07 kg |
| Manufacturer | Festo |
| Hersteller-Nr | SRBI-C2-N-1-P-M12 |
| EAN | 4052568568658 |
| Zolltarifnummer | 85365019 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | PBT |
| Bauform | eckig |
| Protection rating | IP67 |
| Temperature (max.) | 70 |
