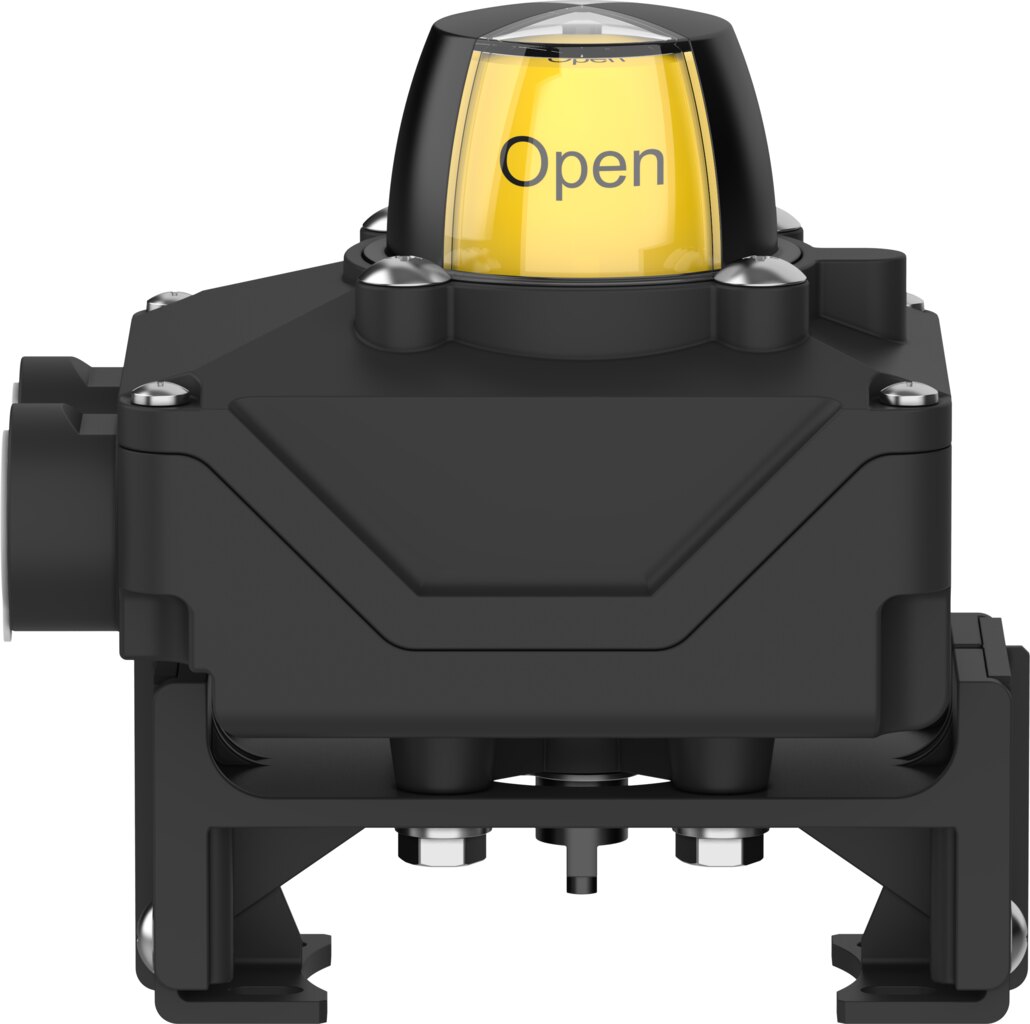

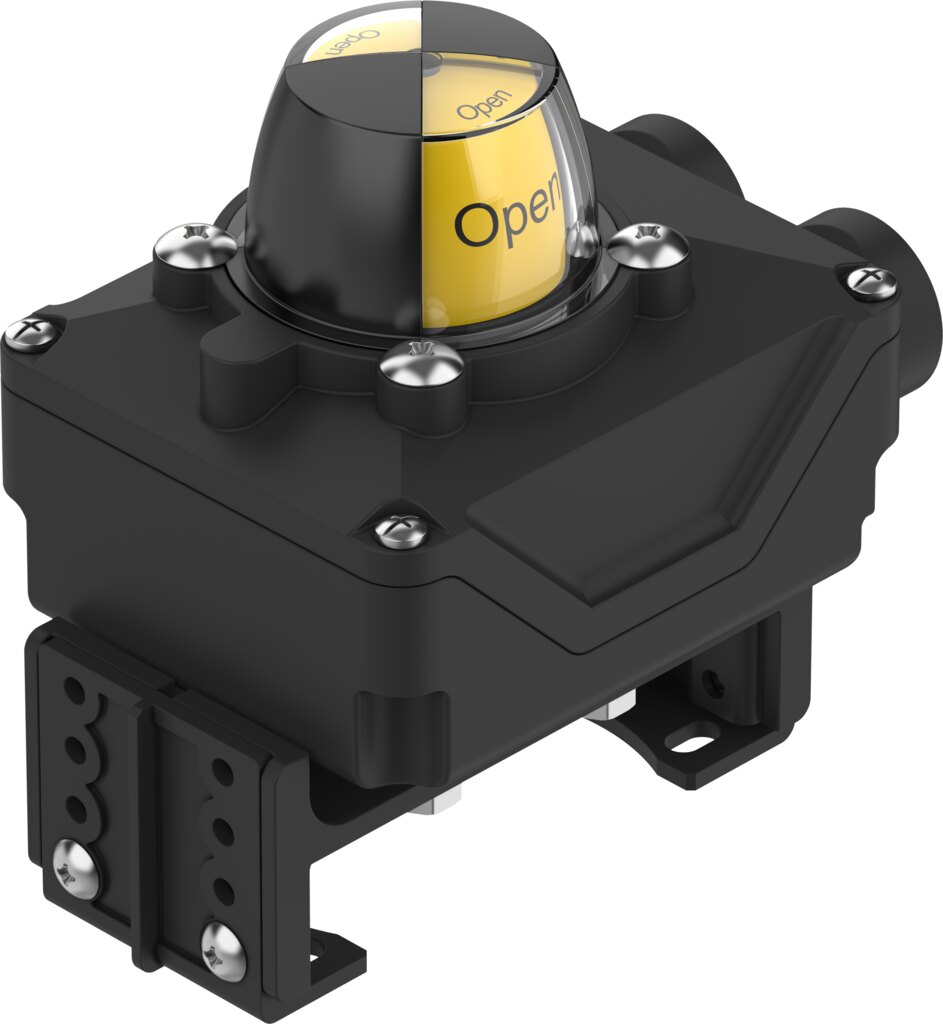

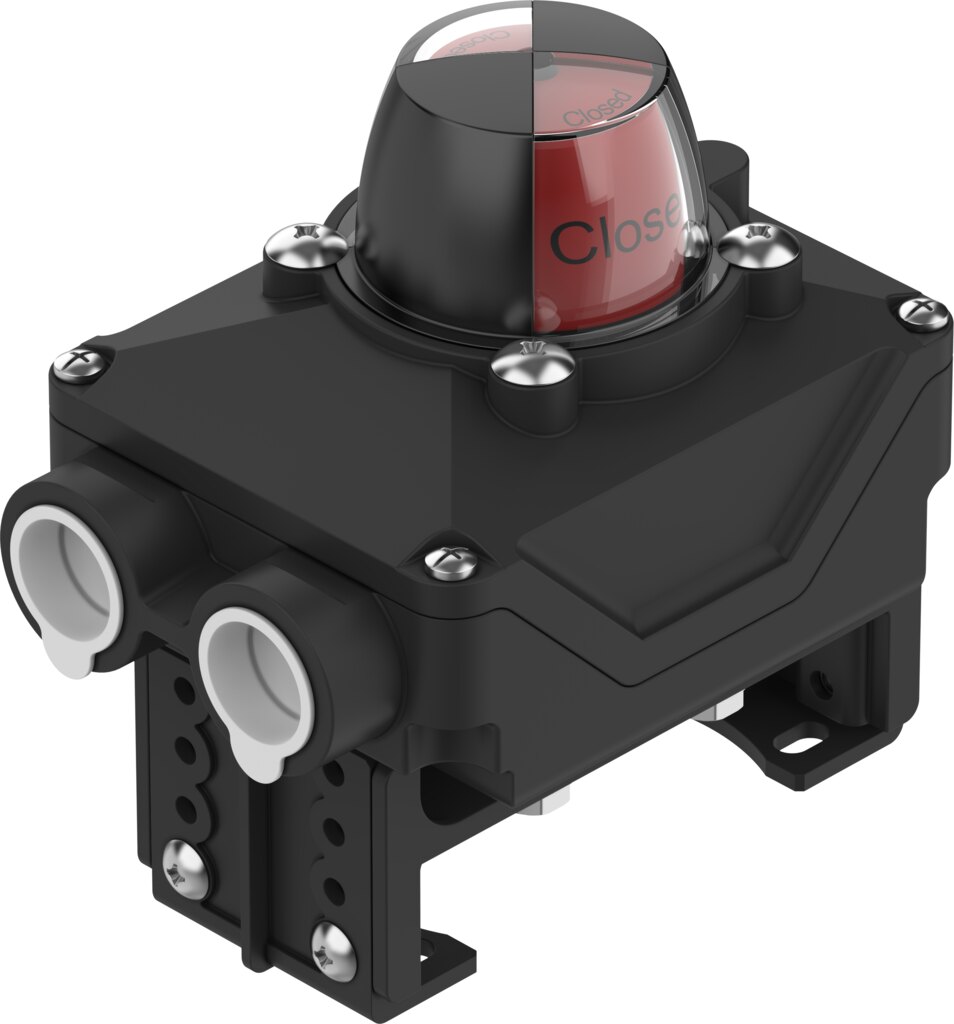

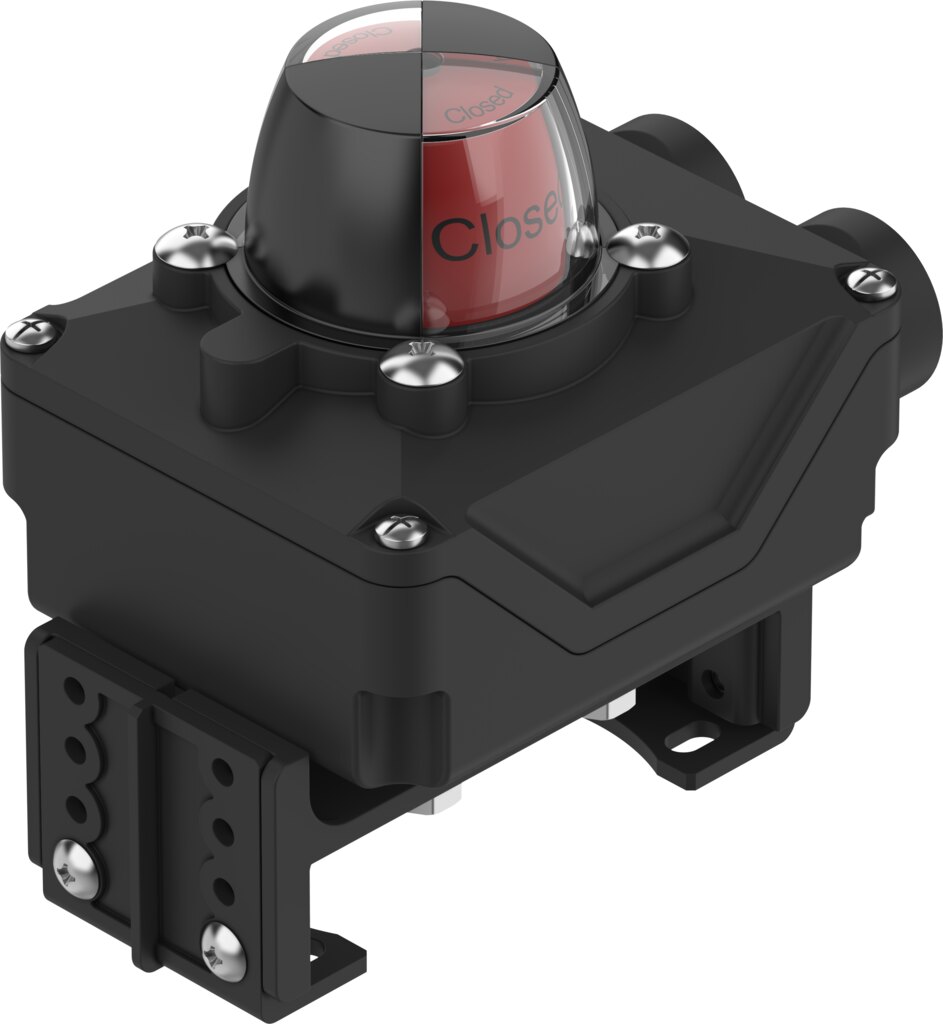

Limit switch box switching output contacting mechanical/electrical angle 0 to 90° SRBK-CA4-YR90-MW-22A-1W-C2 - Festo 8182177

Festo ✓ Original product Brand new

Reports the position of a quarter-turn actuator to the PLC. Mounting is direct on the actuator interface. The Festo limit switch box SRBK-CA4-YR90-MW-22A-1W-C2 comes with angle detection adjustable 0 to 90° and switching output contacting, switching function changeover switch, single-pole.

Net
€95.42
excl. VAT
Item FES-8182177
Manufacturer no. SRBK-CA4-YR90-MW-22A-1W-C2
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

Reports the position of a quarter-turn actuator to the PLC. Mounting is direct on the actuator interface. The Festo limit switch box SRBK-CA4-YR90-MW-22A-1W-C2 offers angle detection adjustable 0 to 90° as well as switching output contacting, switching function changeover switch, single-pole.

Benefits

  • Angle detection adjustable 0 to 90°
  • Switching output contacting, switching function changeover switch, single-pole
  • Switching element Omron SS-5
  • Suitable up to SIL 3 (Safety Integrity Level)
  • Mounting interface to VDI/VDE 3845 size AA 1, VDI/VDE 3845 size AA 2, VDI/VDE 3845 size AA 3
  • Degree of protection IP66, IP67, dust-tight and protected against water jets

Applications

For process valves and butterfly valves with quarter-turn actuators in process engineering. The order code SRBK-CA4-YR90-MW-22A-1W-C2 defines the version unambiguously.

Technical data

FeatureValue
TypeSRBK-CA4-YR90-MW-22A-1W-C2
Festo part number8182177
Certificationc CSA us (OL)
CE marking (see declaration of conformity)to EU EMC Directive, to EU Low Voltage Directive, to EU RoHS Directive
UKCA marking (see declaration of conformity)to UK RoHS regulations, to UK electrical equipment regulations
Certificate issuing authorityEurocert. 93927
Note on materialsRoHS compliant
Safety Integrity Level (SIL)SIL 3
Measured variableposition
Measuring principlemechanical/electrical
Sensing range0 to 90°
Ambient temperature-20 to 70 °C
Switching outputcontacting
Switching element functionchangeover switch, single-pole
Max. switching output voltage DC30 V
Max. output current AC3000 mA
Max. output current DC1000 mA
Operating voltage range AC0 to 230 V
Operating voltage range DC0 to 30 V
Microswitch typeOmron SS-5
Electrical connectionscrew terminal
Electrical connection 1, connection typeterminal strip
Electrical connection 1, cable outletstraight
Electrical connection 1, designsquare
Electrical connection 1, connection technologyscrew terminal
Electrical connection 1, number of pins/wires10
Connectable conductor cross-section0.25 to 2.5 mm²
Cable glandM20x1.5
Dimensions W x L x H130 mm x 85 mm x 128 mm, 130 mm x 85 mm x 138 mm, 130 mm x 85 mm x 158 mm, 147 mm x 85 mm x 128 mm, 147 mm x 85 mm x 138 mm
Interface for positioner and position feedback to standardVDI/VDE 3845 size AA 1, VDI/VDE 3845 size AA 2, VDI/VDE 3845 size AA 3
Mounting positionany
Product weight460 g
Housing colourblack
Material housingPA
Material sealsNBR
Material shaftPA
Material screwsstainless steel
Material mounting bracketPA
Material circliphigh-alloy stainless steel
Material protective capPC
Switching status indicationoptical
Position indicatoryellow / red
Angle detection setting range0 to 90°
Storage temperature-20 to 50 °C
Degree of protectionIP66, IP67
Protection classII
Shock resistanceShock test with severity level 1 to FN 942017-5 and EN 60068-2-27
Vibration resistanceTransport application test with severity level 1 to FN 942017-4 and EN 60068-2-6
Corrosion resistance class CRC3 - high corrosion stress
LABS (PWIS) conformityVDMA24364 zone III
Pollution degree3
Weight0.5 kg
ManufacturerFesto
Hersteller-NrSRBK-CA4-YR90-MW-22A-1W-C2
EAN4052568622831
Zolltarifnummer85365080
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
ColourBlack
MaterialPA
Seal materialNBR
Housing materialPA
Protection ratingIP66
Temperaturbereich-20-70 °C
Temperature (max.)70
