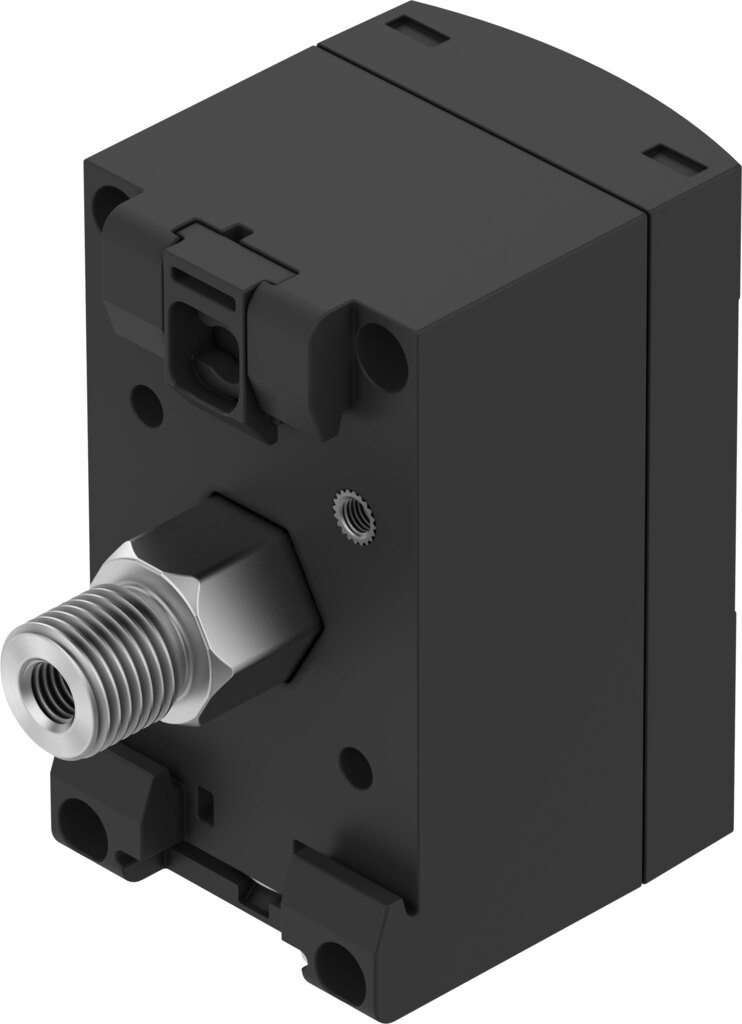

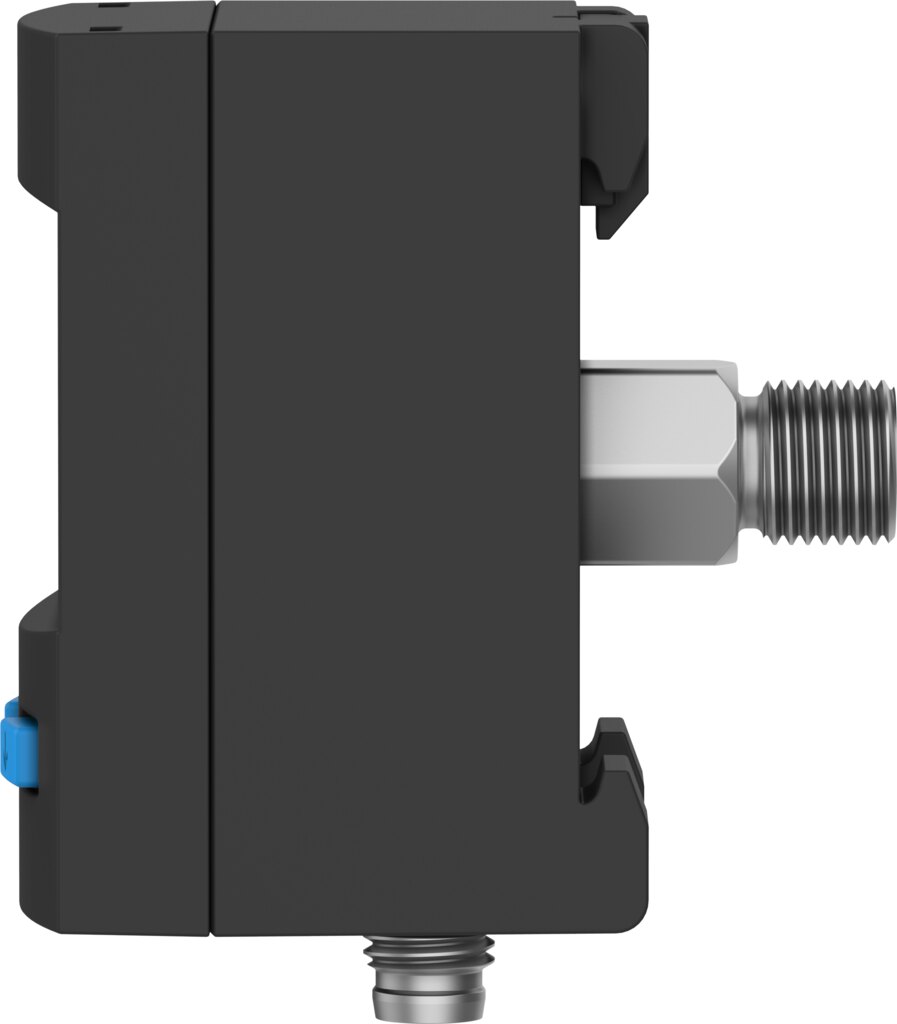

Pressure sensor 0 to 10 bar, 2x PNP/NPN, IO-Link SPAU-P10R-T-R14M-L-PNLK-PNVBA-M12U - Festo 593618

Festo ✓ Original product Brand new

Designed for pressures of 0 to 10 bar, the pressure sensor SPAU-P10R-T-R14M-L-PNLK-PNVBA-M12U monitors relative pressure and switches via 2 switching outputs, PNP/NPN switchable, plus analogue output 0 to 10 V, 4 to 20 mA or 1 to 5 V.

Net
€138.10
excl. VAT
Item FES-593618
Manufacturer no. SPAU-P10R-T-R14M-L-PNLK-PNVBA-M12U
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The Festo pressure sensor SPAU-P10R-T-R14M-L-PNLK-PNVBA-M12U monitors relative pressure in the range 0 to 10 bar and switches via 2 switching outputs, PNP/NPN switchable, plus analogue output 0 to 10 V, 4 to 20 mA or 1 to 5 V.

Benefits

  • Measuring range 0 to 10 bar
  • R1/4 port, electrical: M12x1 plug
  • Analogue output 0 to 10 V, 4 to 20 mA or 1 to 5 V, IO-Link for parameterisation and diagnostics
  • 2 switching outputs, PNP/NPN switchable

Application

The device is used to check system pressure, clamping pressure or leaks on pneumatic installations. Mounting is directly via the thread.

Technical data

TypeSPAU-P10R-T-R14M-L-PNLK-PNVBA-M12U
Pressure measuring range initial value0 bar
Pressure measuring range full scale value10 bar
Type of mountingWith thread
Pneumatic connectionR1/4
Switching output2x PNP or 2x NPN, switchable
Analogue output0 - 10 V, 4 - 20 mA, 1 - 5 V
ProtocolIO-Link
Electrical connection 1, connector systemM12x1
Weight (price list)120 g
Weight0.12 kg
ManufacturerFesto
Hersteller-NrSPAU-P10R-T-R14M-L-PNLK-PNVBA-M12U
Zolltarifnummer90262020
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
Measuring range max. [bar]10

Downloads

Questions about this item

Any other question?

Send us the item number and your question. We clarify technical details directly with the manufacturer and usually reply on the next working day.
