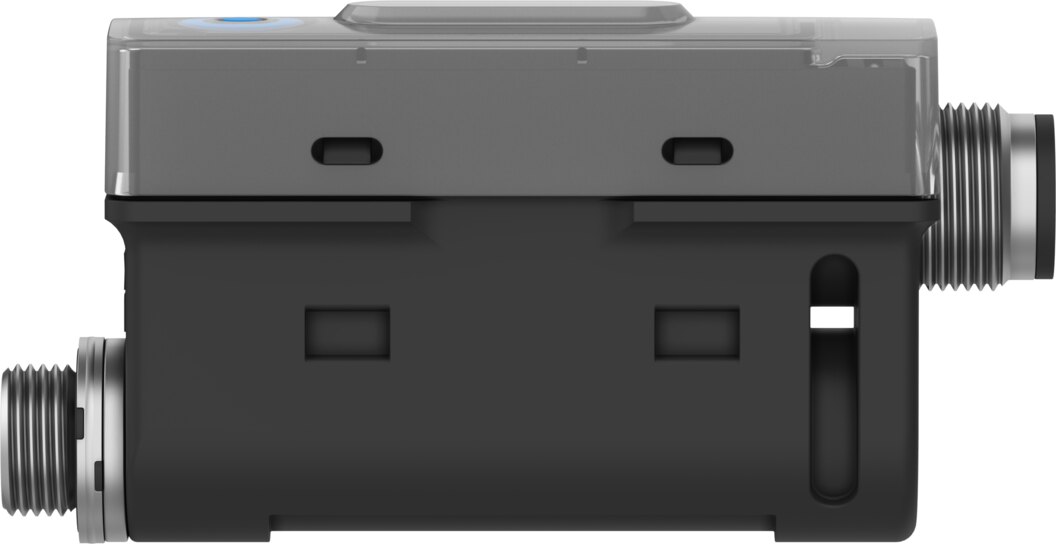

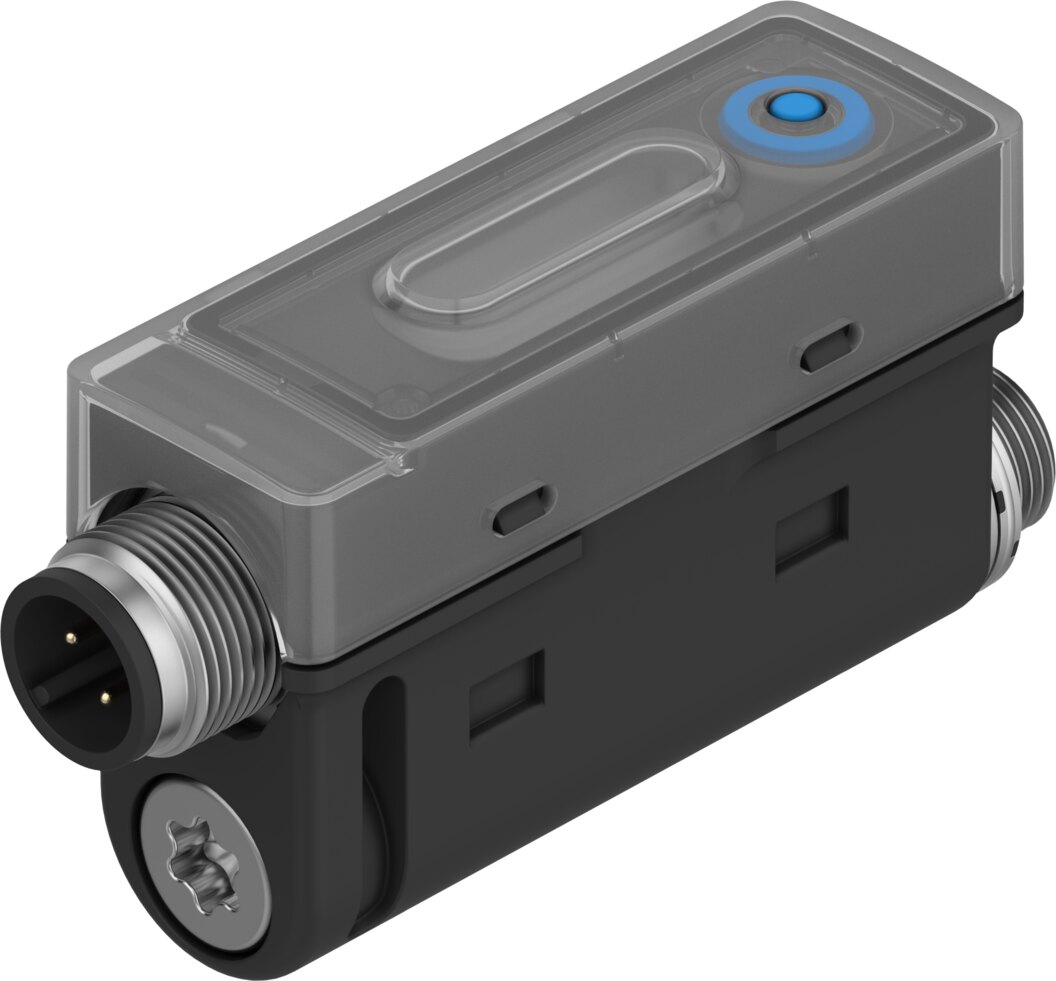

Pressure sensor SPAF-V1R-G18M-N-PNLK-M12 - Festo 8181218
Net
excl. VAT
€117.30
Item
FES-8181218
Manufacturer no.
SPAF-V1R-G18M-N-PNLK-M12
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Technical data
| Approval | RCM |
|---|---|
| CE mark (see declaration of conformity) | To EU EMC Directive, In accordance with EU RoHS Directive |
| UKCA marking (see declaration of conformity) | To UK RoHS instructions |
| Note on materials | RoHS compliant |
| Measured variable | Relative pressure |
| Measurement method | Piezoresistive pressure sensor |
| Start value for pressure measuring range | 0 bar |
| End value for pressure measuring range | -1 bar |
| Overload pressure | 5 bar |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4], Inert gas |
| Note on operating and pilot medium | Ester oil < 0.1mg/m³, according to ISO 8573-1:2010 [-:-:2], Lubricated operation possible |
| Media temperature | 0 ... 50 °C |
| Ambient temperature | 0 ... 50 °C |
| Accuracy in ± % FS | 1.5 %FS |
| Repetition accuracy in ± %FS | 0.3 %FS |
| Temperature coefficient in ± %FS/K | 0.05 %FS/K |
| Switching output | PNP/NPN, switchable |
| Switching function | Window comparator, Threshold value comparator, Threshold value with variable hysteresis |
| Switching element function | NC or NO, switchable |
| Switch-on time | 3 ms |
| Switch-off time | 3 ms |
| Max. output current | 100 mA |
| Voltage drop | 1.6 V |
| Short circuit current rating | Yes |
| Overload protection | Available |
| Protocol | IO-Link® |
| IO-Link, revision ID | V1.1 |
| IO-Link, device profile | Firmware update, Function locator, Function Product URI, Function quantity detection, Smart Sensor - SSP 4.1.1 |
| IO-Link, transmission rate | COM3 |
| IO-Link, SIO-Mode support | Yes |
| IO-Link, port type | Class A |
| IO-Link, process data length output | 0 bit |
| IO-Link, process data length input | 32 bit |
| IO-Link, Process data content IN | Pressure measured value 16 bit MDC, Pressure monitoring 2 bit SSC |
| IO-Link, Service data IN | Temperature 16 bit |
| IO-Link, minimum cycle time | 0.9 ms |
| IO-Link, Data storage required | 500 byte |
| Operational voltage range DC | 15 ... 30 V |
| Reverse polarity protection | For all electrical connections |
| Electrical connection 1, connection type | Plug |
| Electrical connection 1, connector system | M12x1, A-coded to EN 61076-2-101 |
| Electrical connection 1, number of connections/cores | 4 |
| Electrical connection 1, type of mounting | Screw-type lock, Not rotatable |
| Electrical connection 1, compatible type of mounting | Compatible with rotatable screw-type lock |
| Electrical connection 1, connection pattern | 00991168 |
| Material connector housing | High-alloy stainless steel |
| Type of mounting | Either:, With male thread, With accessories |
| Mounting position | Any |
| Pneumatic connection | Male thread G1/8 |
| Product weight | 45 g |
| Material housing | Reinforced PA |
| Material in contact with the medium | Stainless steel, NBR, Reinforced PA |
| Display type | LED indicator |
| Ready status indication | Green LED |
| Switching status indication | Yellow LED |
| Setting options | IO-Link®, Teach-in |
| Protection against tampering | IO-Link® |
| Setting range threshold value | 0 ... 100 % |
| Setting range hysteresis | 0 ... 90 % |
| Degree of protection | IP65 |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Suitability for the production of Li-ion batteries | Suitable for battery production with reduced Cu/Zn/Ni values (F1a) |
| Cleanroom suitability, measured according to ISO 14644-14 | Class 4 according to ISO 14644-1 |
| Manufacturer | Festo |
| Hersteller-Nr | SPAF-V1R-G18M-N-PNLK-M12 |
| EAN | 4052568649982 |
| Zolltarifnummer | 90262020 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
