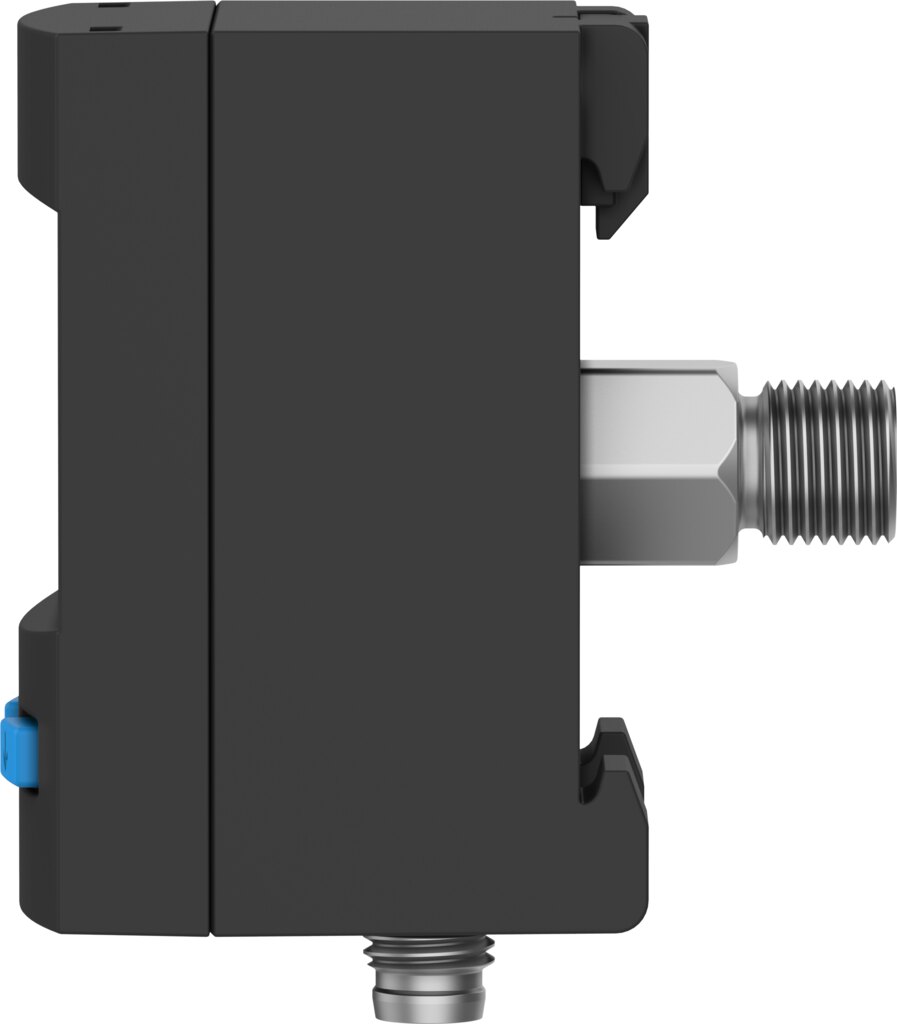

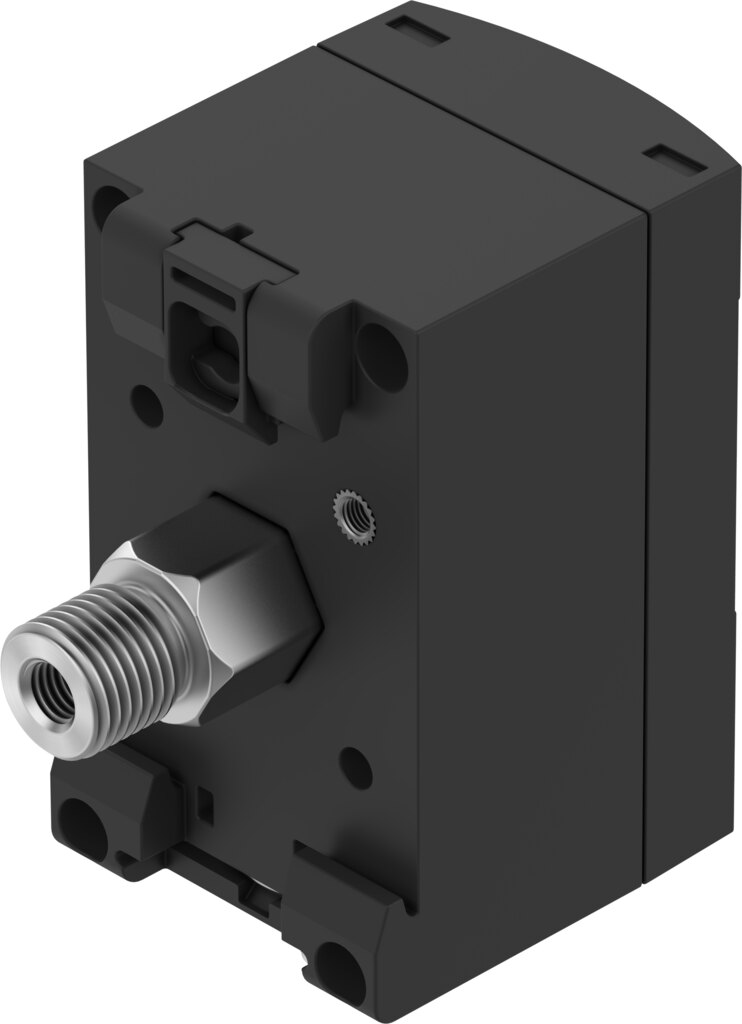

Pressure sensor 0 to 10 bar with IO-Link SPAU-P10R-T-R14M-L-PNLK-PNVBA-M8U - Festo 609970
Within 0 to 10 bar, the pressure sensor SPAU-P10R-T-R14M-L-PNLK-PNVBA-M8U measures relative pressure and signals limit values via two switching outputs, PNP or NPN selectable. The measured value is also available as an analogue signal (0 - 10 V, 4 - 20 mA, 1 - 5 V) and digitally via IO-Link.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The SPAU-P10R-T-R14M-L-PNLK-PNVBA-M8U measures relative pressure from 0 to 10 bar and converts it into switching signals and an analogue signal.
Benefits
- Measuring range 0 to 10 bar, overload pressure 15 bar
- Two switching outputs, PNP or NPN selectable
- Analogue output 0 - 10 V, 4 - 20 mA, 1 - 5 V and IO-Link
- Electrical connection M8x1 plug, 4-pin
Applications
Mounting of the SPAU-P10R-T-R14M-L-PNLK-PNVBA-M8U: with thread. Typical tasks up to 10 bar include monitoring supply and working pressure in compressed air systems.
Technical data
| Type | SPAU-P10R-T-R14M-L-PNLK-PNVBA-M8U |
|---|---|
| Festo part number | 609970 |
| Measured variable | Relative pressure |
| Start value for pressure measuring range | 0 bar |
| End value for pressure measuring range | 10 bar |
| Overload pressure | 15 bar |
| Switching output | 2 x PNP or 2 x NPN, switchable |
| Analogue output | 0 - 10 V, 4 - 20 mA, 1 - 5 V |
| Protocol | IO-Link® |
| Electrical connection 1, connection type | Plug |
| Electrical connection 1, connector system | M8x1, A-coded, to EN 61076-2-104 |
| Electrical connection 1, number of connections/cores | 4 |
| Display type | Illuminated LCD, LED |
| Type of mounting | With thread |
| Weight | 0.12 kg |
| Manufacturer | Festo |
| Hersteller-Nr | SPAU-P10R-T-R14M-L-PNLK-PNVBA-M8U |
| Zolltarifnummer | 90262020 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Measuring range max. [bar] | 10 |
| Series | SPAU |
