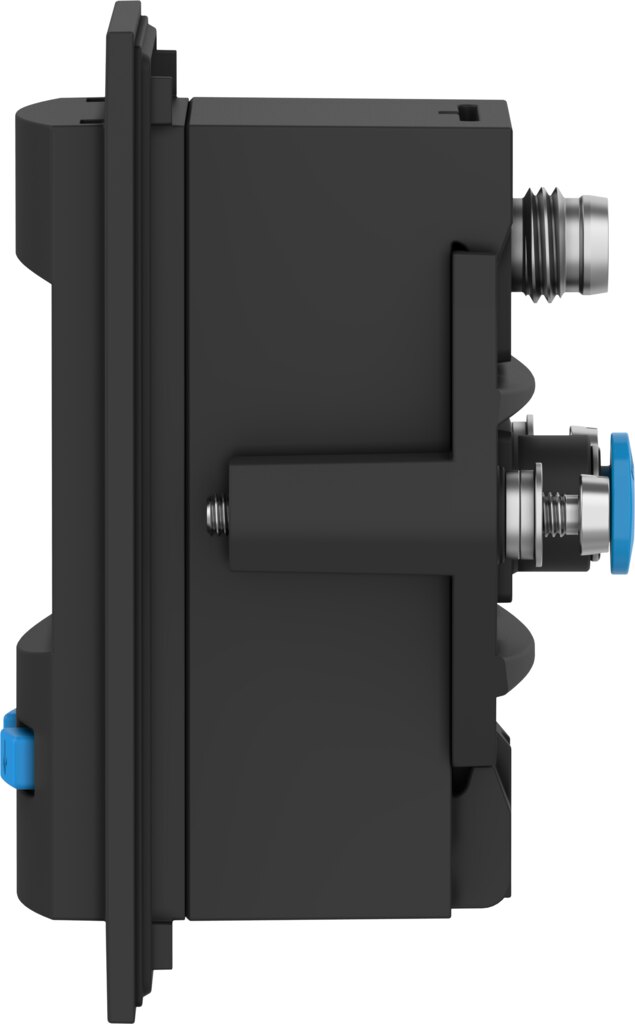

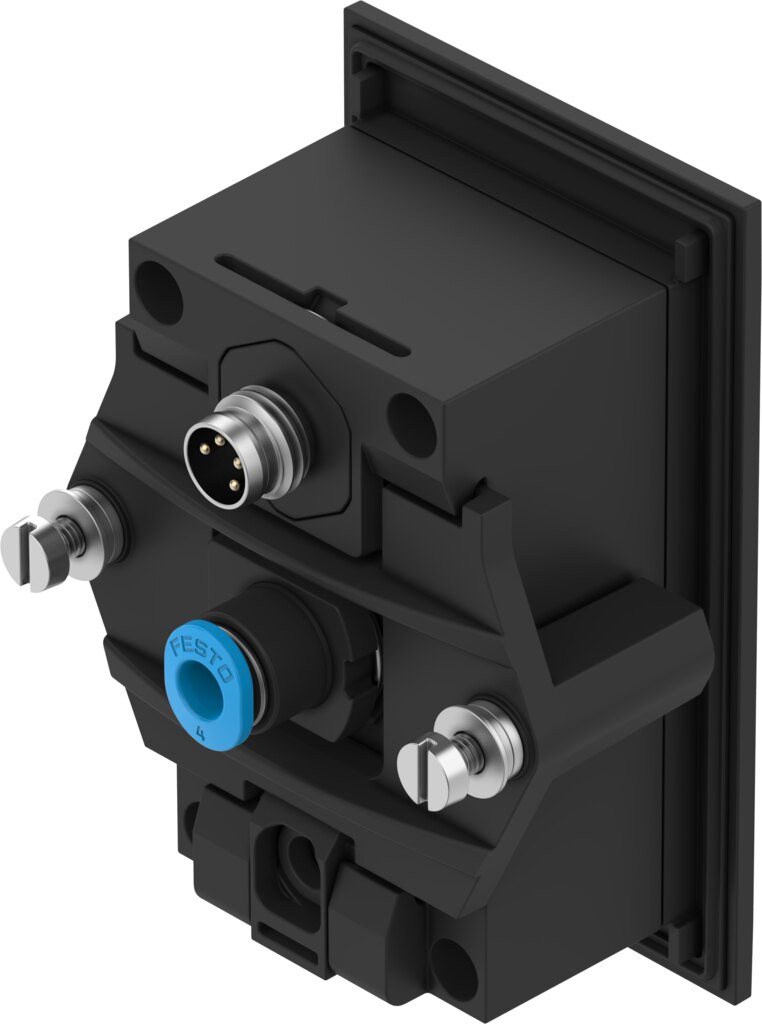

Pressure sensor 0 to 10 bar with IO-Link SPAU-P10R-F-G18M-L-PNLK-PNVBA-M8U - Festo 607280

Festo ✓ Original product Brand new

The Festo pressure sensor SPAU-P10R-F-G18M-L-PNLK-PNVBA-M8U monitors relative pressure within 0 to 10 bar and switches via two switching outputs, PNP or NPN selectable. Besides the analogue output 0 - 10 V, 4 - 20 mA, 1 - 5 V, IO-Link is available as a digital interface.

Net
€145.72
excl. VAT
Item FES-607280
Manufacturer no. SPAU-P10R-F-G18M-L-PNLK-PNVBA-M8U
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

Where relative pressure has to be monitored within 0 to 10 bar, the SPAU-P10R-F-G18M-L-PNLK-PNVBA-M8U provides switching signals and measured value from a single device.

Benefits

  • Measuring range 0 to 10 bar, overload pressure 15 bar
  • Two switching outputs, PNP or NPN selectable
  • Analogue output 0 - 10 V, 4 - 20 mA, 1 - 5 V and IO-Link
  • Electrical connection M8x1 plug, 4-pin

Applications

Mounting of the SPAU-P10R-F-G18M-L-PNLK-PNVBA-M8U: front panel mounting. Typical tasks up to 10 bar include monitoring supply and working pressure in compressed air systems.

Technical data

TypeSPAU-P10R-F-G18M-L-PNLK-PNVBA-M8U
Festo part number607280
Measured variableRelative pressure
Start value for pressure measuring range0 bar
End value for pressure measuring range10 bar
Overload pressure15 bar
Switching output2 x PNP or 2 x NPN, switchable
Analogue output0 - 10 V, 4 - 20 mA, 1 - 5 V
ProtocolIO-Link®
Electrical connection 1, connection typePlug
Electrical connection 1, connector systemM8x1, A-coded, to EN 61076-2-104
Electrical connection 1, number of connections/cores4
Display typeIlluminated LCD, LED
Type of mountingFront panel mounting
Weight0.125 kg
ManufacturerFesto
Hersteller-NrSPAU-P10R-F-G18M-L-PNLK-PNVBA-M8U
Zolltarifnummer90262020
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
Measuring range max. [bar]10
SeriesSPAU
