Diffuse sensor push-pull PNP/NPN range 25 to 120 mm SOOE-KS-L-PNLK-T - Festo 8075669
Scans objects directly and works without a separate reflector. Festo diffuse sensor SOOE-KS-L-PNLK-T comes with operating range 25 to 120 mm, set via IO-Link, potentiometer, teach-in and switching output push-pull, switching function switchable, PNP light switching, NPN dark switching.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Operating range 25 to 120 mm, set via IO-Link, potentiometer, teach-in and switching output push-pull, switching function switchable, PNP light switching, NPN dark switching: these are the key data of the Festo diffuse sensor SOOE-KS-L-PNLK-T. Scans objects directly and works without a separate reflector.
Benefits
- Operating range 25 to 120 mm, set via IO-Link, potentiometer, teach-in
- Switching output push-pull, switching function switchable, PNP light switching, NPN dark switching
- Switching frequency up to 3300 Hz
- Light type laser, red, light spot max. 1 mm at sensing distance 60 mm
- IO-Link Device V 1.1 for parameterisation and diagnostics
- Degree of protection IP65, IP67, IP69K for harsh industrial environments
Applications
Typical tasks are presence checks, counting and positioning on conveyors, in assembly and in packaging. To reorder, the type SOOE-KS-L-PNLK-T or Festo number 8075669 is sufficient.
Technical data
| Feature | Value |
|---|---|
| Type | SOOE-KS-L-PNLK-T |
| Festo part number | 8075669 |
| Design | block design |
| Conforms to standard | EN 60947-5-2 |
| Certification | RCM mark, c UL us - Listed (OL) |
| CE marking (see declaration of conformity) | to EU EMC Directive, to EU RoHS Directive |
| UKCA marking (see declaration of conformity) | to UK RoHS regulations |
| Certificate issuing authority | UL E232949 |
| Note on materials | RoHS compliant |
| Measuring principle | optoelectronic |
| Detection method | laser contrast sensor |
| Type of light | laser, red |
| Max. light spot | 1 mm at sensing distance 60 mm |
| Minimum object diameter | 1 mm |
| Operating range | 25 to 120 mm |
| Ambient temperature | -40 to 60 °C |
| Reference material | standard white 90%, 100x100 mm |
| Switching output | push-pull |
| Switching element function | switchable, PNP light switching, NPN dark switching |
| Max. switching frequency | 3300 Hz |
| Max. output current | 100 mA |
| Voltage drop | 0 to 1.5 V |
| Timer function | via IO-Link |
| Short-circuit protection | pulsed |
| Protocol | IO-Link |
| IO-Link, protocol version | Device V 1.1 |
| IO-Link, communication mode | COM2 (38.4 kBaud) |
| IO-Link, SIO mode support | yes |
| IO-Link, port class | A |
| IO-Link, process data width OUT | 2 bit |
| IO-Link, process data content OUT | 1 bit (emitter disable), 1 bit (Hold) |
| IO-Link, process data width IN | 1 bit |
| IO-Link, process data content IN | 1 bit SSC (Switching Signal) |
| IO-Link, minimum cycle time | 2.3 ms |
| IO-Link, data storage required | 2000 byte |
| Operating voltage range DC | 10 to 30 V |
| Residual ripple | 10 % |
| No-load supply current | 25 mA |
| Reverse polarity protection | for all electrical connections |

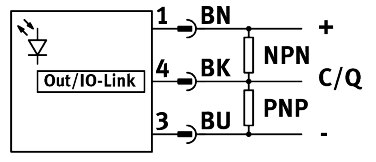

| Electrical connection 1, connection type | plug |
| Electrical connection 1, connection technology | M8x1, A-coded to EN 61076-2-104 |
| Electrical connection 1, number of pins/wires | 3 |
| Electrical connection 1, type of mounting | screw-type lock |
| Material plug contacts | brass, gold-plated |
| Type of mounting | via through-hole for M3 screw |
| Tightening torque | 0.8 Nm |
| Mounting position | any |
| Product weight | 20 g |
| Material housing | PC, PMMA |
| Ready status indication | LED green |
| Switching status indication | LED yellow |
| Setting options | IO-Link, potentiometer, teach-in |
| Degree of protection | IP65, IP67, IP69K |
| Insulation voltage | 500 V |
| Surge immunity | 1 kV |
| Corrosion resistance class CRC | 1 - low corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Laser protection class | 1 |
| Pollution degree | 3 |
| Weight | 0.02 kg |
| Manufacturer | Festo |
| Hersteller-Nr | SOOE-KS-L-PNLK-T |
| EAN | 4052568446413 |
| Zolltarifnummer | 85365019 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Bauform | Blockbauweise |
| Norm | DIN EN 60947-5-2 |
| Protection rating | IP65 |
| Temperaturbereich | -40-60 °C |
| Temperature (max.) | 60 |
