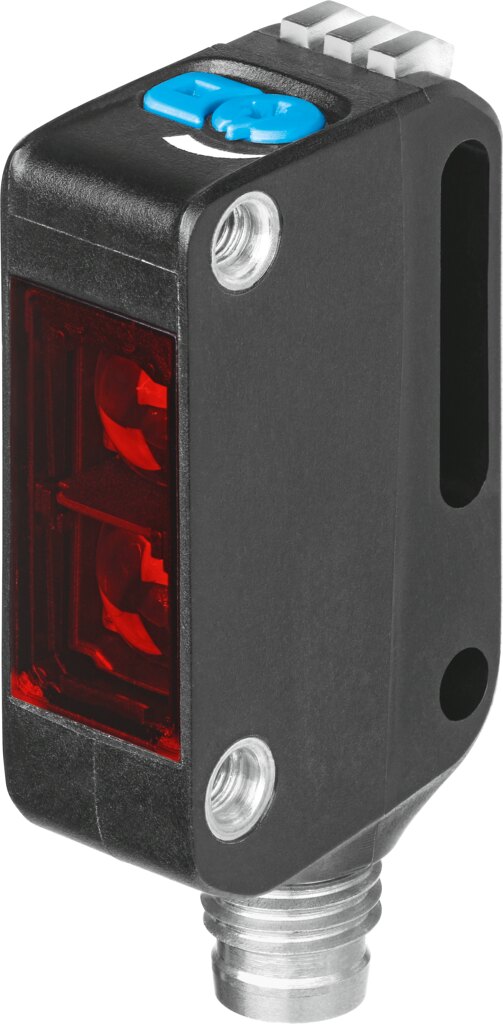

Diffuse sensor SOOD-BS-L-PN-30 - Festo 8075658
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Technical data
| Design | Block design |
|---|---|
| Conforms to standard | EN 60947-5-2 |
| Approval | RCM, c UL us - Recognised (Oil) |
| CE mark (see declaration of conformity) | To EU EMC Directive, In accordance with EU RoHS Directive |
| UKCA marking (see declaration of conformity) | To UK RoHS instructions |
| Certificate issuing authority | UL E232949 |
| Note on materials | RoHS compliant |
| Measuring principle | Optoelectronic |
| Detection method | Diffuse sensor with background clipping |
| Type of light | Laser, Red |
| Max. light spot | 1 mm at a sensing range of 30 mm |
| Min. object diameter | 1 mm |
| Operating distance | 7 ... 30 mm |
| Ambient temperature | -20 ... 60 °C |
| Max. black-white difference | 8 % |
| Reference material | Standard white 90%, 100x100 mm |

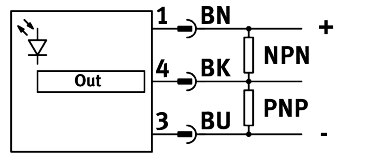

| Switching output | Push-pull |
| Switching element function | PNP light switching, NPN dark switching |
| Hysteresis | 0.3 mm |
| Max. switching frequency | 2000 Hz |
| Max. output current | 50 mA |
| Voltage drop | 0 ... 1.5 V |
| Short circuit current rating | Pulsed |
| Operational voltage range DC | 10 ... 30 V |
| Residual ripple | 10% |
| No-load supply current | 10 mA |
| Reverse polarity protection | For all electrical connections |
| Electrical connection 1, connection type | Cable with plug |
| Electrical connection 1, connector system | M8x1, A-coded, to EN 61076-2-104 |
| Electrical connection 1, number of connections/cores | 3 |
| Electrical connection 1, type of mounting | Screw-type lock with AF9 |
| Electrical connection 1, connection pattern | 00991155 |
| Material electrical contact | Gold-plated brass |
| Cable length | 0.15 m |
| Cable characteristic | Standard |
| Material cable sheath | TPE-U(PUR) |
| Type of mounting | With through-hole |
| Tightening torque | 0.5 Nm |
| Mounting position | Any |
| Product weight | 10 g |
| Material housing | Makrolon®, TPE-U(PU) |
| Ready status indication | Green LED |
| Switching status indication | Yellow LED |
| Degree of protection | IP65, IP67 |
| Insulation voltage | 500 V |
| Immunity to surge | 1 kV |
| Corrosion resistance class CRC | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Laser safety class | 1 |
| Pollution degree | 3 |
| Weight | 0.033 kg |
| Manufacturer | Festo |
| Hersteller-Nr | SOOD-BS-L-PN-30 |
| EAN | 4052568446307 |
| Zolltarifnummer | 85365019 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
