Retro-reflective sensor push-pull PNP/NPN range 0 to 12000 mm SOOE-RS-L-PNLK-T - Festo 8075672
The Festo retro-reflective sensor SOOE-RS-L-PNLK-T comes with operating range 0 to 12000 mm, set via IO-Link, potentiometer, teach-in and switching output push-pull, switching function switchable, PNP dark switching, NPN light switching.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Operating range 0 to 12000 mm, set via IO-Link, potentiometer, teach-in and switching output push-pull, switching function switchable, PNP dark switching, NPN light switching: these are the key data of the Festo retro-reflective sensor SOOE-RS-L-PNLK-T. Works with an opposing reflector and switches as soon as an object interrupts the light beam.
Benefits
- Operating range 0 to 12000 mm, set via IO-Link, potentiometer, teach-in
- Switching output push-pull, switching function switchable, PNP dark switching, NPN light switching
- Switching frequency up to 2000 Hz
- Light type laser, red, light spot max. 30 mm with 12000 mm
- IO-Link Device V 1.1 for parameterisation and diagnostics
- Degree of protection IP65, IP67, IP69K, dust-tight and protected against water jets
Applications
Typical tasks are presence checks, counting and positioning on conveyors, in assembly and in packaging. For replacements, compare the order code SOOE-RS-L-PNLK-T with the installed part.
Technical data
| Feature | Value |
|---|---|
| Type | SOOE-RS-L-PNLK-T |
| Festo part number | 8075672 |
| Design | block design |
| Conforms to standard | EN 60947-5-2 |
| Certification | RCM mark, c UL us - Listed (OL) |
| CE marking (see declaration of conformity) | to EU EMC Directive, to EU RoHS Directive |
| UKCA marking (see declaration of conformity) | to UK RoHS regulations |
| Certificate issuing authority | UL E232949 |
| Note on materials | RoHS compliant |
| Measuring principle | optoelectronic |
| Detection method | retro-reflective sensor |
| Type of light | laser, red |
| Max. light spot | 30 mm with 12000 mm |
| Operating range | 0 to 12000 mm |
| Distance sensor to reflector | 300 to 12000 mm SARA-R-Q50-S, 250 to 10000 mm SARA-R-Q50-MC, 300 to 2000 mm SARA-RF-Q100-S, 250 to 10000 mm SARA-RF-Q100-MC, 300 to 10000 mm SARA-R-Q20-S, 250 to 10000 mm SARA-R-Q20-MC, 250 to 8000 mm SARA-R-Q14-M, 300 to 7500 mm SARA-R-D20-M |
| Ambient temperature | -40 to 60 °C |
| Reference material | reference reflector: SARA-R-Q50-S |
| Switching output | push-pull |
| Switching element function | switchable, PNP dark switching, NPN light switching |
| Max. switching frequency | 2000 Hz |
| Max. output current | 100 mA |
| Voltage drop | 0 to 1.5 V |
| Timer function | via IO-Link |
| Short-circuit protection | pulsed |
| Protocol | IO-Link |
| IO-Link, protocol version | Device V 1.1 |
| IO-Link, communication mode | COM2 (38.4 kBaud) |
| IO-Link, SIO mode support | yes |
| IO-Link, port class | A |
| IO-Link, process data width OUT | 2 bit |
| IO-Link, process data content OUT | 1 bit (emitter disable), 1 bit (Hold) |
| IO-Link, process data width IN | 2 bit |
| IO-Link, process data content IN | 1 bit (Stability Alarm), 1 bit SSC (Switching Signal) |
| IO-Link, minimum cycle time | 2.3 ms |
| IO-Link, data storage required | 2000 byte |
| Operating voltage range DC | 10 to 30 V |
| Residual ripple | 10 % |
| No-load supply current | 25 mA |
| Reverse polarity protection | for all electrical connections |

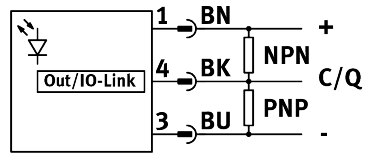

| Electrical connection 1, connection type | plug |
| Electrical connection 1, connection technology | M8x1, A-coded to EN 61076-2-104 |
| Electrical connection 1, number of pins/wires | 3 |
| Electrical connection 1, type of mounting | screw-type lock |
| Material plug contacts | brass, gold-plated |
| Type of mounting | via through-hole for M3 screw |
| Tightening torque | 0.8 Nm |
| Mounting position | any |
| Product weight | 10 g |
| Material housing | PC, PMMA |
| Ready status indication | LED green |
| Switching status indication | LED yellow |
| Function reserve indication | LED yellow, flashing |
| Setting options | IO-Link, potentiometer, teach-in |
| Degree of protection | IP65, IP67, IP69K |
| Insulation voltage | 500 V |
| Surge immunity | 1 kV |
| Corrosion resistance class CRC | 1 - low corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Laser protection class | 1 |
| Pollution degree | 3 |
| Weight | 0.02 kg |
| Manufacturer | Festo |
| Hersteller-Nr | SOOE-RS-L-PNLK-T |
| EAN | 4052568446444 |
| Zolltarifnummer | 85365019 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Bauform | Blockbauweise |
| Norm | DIN EN 60947-5-2 |
| Protection rating | IP65 |
| Temperaturbereich | -40-60 °C |
| Temperature (max.) | 60 |
