Detects objects by the light they reflect, no reflector needed. Background suppression ignores interference behind the object. The Festo diffuse sensor SOOD-BS-R-PN-80 comes with operating range 15 to 80 mm and switching output push-pull, switching function PNP light switching, NPN dark switching.

Net
€134.81
excl. VAT
Item FES-8075655
Manufacturer no. SOOD-BS-R-PN-80
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

Operating range 15 to 80 mm and switching output push-pull, switching function PNP light switching, NPN dark switching: these are the key data of the Festo diffuse sensor SOOD-BS-R-PN-80. Detects objects by the light they reflect, no reflector needed. Background suppression ignores interference behind the object.

Benefits

  • Operating range 15 to 80 mm
  • Switching output push-pull, switching function PNP light switching, NPN dark switching
  • Switching frequency up to 800 Hz
  • Light type red, LED, light spot max. 5 mm at sensing distance 80 mm
  • Degree of protection IP65, IP67, dust-tight and protected against water jets

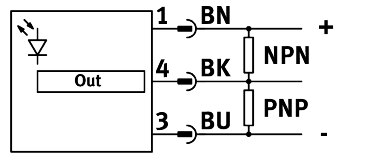

  • Electrical connection M8x1, A-coded to EN 61076-2-104

Applications

Typical tasks are presence checks, counting and positioning on conveyors, in assembly and in packaging. For replacements, compare the order code SOOD-BS-R-PN-80 with the installed part.

Technical data

FeatureValue
TypeSOOD-BS-R-PN-80
Festo part number8075655
Designblock design
Conforms to standardEN 60947-5-2
CertificationRCM mark, c UL us - Recognized (OL)
CE marking (see declaration of conformity)to EU EMC Directive, to EU RoHS Directive
UKCA marking (see declaration of conformity)to UK RoHS regulations
Certificate issuing authorityUL E232949
Note on materialsRoHS compliant
Measuring principleoptoelectronic
Detection methoddiffuse sensor with background suppression
Type of lightred, LED
Max. light spot5 mm at sensing distance 80 mm
Minimum object diameter5 mm
Operating range15 to 80 mm
Ambient temperature-25 to 60 °C
Max. black-white difference20 %
Reference materialstandard white 90%, 100x100 mm
Switching outputpush-pull
Switching element functionPNP light switching, NPN dark switching
Hysteresis2.4 mm
Max. switching frequency800 Hz
Max. output current50 mA
Voltage drop0 to 1.5 V
Short-circuit protectionpulsed
Operating voltage range DC10 to 30 V
Residual ripple10 %
No-load supply current10 mA
Reverse polarity protectionfor all electrical connections
Electrical connection 1, connection typecable with plug
Electrical connection 1, connection technologyM8x1, A-coded to EN 61076-2-104
Electrical connection 1, number of pins/wires3
Electrical connection 1, type of mountingscrew-type lock with AF 9, rotatable
Electrical connection 1, compatible type of mountingcompatible with rotatable and non-rotatable screw-type lock
Material plug contactsbrass, gold-plated
Cable length0.15 m
Cable characteristicsstandard
Material cable sheathTPE-U(PUR)
Type of mountingwith through-holes
Tightening torque0.5 Nm
Mounting positionany
Product weight10 g
Material housingPC, TPE-U(PU)
Ready status indicationLED green
Switching status indicationLED yellow
Degree of protectionIP65, IP67
Insulation voltage500 V
Surge immunity1 kV
Corrosion resistance class CRC1 - low corrosion stress
LABS (PWIS) conformityVDMA24364 zone III
Pollution degree3
Weight0.02 kg
ManufacturerFesto
Hersteller-NrSOOD-BS-R-PN-80
EAN4052568446277
Zolltarifnummer85365019
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
BauformBlockbauweise
NormDIN EN 60947-5-2
Protection ratingIP65
Temperature (max.)60
